MACX MCR-EX-RTD-I-SP

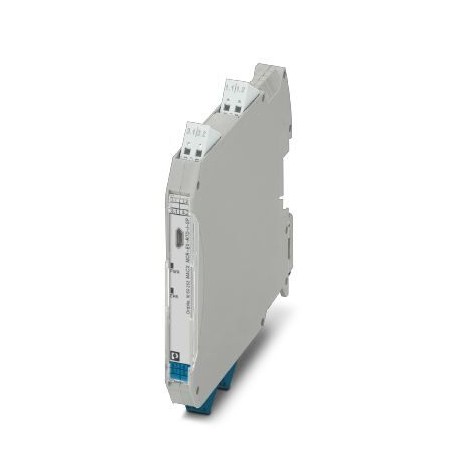

MACX MCR-EX-RTD-I-SP 1050252 PHOENIX CONTACT Ex i temperature transducer: converts signals from resistance t..
$0.00USD
4184 kwenye hisa
Vipimo Muhimu
GTIN:4055626665160
Ufunguo wa kuagiza:1050252
(Data ya EMC):IIC
Ukurasa wa katalogi:Page 146 (C-5-2019)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626665160 |
| Ufunguo wa kuagiza | 1050252 |
| (Data ya EMC) | IIC |
| Ukurasa wa katalogi | Page 146 (C-5-2019) |
| Kina (Dokezo) | 114.5 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 12.5 mm |
| (Data ya kuingiza) | 4 mA ... 20 mA (SIL) |
| Urefu (Dokezo) | 116 mm |
| ATEX (data ya EMC) | I (M1) [Ex ia Ma] I |
| Kundi (Jumla) | IIC |
| Kikundi (data ya EMC) | IIC/IIB/IIA |
| IECEx (data ya EMC) | [Ex ia Ma] I |
| UNSPSC 11 (ETIM) | 39121008 |
| Nchi ya asili | DE (Germany) |
| ETIM 2.0 (eCl@ss) | EC001446 |
| ETIM 3.0 (eCl@ss) | EC001446 |
| ETIM 4.0 (eCl@ss) | EC001446 |
| ETIM 5.0 (eCl@ss) | EC001446 |
| ETIM 6.0 (eCl@ss) | EC002919 |
| ETIM 7.0 (eCl@ss) | EC002919 |
| (Data ya muunganisho) | Ex ec ic IIC T4 Gc |
| UNSPSC 13.2 (ETIM) | 41112105 |
| UNSPSC 18.0 (ETIM) | 41112105 |
| UNSPSC 19.0 (ETIM) | 41112105 |
| UNSPSC 20.0 (ETIM) | 41112105 |
| UNSPSC 21.0 (ETIM) | 41112105 |
| UNSPSC 6.01 (ETIM) | 30211506 |
| UNSPSC 12.01 (ETIM) | 39121008 |
| Nambari ya ushuru maalum | 85437090 |
| UNSPSC 7.0901 (ETIM) | 39121008 |
| DNV GL-EMC (data ya EMC) | B |
| SIL (data ya muunganisho) | 2 |
| ATEX (data ya muunganisho) | I (M1) [Ex ia Ma] I |
| Ulinganifu (data ya EMC) | CE-compliant, additionally EN 61326 |
| Uteuzi (data ya EMC) | Conducted interferences |
| Rangi (Data ya muunganisho) | gray |
| IECEx (Data ya muunganisho) | [Ex ia Ma] I |
| Input power Pi (General) | 550 mW |
| Uteuzi (Data ya usalama) | Conducted interferences |
| Utoaji wa kelele (data ya EMC) | EN 61000-6-4 |
| DNV GL-Unyevu (data ya EMC) | B |
| Input current Ii (General) | 100 mA |
| Input voltage Ui (General) | 7 V |
| Matokeo ya ishara (Data ya kuingiza) | Current output |
| DNV GL-Enclosure (data ya EMC) | Required protection according to the Rules shall be provided upon installation on board |
| Mtetemo wa DNV GL (data ya EMC) | A |
| Kinga ya kelele (Vipimo) | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 4.0 (Uainishaji) | 27210120 |
| eCl@ss 4.1 (Uainishaji) | 27210120 |
| eCl@ss 5.0 (Uainishaji) | 27210120 |
| eCl@ss 5.1 (Uainishaji) | 27210120 |
| eCl@ss 6.0 (Uainishaji) | 27210120 |
| eCl@ss 7.0 (Uainishaji) | 27210120 |
| eCl@ss 8.0 (Uainishaji) | 27200206 |
| eCl@ss 9.0 (Uainishaji) | 27210129 |
| Ulinganifu (Data ya muunganisho) | CE-compliant, additionally EN 61326 |
| DNV GL-Joto (data ya EMC) | B |
| Uteuzi (Data ya muunganisho) | Input/power supply |
| Urefu wa juu zaidi (Vipimo) | ≤ 2000 m |
| Nguvu ya juu zaidi ya kutoa Po (Jumla) | 350 mW |
| Matumizi ya nguvu (Data ya matokeo) | ≤ 1 W |
| Usambazaji wa nguvu (Data ya matokeo) | ≤ 0.76 W |
| Urefu wa kukatwa (Ugavi wa umeme) | 8 mm |
| Muda wa mpangilio (Data ya muunganisho) | ± 5 % |
| Sufuri ya mpangilio (Data ya muunganisho) | ± 5 % |
| Njia ya muunganisho (Usambazaji wa umeme) | Push-in connection |
| Kiwango cha juu cha mkondo wa pato Io (Jumla) | 400 mA |
| Volti ya juu zaidi ya kutoa Uo (Jumla) | 3.5 V |
| Viwango/kanuni (data ya EMC) | EN 61000-4-6 |
| Onyesho la hali (Data ya muunganisho) | Green LED (supply voltage, PWR) |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Idadi ya njia (Data ya muunganisho) | 1 |
| Ishara ya sasa ya kutoa (Data ya kuingiza) | 0 mA ... 20 mA |
| Nyenzo za makazi (Data ya muunganisho) | PA 6.6-FR |
| Kiwango cha volteji ya usambazaji (Data ya matokeo) | 19.2 V DC ... 30 V DC (24 V DC -20%...+25%) |
| Viwango/kanuni (Data ya usalama) | EN 61000-4-6 |
| Volti ya usambazaji wa kawaida (Data ya matokeo) | 24 V DC |
| Ripu ya kutoa (mkondo) (Data ya kuingiza) | < 15 µAPP |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Upinzani wa kebo (Hali ya mazingira) | ≤ 50 Ω per cable |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Inaweza kusanidiwa/kupangwa (Data ya kuingiza) | Yes |
| Kutengwa kwa umeme (Data ya muunganisho) | 375 V (Peak value in accordance with EN 60079-11) |
| Max. external capacitance Co (General) | 2 µF |
| Kiwango cha juu cha upitishaji wa nje Lo (Jumla) | 20 µH |
| Uwezo wa juu zaidi wa ndani Ci (Jumla) | 47 µF |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Kiwango cha ishara ya kuingiza (Hali za mazingira) | 0 Ω ... 50 kΩ |
| Utoaji wa kuingiliwa (Data ya muunganisho) | EN 61000-6-4 |
| Utangamano wa sumaku-umeme (data ya EMC) | Conformance with EMC directive |
| Kupima muda wa masafa (Hali za mazingira) | ≥ 50 K |
| Mkondo wa kuingiza wa kitambuzi (Hali za mazingira) | 10 µA ... 210 µA (up to 2 x 210 µA for 3-conductor) |
| Jibu la hatua (0–99%) (Data ya muunganisho) | typ. 1 s |
| Conductor cross section AWG (Power supply) | 24 ... 16 |
| Volti ya juu inayohusiana na usalama Um (Jumla) | 253 V AC (125 V DC, Zone 2: 3.1, 3.2 = 30 V DC) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 70 °C (Any mounting position) |
| Conductor cross section solid (Power supply) | 0.2 mm² ... 1.5 mm² |
| Pakia/toa pakia cha sasa (Data ya kuingiza) | ≤ 600 Ω |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 95 % (non-condensing) |
| Hitilafu ya upitishaji, kawaida (Data ya muunganisho) | 0.1 % (e.g. for Pt 100, 300 K span, 4 ... 20 mA) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible (Power supply) | 0.2 mm² ... 1.5 mm² |
| Utangamano wa sumaku-umeme (Data ya muunganisho) | Conformance with EMC directive |
| Kiwango cha kupimia halijoto (Hali ya mazingira) | -200 °C ... 850 °C (Range depending on the sensor type) |
| Kipimo cha halijoto, cha kawaida (Data ya muunganisho) | 0.01 %/K |
| Kiwango cha upinzani wa potentiomita (Hali za mazingira) | 0 Ω ... 50 kΩ |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 80 °C |
| Tabia iwapo kutatokea hitilafu ya kitambuzi (Data ya kuingiza) | As per NE 43 or can be freely defined |
| Aina za vitambuzi (RTD) zinazoweza kutumika (Hali za mazingira) | Sensors (2-, 3-, 4-wire) |
| Mkengeuko wa kawaida kutoka kwa thamani ya mwisho ya masafa ya kupimia (Data ya usalama) | 1 % |
Maelezo ya Bidhaa
Intrinsically Safe Temperature Converter: Converts the signals from the thermoresistors installed in the Ex zone and transmits a 0/4-20 mA signal to a load in the safe area. Free programmable, 3-way s
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
