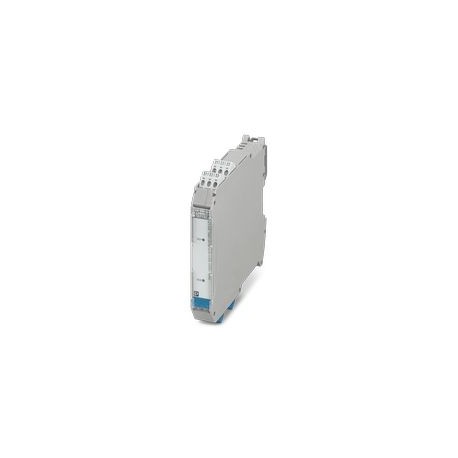

MACX MCR-EX-AP-2REL-2DI-LP
MACX MCR-EX-AP-2REL-2DI-LP 1292331 PHOENIX CONTACT The relay module separates the Ex i and non-Ex i control ..
$0.00USD
4227 kwenye hisa
Vipimo Muhimu
:< 17 mA (24 V ... 31.2 V)
Kina:113.7 mm
Upana:17.5 mm
Urefu:≤ 2000 m
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| < 17 mA (24 V ... 31.2 V) | |
| Kina | 113.7 mm |
| Upana | 17.5 mm |
| Urefu | ≤ 2000 m |
| Imetiwa alama | II (1) G [Ex ia Ga] IIC |
| Jumla | The installation conditions influence the ambient temperature.Please note the operating instructions. |
| Aina ya Bidhaa | Relay module |
| Uzi wa skrubu | M3 |
| Volti ya majaribio | 350 V (50 Hz, 60 sec) |
| Familia ya Bidhaa | MACX Analog |
| Nyenzo ya ganda | Polyamide (PA 6.6) |
| Volti ya usambazaji | Loop-powered, no external power required |
| Aina ya muunganisho | Screw connection |
| Kina NS 35/7.5 | 114.5 mm (fitted on DIN rail NS 35/7.5 according to EN 60715) |
| Mpango wa Vipimo | |
| Nguvu Iliyotoweka | ≤ 0.4 W |
| Ingizo la Sasa II | 4 A |
| Volti ya kuingiza Ui | 45 V AC |
| Kielezo cha Ulinzi | IP20 (Terminals) |
| Aina ya ufungaji | NS 35/15, NS 35/7.5 |
| Unyonyaji wa sasa | < 25 mA (12 V) |
| Idadi ya njia | 2 |
| Maelezo ya Tiketi | Control input, not intrinsically safe |
| Utengano wa Galvaniki | 4-Way Separation |
| Masafa ya kubadili | ≤ 15 Hz |
| Volti ya Ishara ya Kuingiza | 12 V ... 31.2 V (Switching Signal) |
| Sehemu ya Kondakta wa AWG | (Converted according to IEC) |
| Usakinishaji wa Zamani (EPL) | Gc |
| Nafasi ya kupachika | vertical, horizontal |
| Muda wa Kawaida wa Kuzima | ≤ 10 ms |
| Aina ya Kubadilisha Mawasiliano | 1 switched contact per channel |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Muda wa Kawaida wa Muunganisho | ≤ 10 ms |
| Viwango/Vipimo | IEC/EN 60079-11 |
| Maelezo ya matokeo | Intrinsic safety |
| Urefu wa kuondoa joto | 7 mm |
| Uwezo wa Ndani wa Juu Ci | despicable |
| Kiwango cha Juu cha Kubadilisha Volti | 45 V DC (0.25 A) |
| Volti ya usalama ya juu zaidi Um | 253 V AC |
| Ukubwa wa Voltage ya Insulation | 375 VPP |
| Sehemu ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Kiwango cha Chini cha Uanzishaji wa Volti | 1 V (1 mA) |
| Kiwango cha juu cha upenyezaji wa ndani. Li | despicable |
| Halijoto ya Mazingira (Huduma) | -20 °C ... 70 °C (Individual Equipment: Discretionary Mounting Position) |
| Utangamano wa sumakuumeme | Testing according to the following standards and requirements: EN 61326-1 for use in the industrial field, NAMUR NE 21 |
| Saketi salama za ndani (EPL) | Ga |
| Unyevu unaoruhusiwa wa hewa (huduma) | ≤ 95% (non-condensing) |
| Darasa la kuwaka kulingana na UL 94 | V0 |
| Halijoto ya Mazingira (Uhifadhi/Usafiri) | -40 °C ... 80 °C |
