M23-7ES198A80DN

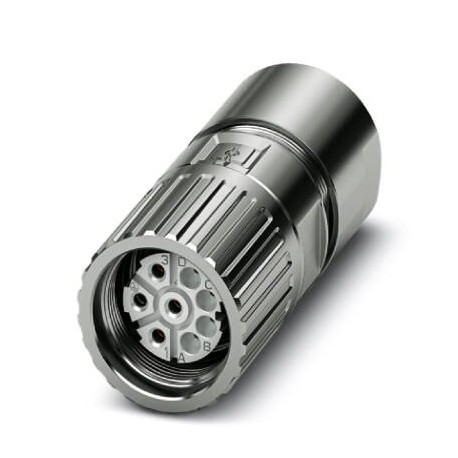

M23-7ES198A80DN 1628819 PHOENIX CONTACT Cable connector, M23 PRO, straight short, shielded: yes, Screw locki..
$0.00USD
3332 kwenye hisa
Vipimo Muhimu
GTIN:4055626617558
Ufunguo wa kuagiza:1628819
(Michoro):
Ukurasa wa katalogi:Page 146 (C-2-2019)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626617558 |
| Ufunguo wa kuagiza | 1628819 |
| (Michoro) | |
| Ukurasa wa katalogi | Page 146 (C-2-2019) |
| Kitengo cha kufungasha | 1 pc |
| Dokezo (Michoro) | Order information: Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC002635 |
| ETIM 6.0 (eCl@ss) | EC002061 |
| (Data ya muhuri wa kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Nambari ya ushuru maalum | 85366990 |
| Application (Drawings) | Power |
| Additional text (Drawings) | for max. connection cross section |
| Type of contacts (Drawings) | Socket |
| RoHS ya China (data ya muhuri wa kebo) | Environmentally Friendly Use Period = 50 |
| eCl@ss 8.0 (Uainishaji) | 27440102 |
| eCl@ss 9.0 (Uainishaji) | 27440103 |
| Kipenyo cha kebo (Data ya nyumba) | 5.5 mm ... 15 mm (Universal gasket) |
| Insulator material (Drawings) | PA 6.6 |
| Kiwango cha uchafuzi (Michoro) | 3 |
| Installation height (Drawings) | 2000 m |
| Idadi ya nafasi (Michoro) | 8 |
| Rated surge voltage (Drawings) | 4 kV |
| Kategoria ya volteji kupita kiasi (Michoro) | III |
| Nyenzo za kuziba (Data ya nyumba) | FKM |
| Contact connection method (Drawings) | Crimp connection |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 140.000 g |
| Rated voltage of power contact (Drawings) | 630 V |
| Aina ya uzi (Data ya mwili wa kuhami joto) | M23 |
| Rated voltage of signal contact (Drawings) | 250 V |
| Rated current for power contacts (Drawings) | 30 A |
| Contact diameter of power contacts (Drawings) | 2 mm |
| Aina ya kufuli (Data ya mwili wa kuhami joto) | Screw locking |
| Contact diameter of signal contacts (Drawings) | 1 mm |
| Nyenzo za makazi (Takwimu za mwili wa kuhami joto) | GD-Zn |
| Litz wire cross section of power contacts max. (Drawings) | 4 mm² |
| Litz wire cross section of power contacts min. (Drawings) | 0.25 mm² |
| Rated current of each signal contact at 25°C (Drawings) | 9 A |
| Litz wire cross section of signal contacts max. (Drawings) | 1 mm² |
| Litz wire cross section of signal contacts min. (Drawings) | 0.06 mm² |
| Kiwango cha ulinzi (wakati kimeunganishwa) (Data ya mwili wa kuhami joto) | IP66 / IP68 (2m / 24h) / IP69K |
| Dimensional drawingTechnical drawings can be found under Downloads (Drawings) |
Maelezo ya Bidhaa
M23, Cable connector, M23 PRO, Short straight, shielded: yes, Screw lock, No. of poles: 4+3+PE, contact type: Female, Crimped connection, cable diameter range: 5.5 mm ... 15 mm, The item does not cont
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingTechnical drawings can be found under Downloads
