LS45P51D11

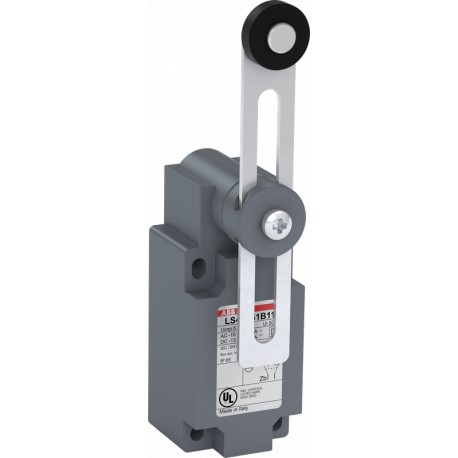

LS45P51D11 1SBV012451R1411 ABB LS45P51D11 Limit Switch
$0.00USD
4704 kwenye hisa
Vipimo Muhimu
:acc. to IEC 60947-5-1Min. 0.06 m/s
ETIM 6:EC000030 - End switch
ETIM 7:EC000030 - End switch
ETIM 8:EC000030 - End switch
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| acc. to IEC 60947-5-1Min. 0.06 m/s | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| UNSPSC | 39122213 |
| Darasa la mtandaoni | V11.1 : 27270601 |
| Thamani ya B10d | Operations 50 Millions |
| Hali ya RoHS | Following EU Directive 2011/65/EU |
| Aina ya Kiashirio | adjustable Ø 22 mm polyamide roller lever |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Kasi ya Utendaji | acc. to IEC 60947-5-1Max. 1.5 m/s |
| Cheti cha CQC | CQC2004010305127663 |
| Cheti cha cUL | 9AKK107991A7379 |
| Torque ya Utendaji | acc. to IEC 60947-5-1Min. 0.15 N·m |
| Taarifa za RoHS | 1SBD251097E1000 |
| Kuashiria Kituo | according to EN 50013 |
| Ushuru wa Rubani UL/CSA | A600 |
| Upana Halisi wa Bidhaa | 41 mm |
| Tamko la REACH | 1SBD251097E1000 |
| Kuhimili Hali ya Hewa | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 |
| Urefu Halisi wa Bidhaa | 135 mm |
| Uzito Halisi wa Bidhaa | 0.164 kg |
| Uwezo wa Kuunganisha | Bar AWG 20 ... AWG 14 mm² |
| Kifurushi cha Kiwango cha 1 EAN | 3471522611970 |
| Masafa Yaliyokadiriwa (f) | Supply Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529 IP65 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Uimara wa Kimitambo | 0 cycle |
| Vitengo vya Kiwango cha 1 cha Kifurushi | box 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 45 mm |
| Kiasi cha Chini cha Agizo | 10 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 140 mm |
| Halijoto ya Hewa ya Mazingira | Operation -25 ... +70 °C |
| Marekebisho ya Kichwa cha Angular | adjustable head every 90° |
| Mwendo Utakaogunduliwa | 30° Cam Translation Movement |
| Marekebisho ya Lever ya Angular | 9° in 9° |
| Maelekezo na Miongozo | 1SBC141157C0202 |
| Upinzani dhidi ya Mitetemo | No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz |
| Kina Halisi cha Bidhaa / Urefu | 62 mm |
| Upinzani Kati ya Mawasiliano | 25 E45 |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 0.185 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| Azimio la Uzingatiaji - CE | 1SBD250883U1000 |
| Kuwaka Kulingana na UL94 | V-0 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 70 mm |
| Azimio la Uzingatiaji - CCC | 2020980305001785 |
| Idadi ya Mawasiliano Saidizi NC | 1 |
| Idadi ya Mawasiliano Saidizi HAPANA | 1 |
| Azimio la Uzingatiaji - UKCA | 1SBD250886U1000 |
| Vifaa vya Kulinda vya Mzunguko Mfupi | gG Type Fuses 10 A |
| Karatasi ya Data, Taarifa za Kiufundi | 1SBC141157C0202 |
| Kuweka kwa Skurubu (hazijatolewa) | 2 or 4 x M5 screws |
| Nambari ya Kategoria ya Chembechembe ya IDEA (IGCC) | 5202 >> Limit switch |
| Mkondo wa Uendeshaji Uliokadiriwa AC-15 (Yaani) | (230 V AC) 3.1 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-13 (Yaani) | (24 V) 6 A |
| Masafa ya Juu ya Kubadilisha Umeme | 3600 cycles per hour |
| Idadi na Aina ya Tezi za Cable za Chini | 1/2 NPT cable gland |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 6 kV |
| Upinzani dhidi ya mshtuko kwa IEC 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s² |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mkondo wa Kawaida wa Joto wa Hewa Isiyolipishwa (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Kinga ya Mshtuko wa Umeme kwa IEC 536 | Double insulation - Class II |
| Ufunguzi Chanya wa Uendeshaji wa Mawasiliano ya NC | No |
| Fomu ya Kipengele cha Mawasiliano (imeidhinishwa na IEC 60947-5-1) | Zb |
| Uthabiti (Umepimwa zaidi ya Operesheni Milioni 1) | 0.1 mm |
| Kuunganisha Vituo (vinavyowasilishwa katika nafasi wazi) | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| Aina ya Kitendo cha Kipengele cha Mguso (kinakubaliwa na IEC 60947-5-1) | Non-overlapping slow action contacts |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
