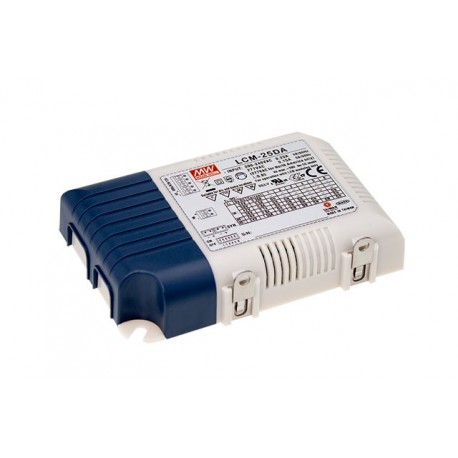

LCM-25DA
LCM-25DA MEANWELL AC-DC Multi-Stage Output LED driver Active PFC, Output 0.35A/0.6A/0.7A/0.9A/1.05A, DALI an..
$0.00USD
3662 kwenye hisa
Vipimo Muhimu
Jina:LCM-25DA
Nguvu:18,9 W
Jimbo:Recommended Model
Hisa:Yes
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | LCM-25DA |
| Nguvu | 18,9 W |
| Jimbo | Recommended Model |
| Hisa | Yes |
| Muundo | Box |
| Mfululizo | LCM-25DA |
| Kufifia | DALI, Push-button |
| Idhini | CCC, CE, ENEC, UL |
| Nguvu (W) | 25,20 |
| Fomu ndogo | IP20 |
| Upana (mm) | 68.00 |
| Urefu (mm) | 23.00 |
| Kiwango cha juu cha kuingiza AC | 277,00 |
| Kiwango cha chini cha kuingiza AC | 180,00 |
| Maombi | Lighting |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | LED Driver |
| Kutengwa (V) | 3.750,00 |
| Mkondo wa kutoa | 350mA |
| Nguvu ya Kilele (W) | 25.2 |
| Kiunganishi cha kuingiza data | Quick Connector |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 105.00 |
| Maelezo Marefu | LED driver dimmable..Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP20.Input range180-277Vca47-63Hz.Current output selectable by micro-switch350, 500, 600, 700, 900 or 1050mA.Output current350mA500mA600mA700mA900mA1050mAPower18,9 W25,2 W25,2 W25,2 W25,2 W25,2 WRange of Output Voltage6-54Vcc6-50Vcc6-42Vcc6-36Vcc6-28Vcc6-24vdcEfficiency typical:86%.Regulation DALI0% to 100% of the intensity of output or push-button (PUSH-DALI). Certificate to DALI.We can regulate by push-button by connecting the input line cord to a push-button normally open and then to the Push (up-regulation in primary). You can connect any number of drivers LCM-GIVES the same push-button.Synchronization: we can sync up10 unitsvia the wires LCM-xxx-SYNC25 in such a way that by regulating a source other do the same regulation without the need to be connected to the bus DALI or push-button. We also make sure that if we use dimming by push button fonts are not desincronizarán.Input class II without grounding.Factor corrector, power>0.94to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-30ºCup+60ºC.Dimensions (Length x Width x Height):105 x 68 x 23mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.Be sure to adjust the output current desired using the selector current. For more information please see the datasheet in the section attachments.With plastic housing, designed for applications of LED lighting and architectural. Suitable for indoor lighting, offices, LED panels.Low ripple current, no flicker (flicker-free).Compatible with any system DALI. |
| Kiunganishi cha kutoa | Quick Connector |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
| Mkondo wa kutoa mA | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
| Aina ya Volti ya Pato | 6-54Vcc |
| Kiwango cha Chini cha Pato (mA) | 350,00 |
| Kiwango cha Upeo wa Pato (mA) | 1.050,00 |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
LED driver dimmable..
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
