IPD WD 3P2,5 M20 BK

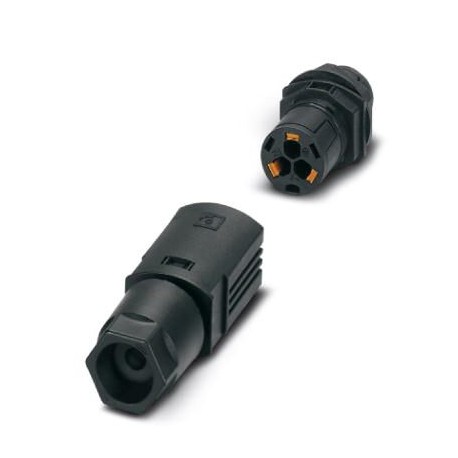

IPD WD 3P2,5 M20 BK 1047321 PHOENIX CONTACT Panel feed-through, Push-in connection, number of positions: 2+P..
$0.00USD
4518 kwenye hisa
Vipimo Muhimu
GTIN:4055626647197
(Kebeli):IP68 (2 m / 24 h)
Ufunguo wa kuagiza:1047321
(Jumla):8 mm ... 13 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626647197 |
| (Kebeli) | IP68 (2 m / 24 h) |
| Ufunguo wa kuagiza | 1047321 |
| (Jumla) | 8 mm ... 13 mm |
| (Michoro) | Push-in connection |
| Kitengo cha kufungasha | 1 pc |
| Rangi (Michoro) | black |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC002566 |
| ETIM 6.0 (eCl@ss) | EC002566 |
| ETIM 7.0 (eCl@ss) | EC002566 |
| Nambari ya ushuru maalum | 85366990 |
| Kuashiria nafasi (Jumla) | L, N, PE |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mbinu ya muunganisho (Michoro) | Push-in connection |
| Kiwango cha ulinzi (Kebo) | IP66 |
| Haina halojeni (Data ya nyenzo) | yes |
| eCl@ss 7.0 (Uainishaji) | 27440602 |
| eCl@ss 8.0 (Uainishaji) | 27440602 |
| eCl@ss 9.0 (Uainishaji) | 27440602 |
| Idadi ya nafasi (Michoro) | 3 |
| Kipenyo cha kebo ya nje (Jumla) | 6 mm ... 9 mm |
| Mkondo uliokadiriwa (Hali ya mazingira) | 20 A |
| Note number of positions (Drawings) | 2+PE |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 80.000 g |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Halijoto ya mazingira (uendeshaji) (Kebo) | -40 °C ... 100 °C |
| Mkondo wa nominella IN (Hali za mazingira) | 20 A |
| Volti iliyokadiriwa (III/3) (Hali ya mazingira) | 690 V |
| Conductor cross section AWG max. (Drawings) | 14 |
| Conductor cross section AWG min. (Drawings) | 20 |
| Halijoto wakati kondakta ameunganishwa (Kebo) | 5 °C ... 50 °C |
| Conductor cross section solid max. (Drawings) | 2.5 mm² |
| Conductor cross section solid min. (Drawings) | 0.5 mm² |
| Nyenzo ya mguso (Sifa za mitambo) | Cu |
| Halijoto ya kawaida (uhifadhi/usafiri) (Kebo) | -40 °C ... 100 °C |
| DiagramDerating diagram for 1.0 mm² (Drawings) | |
| Conductor cross section flexible max. (Drawings) | 2.5 mm² |
| Conductor cross section flexible min. (Drawings) | 0.5 mm² |
| Kiwango cha uchafuzi (Sifa za kiufundi) | 3 |
| DiagramDerating diagram for 2.5 mm² (Drawings) | |
| Volti ya kuongezeka iliyokadiriwa (III/3) (Hali ya mazingira) | 6 kV |
| Kategoria ya overvoltage (Sifa za mitambo) | III |
| Aina ya athari ya mshtuko (Sifa za umeme) | IK07 |
| Frequency of connections (Electrical characteristics) | max. 10 |
| Mizunguko ya kuingiza/kutoa (Sifa za umeme) | 10 |
Maelezo ya Bidhaa
Feedthrough, Push-in connection, number of poles: 2+PE, 0.5 mm² ... 2.5 mm², 600 V, 20 A, black, outer diameter of the cable: 6 mm ... 9 mm and 8 mm... 13 mm, mounting thread: M20, Push-in connection
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
DiagramDerating diagram for 1.0 mm²
