ILC 2050 BI

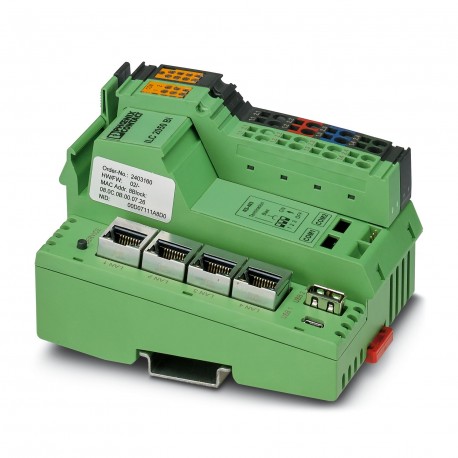

ILC 2050 BI 2403160 PHOENIX CONTACT Controller
$0.00USD
4128 kwenye hisa
Vipimo Muhimu
:BACnet MS/TP (only at COM1 and COM2)
RAM:1024 Mbyte DDR3 SDRAM
Aina:modular
Rangi:green (RAL 6021)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| BACnet MS/TP (only at COM1 and COM2) | |
| RAM | 1024 Mbyte DDR3 SDRAM |
| Aina | modular |
| Rangi | green (RAL 6021) |
| Kina | 71.5 mm |
| Upana | 80 mm |
| Urefu | 119.8 mm |
| Kichakataji | Arm®Cortex®-A8 1 GHz |
| Mfumo wa basi | RJ45 |
| Seva ya wavuti | yes |
| Aina ya bidhaa | Controller |
| Aina ya kupachika | DIN rail mounting |
| Familia ya bidhaa | Inline-Controller |
| Kumbukumbu ya programu | 1 GByte (SRAM) |
| Saa ya wakati halisi | Yes |
| Volti ya usambazaji | 24 V DC |
| Idadi ya njia | 2 |
| Kazi ya usalama | no |
| Marekebisho ya makala | 06 |
| Zana ya uhandisi | Emalytics |
| Mbinu ya muunganisho | Spring-cage connection |
| Kasi ya upitishaji | 10/100 Mbps |
| Mfumo wa kuhifadhi data | 1.8 GByte (eMMC) |
| Onyesho la uchunguzi | no |
| Dokezo kwenye programu | Only for industrial use |
| Itifaki zinazoungwa mkono | BACnet/IP |
| Kiwango cha ulinzi | IP20 |
| Idadi ya violesura | 4 |
| Kiwango cha voltage ya usambazaji | 19.2 V DC ... 30 V DC |
| Upungufu wa kidhibiti | no |
| Darasa la GRP_Temperature | T4 |
| Hifadhi ya data iliyohifadhiwa | 2 GByte (eMMC) |
| Shinikizo la hewa (uendeshaji) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Matumizi ya juu zaidi ya sasa | ≤ 1.5 A |
| Maelezo ya saa ya wakati halisi | integrated (rechargeable battery buffered) |
| Sehemu ya msalaba ya kondakta AWG | 28 ... 16 |
| Matumizi ya kawaida ya sasa | ≤ 170 mA (at nominal voltage without local bus device) |
| Sehemu ya msalaba ya kondakta, ngumu | 0.08 mm² ... 1.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 55 °C (observe derating) |
| Lugha za programu zinaungwa mkono | Niagara Framework® |
| Shinikizo la hewa (uhifadhi/usafiri) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) | 0 % ... 75 % (according to DIN EN 61131-2) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika | 0.08 mm² ... 1.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) | -25 °C ... 85 °C |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 0 % ... 75 % (according to DIN EN 61131-2) |
| Upinzani dhidi ya gesi zinazoweza kuhatarisha utendaji kazi, kwa mujibu wa DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity |
Maelezo ya Bidhaa
Modular inline controller for automation applications in building technology, infrastructure and energy technology. It has two logically separated IP address interfaces with 2 integrated Fast Ethernet
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
