ILC 151 GSM/GPRS

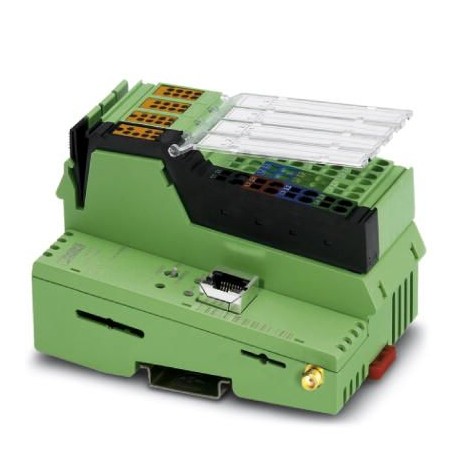

ILC 151 GSM/GPRS 2700977 PHOENIX CONTACT Controller
$0.00USD
3795 kwenye hisa
Vipimo Muhimu
GTIN:4046356665537
Ufunguo wa kuagiza:2700977
Ukurasa wa katalogi:Page 83 (C-6-2017)
Kina (Dokezo):71.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356665537 |
| Ufunguo wa kuagiza | 2700977 |
| Ukurasa wa katalogi | Page 83 (C-6-2017) |
| Kina (Dokezo) | 71.5 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 85 mm |
| Urefu (Dokezo) | 119.8 mm |
| (Mfumo wa udhibiti) | PC WORX EXPRESS |
| Nchi ya asili | DE (Germany) |
| Mshtuko (Vipimo) | 25g, Criterion 1, according to IEC 60068-2-27 |
| Nambari ya ushuru maalum | 85371091 |
| Mshtuko (Data ya jumla) | 25g, Criterion 1, according to IEC 60068-2-27 |
| (Hali ya mazingira) | PC WORX EXPRESS |
| Uzito (Usambazaji wa umeme) | 285 g |
| Nambari (Kitendakazi cha Fieldbus) | 1 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Jina la kuingiza (Violesura vya data) | Digital inputs |
| Volti ya usambazaji (I/Os ya moja kwa moja) | 24 V DC |
| Kinga dhidi ya EF (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Kiolesura (Kitendakazi cha Fieldbus) | GSM / GPRS |
| Hifadhi ya wingi (Mfumo wa kudhibiti) | 512 kByte |
| Jina la matokeo (Violesura vya data) | Digital outputs |
| Kichakataji (Ubunifu wa mitambo) | Altera Nios II 64 MHz |
| Mawimbi ya mabaki (I/Os ya moja kwa moja) | ± 5 % |
| Kinga dhidi ya ESD (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Kipengele cha usalama (Ugavi wa umeme) | No |
| Usambazaji wa Nguvu (I/Os ya Moja kwa Moja) | max. 5 W |
| Kumbukumbu ya programu (Mfumo wa Udhibiti) | 512 kByte |
| Saa ya muda halisi (Mfumo wa Udhibiti) | Yes |
| Kinga ya kupasuka (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion A, all interfaces 1 kVCriterion B, all interfaces 2 kV |
| Kinga dhidi ya kuongezeka (Takwimu za jumla) | Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, supply lines DC: 0.5 kV/0.5 kV (symmetrical/asymmetrical), fieldbus cable shield 1 kV |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Zana ya uhandisi (Mfumo wa Udhibiti) | PC WORX |
| Onyesho la uchunguzi (Usambazaji wa umeme) | No |
| Idadi ya ingizo (Violesura vya data) | 16 |
| Kiwango cha volteji ya usambazaji (I/Os ya moja kwa moja) | 19.2 V DC ... 30 V DC |
| Mtetemo (uendeshaji) (Vipimo) | 5g |
| Mbinu ya muunganisho (Violesura vya data) | Spring-cage connection |
| Idadi ya matokeo (Violesura vya data) | 4 |
| Upungufu wa kidhibiti (Usambazaji wa umeme) | No |
| Utoaji wa kuingiliwa (Data ya jumla) | Noise emission test as per EN 61000-6-4 EN 55011 Class A |
| Mtetemo (uendeshaji) (Data ya jumla) | 5g |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 350.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mbinu ya muunganisho (Kitendakazi cha Fieldbus) | SIM card, SMA antenna connection |
| Zana ya utambuzi (Hali za mazingira) | DIAG+ |
| Zana ya uhandisi (Hali ya mazingira) | PC WORX |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Kiwango cha juu cha matumizi ya sasa (I/Os ya moja kwa moja) | 860 mA (360 mA communications power + 500 mA analog voltage supply) |
| REACh SVHC (Viwango na Kanuni) | 1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4 |
| Kasi ya upitishaji (kazi ya basi la Fieldbus) | 500 kBaud / 2 MBaud (can be switched) |
| Zana ya usanidi (Hali za mazingira) | Config+ Version 1.01 or later |
| Teknolojia ya muunganisho (Violesura vya data) | 2, 3, 4-wire |
| Hifadhi ya wingi iliyohifadhiwa (Mfumo wa udhibiti) | 48 kByte (NVRAM) |
| Idadi ya kazi za udhibiti (Mfumo wa udhibiti) | 8 |
| Maelezo ya kiolesura (Kitendakazi cha Fieldbus) | GSM / GPRS |
| Matumizi ya kawaida ya sasa (I/Os ya Moja kwa Moja) | 210 mA |
| Maelezo ya ingizo (Violesura vya data) | EN 61131-2 type 1 NPN/PNP |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 55 °C |
| Utangamano wa sumaku-umeme (Data ya jumla) | Conformance with EMC Directive 2014/30/EU |
| Mtetemo (uhifadhi/usafiri) (Takwimu ya jumla) | 5g |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | 1 |
| Kiasi cha data ya mchakato (mfumo wa muda wa IEC 61131) | max. 4096 Bit (INTERBUS) |
| Kinga dhidi ya kuingiliwa kunakofanywa (Takwimu za jumla) | Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 85 °C |
| Kiwango cha juu cha mkondo wa kutoa kwa kila chaneli (Violesura vya data) | 500 mA |
| Lugha za programu zinazotumika (Hali za mazingira) | Programming in acc. with IEC 61131-3 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Idadi ya vifaa vinavyotumika (mfumo wa muda wa IEC 61131) | max. 128 |
| Idadi ya vifaa vyenye chaneli ya vigezo (mfumo wa muda wa IEC 61131) | max. 16 |
| Idadi ya vifaa vya basi vya ndani vinavyoweza kuunganishwa (mfumo wa muda wa IEC 61131) | max. 63 (observe current consumption) |
| Idadi ya vituo vya matawi vinavyoungwa mkono vyenye tawi la basi la mbali (mfumo wa muda wa IEC 61131) | max. 3 |
Maelezo ya Bidhaa
Inline controller with Ethernet interface and GSM modem for coupling to other controls or systems, and possibility of programming according to IEC 61131-3, complete with connector and marking surface.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
