IL PB BK DP/V1-PAC

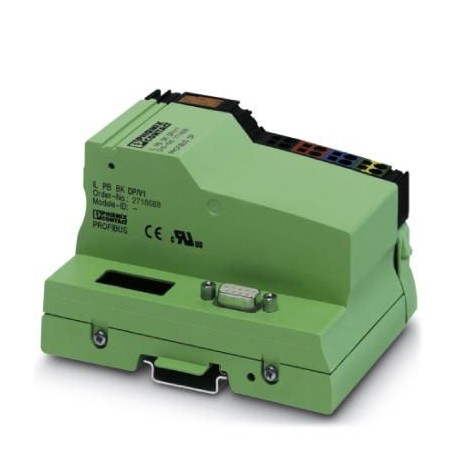

IL PB BK DP/V1-PAC 2862246 PHOENIX CONTACT Bus coupler
$0.00USD
4808 kwenye hisa
Vipimo Muhimu
GTIN:4017918907471
Ufunguo wa kuagiza:2862246
Ukurasa wa katalogi:Page 133 (C-6-2017)
Kina (Dokezo):71.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4017918907471 |
| Ufunguo wa kuagiza | 2862246 |
| Ukurasa wa katalogi | Page 133 (C-6-2017) |
| Kina (Dokezo) | 71.5 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 85 mm |
| (Violesura) | max. 176 Byte (Output) |
| Urefu (Dokezo) | 119.8 mm |
| Nchi ya asili | DE (Germany) |
| (Uwezo wa ndani) | FE / FE D-SUB 500 V |
| Nambari ya ushuru maalum | 85389091 |
| Uteuzi (Jumla) | Inline local bus |
| (Kutengwa kwa umeme) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse |
| Uteuzi (Violesura) | System limits of the bus coupler |
| Idadi ya njia (Jumla) | 1 |
| Mchoro wa vipimo (Dokezo) | |
| Mbinu ya muunganisho (Jumla) | Inline data jumper |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Kasi ya upitishaji (Jumla) | 500 kbps |
| Idadi ya nafasi (Jumla) | 9 |
| Uzito halisi (Hali ya mazingira) | 240 g |
| Sehemu ya majaribio (Uwezo wa ndani) | 500 V |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Aina ya kupachika (Hali ya mazingira) | DIN rail |
| (Mipaka ya mfumo wa kiunganishi cha basi) | max. 1.25 A (with max. number of connected I/O terminal blocks) |
| Kiasi cha data ya mchakato (Violesura) | max. 176 Byte (per station) |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 240.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
| Idadi ya data ya vigezo (Violesura) | max. 168 Byte (DP/V1 mode) |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Vipimo vya mitambo (Utenganishaji wa umeme) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Darasa la ulinzi (Utenganishaji wa umeme) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Idadi ya vifaa vinavyotumika (Violesura) | max. 63 (per station) |
| Idadi ya data ya usanidi (Violesura) | max. 168 Byte (DP/V1 mode) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | 0 °C ... 55 °C |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 85 % (non-condensing) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | 1 |
| Uteuzi (Mipaka ya mfumo wa kiunganishi cha basi) | Segment circuit supply (US) |
| Volti ya usambazaji (Mipaka ya mfumo wa kiunganishi cha basi) | 24 V DC |
| Dokezo kuhusu vipimo vya uzito (Hali ya mazingira) | with connectors |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 85 °C |
| Kitengo cha usambazaji wa umeme (Mipaka ya mfumo wa kiunganishi cha basi) | max. 8 A DC (sum of UM+ US) |
| Idadi ya vifaa vyenye chaneli ya vigezo (Violesura) | max. 16 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 85 % (non-condensing) |
| Matumizi ya sasa (Mipaka ya mfumo wa kiunganishi cha basi) | typ. 100 mA (without connected Inline I/O terminals) |
| Kiwango cha volteji ya usambazaji (Mipaka ya mfumo wa kiunganishi cha basi) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Idadi ya vifaa vya basi vya ndani vinavyoweza kuunganishwa (Violesura) | max. 63 |
| Idadi ya vituo vya matawi vinavyoungwa mkono vyenye tawi la basi la mbali (Violesura) | 0 |
Maelezo ya Bidhaa
Inline, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, local bus transmission rate:500 kBit/s, protection index: IP20, including Inline connector and marking surface
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
