IB IL 24 LSKIP-PAC

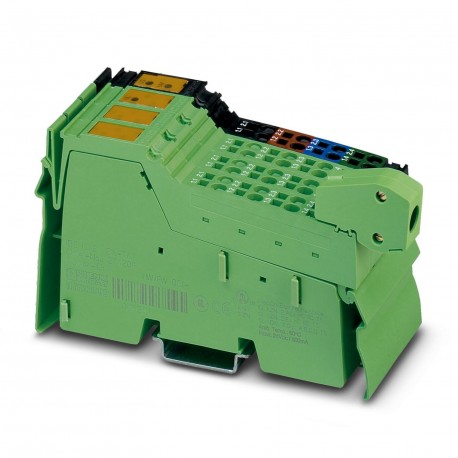

IB IL 24 LSKIP-PAC 2897457 PHOENIX CONTACT Inline function terminal
$0.00USD
4699 kwenye hisa
Vipimo Muhimu
:Protection against polarity reversal (segment supply/main supply); Parallel diodes for protection against polarity reversal; in the event of an error the high current flowing through the diodes causes the fuse connected upstream to blow.
Aina:modular
Kina:71.5 mm
Upana:48.8 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Protection against polarity reversal (segment supply/main supply); Parallel diodes for protection against polarity reversal; in the event of an error the high current flowing through the diodes causes the fuse connected upstream to blow. | |
| Aina | modular |
| Kina | 71.5 mm |
| Upana | 48.8 mm |
| Urefu | 135 mm |
| Droo ya sasa | max. 1.25 A (at nominal voltage; consisting of: 0.75 A DC for the communications power and 0.5 A DC for the analog voltage supply) |
| Aina ya bidhaa | I/O component |
| Nambari ya kitambulisho (heksaidi) | none |
| Aina ya kupachika | DIN rail mounting |
| Familia ya bidhaa | Inline |
| Volti ya usambazaji | 24 V DC (via Inline connector) |
| Jina la muunganisho | Inline connector |
| Urefu wa rejista | 0 bit |
| Marekebisho ya makala | 06 |
| Darasa la ulinzi | III (IEC 61140, EN 61140, VDE 0140-1) |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Inline shield connector |
| Wigo wa utoaji | including Inline connectors and marking fields |
| Eneo la anwani ya kuingiza | 0 Byte |
| Mzunguko wa kinga | Surge protection (segment supply, main supply, 24 V supply); Input protective diodes (can be destroyed by permanent overload)Pulse loads up to 1500 W are short circuited by the input protective diode. |
| Sifa maalum | for extending the Inline local bus |
| Kasi ya upitishaji | 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) |
| Mchoro wa vipimo | |
| Dokezo kwenye programu | Only for industrial use |
| Eneo la anwani ya kutoa | 0 Byte |
| Kiwango cha ulinzi | IP20 |
| Idadi ya violesura | 1 (incoming local bus) |
| Kiwango cha voltage ya usambazaji | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Fizikia ya uhamishaji | Copper |
| Data ya vigezo inayohitajika | 0 Byte |
| Shinikizo la hewa (uendeshaji) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Sehemu ya msalaba ya kondakta AWG | 28 ... 16 |
| Data ya usanidi inayohitajika | 0 Byte |
| Sehemu ngumu ya kondakta | 0.08 mm² ... 1.5 mm² |
| Kumbuka kuhusu njia ya muunganisho | Standard INTERBUS cable |
| Sehemu ya msalaba ya kondakta, ngumu | 0.08 mm² ... 1.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 55 °C |
| Shinikizo la hewa (uhifadhi/usafiri) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.08 mm² ... 1.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 10 % ... 95 % (non-condensing) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika | 0.08 mm² ... 1.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) | -25 °C ... 85 °C |
| Idadi ya vifaa vyenye chaneli ya vigezo | 63 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 10 % ... 95 % (non-condensing) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 1.45 W |
| Idadi ya vifaa vya basi vya ndani vinavyoweza kuunganishwa | max. 63 (without additional power terminal block, observe allowable total current consumption) |
| Volti ya majaribio: Ugavi wa 5 V unaoingia basi la ndani / ugavi mkuu wa 24 V, ugavi wa sehemu ya 24 V | 500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Ugavi mkuu wa 24 V, ugavi wa sehemu ya 24 V, ugavi wa umeme wa 24 V kwa ajili ya kuzalisha volteji UNa UANA/ ardhi inayofanya kazi | 500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Nguvu ya mawasiliano ya 7.5 V, usambazaji wa umeme wa analogi wa 24 V, usambazaji wa umeme wa 24 V kwa ajili ya kuzalisha volteji UNa UANA/ ardhi inayofanya kazi | 500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: 5 V hutoa basi la ndani linaloingia / nguvu ya mawasiliano ya 7.5 V, usambazaji wa umeme wa analogi wa 24 V, usambazaji wa umeme wa 24 V kwa ajili ya kuzalisha volteji UNa UANA | 500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Nguvu ya mawasiliano ya 7.5 V, usambazaji wa umeme wa analogi wa 24 V, usambazaji wa umeme wa 24 V kwa ajili ya kuzalisha volteji UNa UANA/ usambazaji mkuu wa 24 V, usambazaji wa sehemu ya 24 V | 500 V AC, 50 Hz, 1 min. |
Maelezo ya Bidhaa
Inline, Coupler terminal block, for expansion of the local bus Inline, transmission rate on the local bus: 500 kBit/s / 2 MBit/s, protection index: IP20, including inline connectors and marking fields
