HLP-60H-48

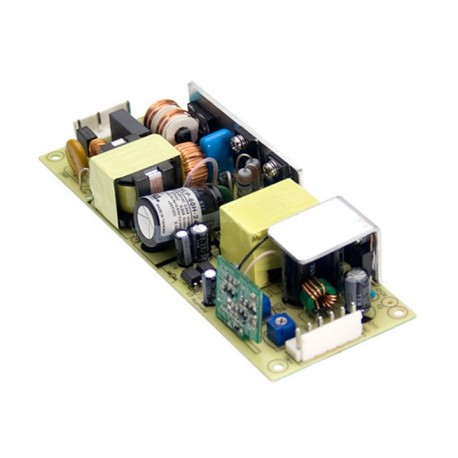

HLP-60H-48 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 48VDC / 1.3A, open frame, Dimmin..
$0.00USD
3355 kwenye hisa
Vipimo Muhimu
Jina:HLP-60H-48
Jimbo:Recommended Model
Muundo:Open Format
Mfululizo:HLP-60H
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | HLP-60H-48 |
| Jimbo | Recommended Model |
| Muundo | Open Format |
| Mfululizo | HLP-60H |
| Kufifia | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Idhini | CCC, CE, UL |
| Nguvu (W) | 62,40 |
| Upana (mm) | 53.00 |
| Urefu (mm) | 27.00 |
| Kiwango cha juu cha kuingiza AC | 305,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Lighting |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | LED Driver |
| Kutengwa (V) | 3.750,00 |
| Nguvu ya Kilele (W) | 62.4 |
| Kiunganishi cha kuingiza data | Plug-in |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 147.00 |
| Maelezo Marefu | LED driver.Specially designed to feed LED strips.Open format typePCBS.Input range90-305Vca47-63Hz.Output in constant current1300mA.Adjustable by external potentiometer (780-1300mA).Range of output voltage with current mode constant28,8 @ 48vdcaccording to demand load.The output voltage in voltage mode constant48vdc. Adjustable by external potentiometer (44-53Vcc).Power:62,4 W.Efficiency typical:Total of 90.5%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):147 x 53 x 27mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output voltage and the output current can be adjusted byexternal potentiometerslocated in the plate of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.With format, open PCB type. The series HLP is intended for applications of LED lighting. Suitable for dry environments and interior. Burn test at 100% load.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Kiunganishi cha kutoa | Plug-in |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
| Mkondo wa kutoa mA | 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300 |
| Kiwango cha Chini cha Pato (mA) | 780,00 |
| Kiwango cha Upeo wa Pato (mA) | 1.300,00 |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
LED driver.
