HLN-80H-20B

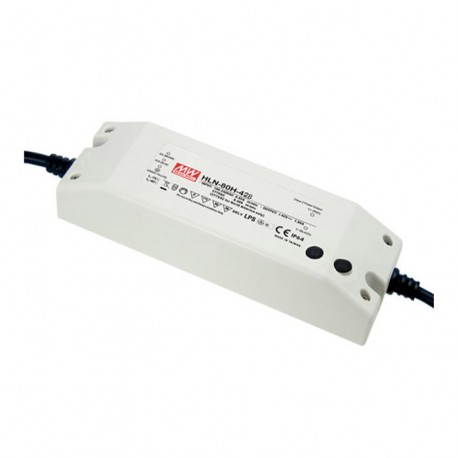

HLN-80H-20B MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 20VDC / 4A, IP64, cable output,..
$0.00USD
3274 kwenye hisa
Vipimo Muhimu
Jina:HLN-80H-20B
Jimbo:Do not Use for New Designs
Hisa:Yes
Muundo:Box
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | HLN-80H-20B |
| Jimbo | Do not Use for New Designs |
| Hisa | Yes |
| Muundo | Box |
| Mfululizo | HLN-80H |
| Kufifia | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Idhini | CE, PSE, UL |
| Nguvu (W) | 80,00 |
| Fomu ndogo | IP64 |
| Upana (mm) | 61.50 |
| Urefu (mm) | 35.00 |
| Kiwango cha juu cha kuingiza AC | 305,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Lighting |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | LED Driver |
| Kutengwa (V) | 3.750,00 |
| Nguvu ya Kilele (W) | Eighty |
| Kiunganishi cha kuingiza data | Cable |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 181.00 |
| Maelezo Marefu | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP64.Input range90-305Vca47-63Hz.Output in constant current4A.Range of output voltage with current mode constant12 to 20vdcaccording to demade the load.Power:80W.Efficiency typical:90%.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,96to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+50ºC.Dimensions (Length x Width x Height) [mm]:181 x 61.5 x 35.3 years of warranty.Manufacturer: MEAN WELL.The series HLN are LED Drvers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 20V, if a load is fed at constant voltage and does not overcome the maximum output power.With plastic housing is isolated. A small and compact size makes it have high reliability and low cost. These sources are suitable for LED lighting and signalling mobile installations of interior and exterior. Suitable for wet environments and wet conditions. Complies with the requirements of security at the global level for lighting.This model is not recommended for dimming of LED strips, since the computer regulates reducing this crash the maximum output current. If the strip consumes less of the power of the equipment when we start to regulate it will do nothing, because the output current is giving is already decreasing. Nor do we lose 30% of power of the strip as in the low levels of regulation this can you blink, or have very low accuracy for the regulation in the low levels. If you need regular, LED strips, we recommend the series PWM.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Con dimmers 1-10V we can only reach 10% of regulation without shutting down the output.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Kiunganishi cha kutoa | Cable |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
| Mkondo wa kutoa mA | Four thousand |
| Kiwango cha Chini cha Pato (mA) | 4.000,00 |
| Kiwango cha Upeo wa Pato (mA) | 4.000,00 |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
LED driver.
