HEP-600C-24

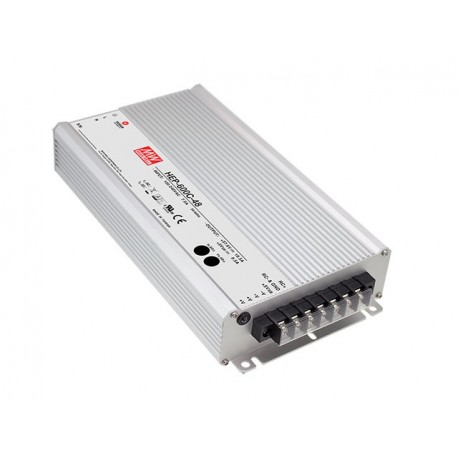

HEP-600C-24 MEANWELL AC-DC Single output 3 stage battery charger with PFC for lead acid batteries, Adjustabl..
$0.00USD
3545 kwenye hisa
Vipimo Muhimu
Loo:70, 80, 85, 90, 100, 105, 110, 120, 125, 130, 135, 140, 150, 160, 170, 175, 180, 190, 200, 210
Jina:HEP-600C-24
Jimbo:Recommended Model
Muundo:Box
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Loo | 70, 80, 85, 90, 100, 105, 110, 120, 125, 130, 135, 140, 150, 160, 170, 175, 180, 190, 200, 210 |
| Jina | HEP-600C-24 |
| Jimbo | Recommended Model |
| Muundo | Box |
| Mfululizo | HEP-600C |
| Matokeo 1 | +24 |
| Idhini | CE, UL |
| Nguvu (W) | 604,80 |
| Fomu ndogo | Encapsulated |
| Upana (mm) | 144.00 |
| Urefu (mm) | 48.50 |
| Kiwango cha juu cha kuingiza AC | 305,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Industrial, Solar, Telecommunications |
| Aina ya betri | Lead, AGM, Wet |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Chargers |
| Hatua za kuchaji | Three |
| Kutengwa (V) | 3.750,00 |
| Kiunganishi cha kuingiza data | Screw-Type |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 280.00 |
| Maelezo Marefu | Battery charger for Gel, AGM and wet for aggressive environments.Load in 3 stages.Format metal box.Range of universal input90-305Vca. 47-63Hz.Absorption voltage28,8 Vdc.Float voltageTo 27.2 Vdc. Adjustable by potentiometer (23-30,2 Dc).Intensity of load21A. Adjustable by potentiometer (10,5-21A).Power:604,8 W.Type of batteries:Gel, AGM and wet.Battery capacity:70-210Ah.Efficiency typical:94.5 per cent.Factor corrector, power>0,95to 230vac at full load.Remote on / off.Auxiliary output Stand-by 5V 0.5 A.Consumption in off mode <0.5 W.3-color LED charging status indicator.Certified to work up to 5000 meters of altitude.Working temperature: from-40up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:280 x 144 x 48,5.6 years of warranty.Manufacturer: MEAN WELL.The series HEP-600C are the chargers of lead-acid battery, Gel, AGM and wet especially designed for aggressive environments. Manufactured in a metal box and with a wide temperature range from -40ºC up to +70ºC. The voltage and charge current can be adjusted by means of potentiometers. Do not carry fan which prevents problems by the entry of dust, failure of fans for vibration and dirt. Have a high efficiency and auxiliary output stand-by as well as a minimum consumption when they are switched off. They are able to withstand large vibrations of up to 10G and are designed to install in any type of vehicle. They are certified to work up to 5000 meters of altitude. |
| Kiunganishi cha kutoa | Screw-Type |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 6,00 |
| Nchi ya Asili | Taiwan |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Battery charger for Gel, AGM and wet for aggressive environments.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
