HC-M-HS-MOD-ST

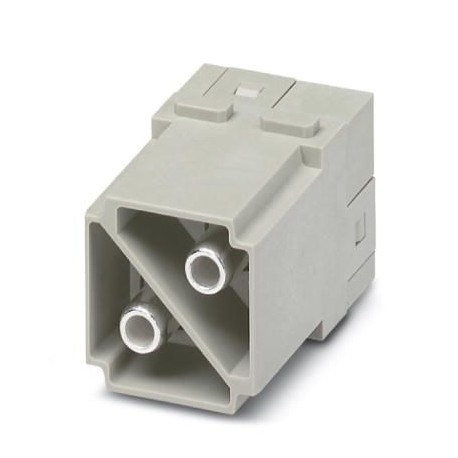

HC-M-HS-MOD-ST 1605000 PHOENIX CONTACT Contact insert module
$0.00USD
4475 kwenye hisa
Vipimo Muhimu
GTIN:4017918893293
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:1605000
Ukurasa wa katalogi:Page 553 (C-4-2015)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4017918893293 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 1605000 |
| Ukurasa wa katalogi | Page 553 (C-4-2015) |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | DE (Germany) |
| Nambari ya ushuru maalum | 85366990 |
| (Hali ya mazingira) | 8 Nm (35 mm²) |
| Nyenzo za mawasiliano (Jumla) | Copper alloy |
| Mkondo uliokadiriwa (Vipimo) | 100 A |
| Upana (Data Muhimu ya Biashara) | 34.2 mm |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Urefu (Data Muhimu ya Kibiashara) | 29.4 mm |
| Wasifu wa muunganisho (Vipimo) | 2 |
| Volti ya kuongezeka iliyokadiriwa (Vipimo) | 8 kV |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PC |
| Nyenzo ya uso wa mguso (Jumla) | Ag |
| Volti iliyokadiriwa (III/3) (Vipimo) | 1000 V |
| Mfululizo (Sifa za kiufundi) | HC-M-HS |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 69.900 g |
| Soketi ya hexagonal (Hali ya mazingira) | SW 4 |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Kukaza torque (Hali ya mazingira) | 6 Nm (16 mm²) |
| Muunganisho (Sifa za kiufundi) | Note for axial connection methodThe specified conductor cross sections refer to the geometric cross section of the used conductor.The use of conductors with a geometric cross section that deviates greatly from the nominal cross section of the conductor should be checked first.The wiring space of the axial screw technology has been designed for fine strand conductors as per VDE 0295 class 5. Deviating conductor superstructures (e.g. class 6 conductors) must be checked before use.ConnectionIt must be ensured before installation that the ball screw is completely turned back (chamber is open). Twisting the conductors is not allowed. The cores must be pushed up to the end of the contact chamber (until the contact is insulated). Keep the core in this position and tighten it using an Allen key. The required core end must be cut before a reconnection. Tightening the connection screw is allowed only once in order to prevent a breakage of the litz wire. |
| Urefu wa chini kabisa wa makazi (Hali ya mazingira) | 72 mm |
| Sehemu ya msalaba ya kondakta (Hali ya mazingira) | 16 mm² ... 35 mm² (The cross section specification refers to the geometric cross section of the cable used) |
| Mbinu ya muunganisho (Sifa za kiufundi) | Axial screw connection |
| Muunganisho katika akaunti na (Data ya nyenzo) | CUL |
| Kiwango cha uchafuzi (Sifa za kiufundi) | 3 |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 500 |
| Sehemu ya muunganisho AWG (Hali za mazingira) | 4 ... 2 |
| Kategoria ya overvoltage (Sifa za mitambo) | III |
| Maagizo ya uunganishaji (Sifa za kiufundi) | - Use HC housing h >= 72 mm- Connection of wires using a 4 mm Allen wrench- Axial screw connection only for stranded wires- Plug-in connections may only be operated only when there is no load/voltage |
| Idadi ya nafasi za moduli (Sifa za kiufundi) | 2 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Data ya nyenzo) | V0 |
| Kipenyo cha waya ikijumuisha insulation (Hali ya mazingira) | 11.4 mm |
| Halijoto ya mazingira (uendeshaji) (Sifa za umeme) | -40 °C ... 125 °C |
| Urefu wa kukatwa kwa waya mmoja mmoja (Hali ya mazingira) | 13 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Sifa za kiufundi) | V0 |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
