HC-HS 2-D7-ESTS

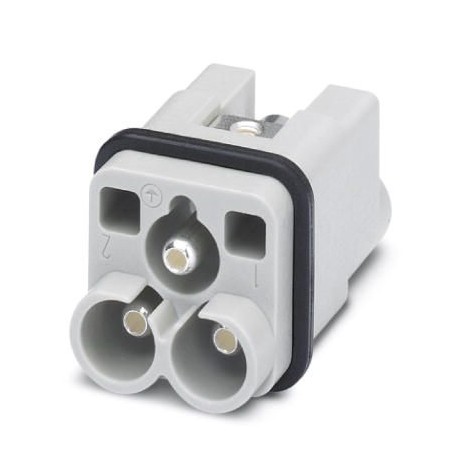

HC-HS 2-D7-ESTS 1586277 PHOENIX CONTACT Contact insert
$31.75USD
358 kwenye hisa
Vipimo Muhimu
GTIN:4046356410229
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:1586277
Ukurasa wa katalogi:Page 507 (C-2-2017)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356410229 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 1586277 |
| Ukurasa wa katalogi | Page 507 (C-2-2017) |
| Kitengo cha kufungasha | 10 pc |
| Nchi ya asili | DE (Germany) |
| Nambari ya ushuru maalum | 85366990 |
| (Data Muhimu za Kibiashara) | The axial screw connection must be established using a 2 mm Allen key (for stranded conductors only) |
| Kiasi cha chini cha oda | 10 pc |
| Ukubwa (Data Muhimu ya Kibiashara) | D7 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| (Sifa za umeme) | IEC 60352 |
| Mkondo uliokadiriwa (Data ya nyenzo) | 40 A |
| Muunganisho (Data Muhimu ya Biashara) | Note regarding axial connection technology:Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.Assembly instructionsBefore assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque. |
| Volti ya kuongezeka iliyokadiriwa (Data ya nyenzo) | 6 kV |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 23.410 g |
| Nyenzo ya mguso (Hali ya mazingira) | Copper alloy |
| Volti iliyokadiriwa (III/3) (Data ya nyenzo) | 400 V |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Mbinu ya muunganisho (Data Muhimu ya Biashara) | Axial screw connection |
| Nambari za mawasiliano (Data Muhimu za Biashara) | 1 - 2 |
| Kuimarisha torque (Data Muhimu ya Biashara) | 1.8 Nm |
| Halijoto ya mazingira (uendeshaji) (Jumla) | -40 °C ... 125 °C (including heating up of contacts) |
| Kiwango cha uchafuzi wa mazingira (Takwimu Muhimu za Kibiashara) | 3 |
| Idadi ya nafasi (Takwimu Muhimu za Kibiashara) | 2+PE |
| Kategoria ya overvoltage (Data Muhimu ya Biashara) | III |
| Maagizo ya uunganishaji (Data Muhimu ya Kibiashara) | To ensure correct use, installation in housing with IP54 protection or better is required |
| Sehemu ya msalaba ya kondakta (Data Muhimu ya Biashara) | 4 mm² ... 10 mm² |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | PC |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ag |
| Mizunguko ya kuingiza/kutoa (Data Muhimu ya Biashara) | ≥ 500 |
| Sehemu ya muunganisho AWG (Data Muhimu ya Biashara) | 10 ... 8 |
| Muunganisho katika acc. na kiwango (Sifa za umeme) | CUL |
| Urefu wa kukatwa kwa waya mmoja mmoja (Data Muhimu ya Biashara) | 8 mm +1 |
| Kanuni za ujenzi na upimaji (Sifa za umeme) | DIN VDE 0627/86 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Sifa za umeme) | V0 |
Maelezo ya Bidhaa
Contact insert, number of poles: 2+PE, size: D7, power contacts: 2, Male, Axial screw connection, 400 V, 40 A, 4 mm² ... 10 mm², Application: Power
