HC-COM-Q08-I-CT-F

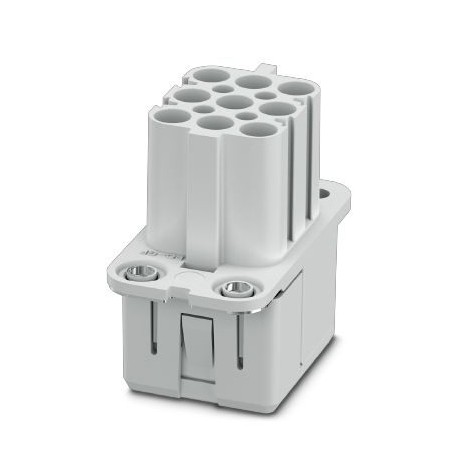

HC-COM-Q08-I-CT-F 1079547 PHOENIX CONTACT HEAVYCON crimp contact insert for compact plastic and compact meta..
$0.00USD
4042 kwenye hisa
Vipimo Muhimu
GTIN:4055626799490
Ufunguo wa kuagiza:1079547
(Michoro):
Ukurasa wa katalogi:Page 651 (C-2-2019)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626799490 |
| Ufunguo wa kuagiza | 1079547 |
| (Michoro) | |
| Ukurasa wa katalogi | Page 651 (C-2-2019) |
| Kitengo cha kufungasha | 1 pc |
| Dokezo (Michoro) | Connectors may be operated only when there is no load/voltage. |
| Size (Drawings) | COM |
| Nchi ya asili | CN (China) |
| ETIM 5.0 (eCl@ss) | EC000438 |
| ETIM 6.0 (eCl@ss) | EC000438 |
| ETIM 7.0 (eCl@ss) | EC000438 |
| Nambari ya ushuru maalum | 85389099 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mbinu ya muunganisho (Michoro) | Crimp connection |
| Contact numbering (Drawings) | 1 - 8 |
| eCl@ss 8.0 (Uainishaji) | 27440205 |
| eCl@ss 9.0 (Uainishaji) | 27440205 |
| Mkondo uliokadiriwa (Data ya nyenzo) | 16 A |
| Kiwango cha uchafuzi (Michoro) | 3 |
| Idadi ya nafasi (Michoro) | 8+PE |
| Kategoria ya volteji kupita kiasi (Michoro) | III |
| Assembly instructions (Drawings) | To ensure correct use, installation in housing with IP54 protection or better is required |
| No. of power contacts (Drawings) | 8 |
| Conductor cross section (Drawings) | 0.5 mm² ... 4 mm² |
| DiagramDerating diagram (Drawings) | |
| No. of control contacts (Drawings) | 0 |
| Volti ya kuongezeka iliyokadiriwa (Data ya nyenzo) | 6 kV |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Nyenzo ya mguso (Hali ya mazingira) | Copper alloy |
| Rated voltage (III/2) (Material data) | 500 V |
| Volti iliyokadiriwa (III/3) (Data ya nyenzo) | 320 V |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Insertion/withdrawal cycles (Drawings) | ≥ 500 |
| Connection cross section AWG (Drawings) | 20 ... 12 |
| Halijoto ya mazingira (uendeshaji) (Jumla) | -40 °C ... 125 °C (including heating up of contacts) |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | PC |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ag (alternatively Au) |
| Rated voltage for power contacts (Material data) | 500 |
| Stripping length of the individual wire (Drawings) | 7.5 mm (1.5 mm² ... 2.5 mm² control circuit) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Sifa za umeme) | V0 |
Maelezo ya Bidhaa
Contact insert, number of poles: 8+PE, size: COM, power contacts: 8, control contacts: 0, number of connections per pole: 1, Female, Crimped connection, 320 V, 16 A, 0.5 mm² ... 4 mm², Application: Po
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
DiagramDerating diagram
