HC-B 16-ESTQ-2,5-32

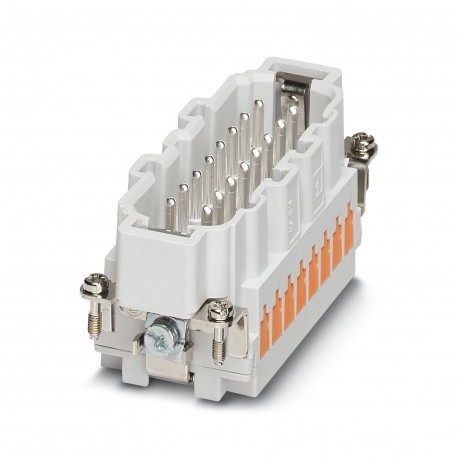

HC-B 16-ESTQ-2,5-32 1605653 PHOENIX CONTACT Contact insert
$18.06USD
596 kwenye hisa
Vipimo Muhimu
:B32
Aina:B16
Upana:34 mm
Urefu:84.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| B32 | |
| Aina | B16 |
| Upana | 34 mm |
| Urefu | 84.5 mm |
| Mfululizo | HC-B |
| Jumla | Connectors may be operated only when there is no load/voltage. |
| Aina ya bidhaa | Contact insert with a fixed no. of positions |
| Dokezo la mkutano | To ensure correct use, installation in housing with IP54 protection or better is required |
| Imekadiriwa mkondo | 16 A |
| Marekebisho ya makala | 07 |
| Kipenyo cha mguso | 2.5 mm |
| Nyenzo ya mawasiliano | Copper alloy |
| Nambari za mawasiliano | 17 - 32 |
| Kukaza torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| Wasifu wa muunganisho | 16+PE |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 16 |
| Volti ya kuongezeka iliyokadiriwa | 6 kV |
| Kategoria ya volteji nyingi | III |
| Teknolojia ya muunganisho | QUICKON connection |
| Aina ya nyenzo za mguso | rolled |
| Volti iliyokadiriwa (III/3) | 500 V |
| Viwango/kanuni | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| Sehemu ya msalaba ya kondakta | 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) |
| Nyenzo za mawasiliano | PA |
| Nyenzo ya uso wa mguso | Ag |
| Nyenzo ya kuzuia joto la waya | PVC / PE |
| Mizunguko ya kuingiza/kutoa | ≥ 500 |
| Sehemu ya muunganisho AWG | 22 ... 14 |
| Umbali wa kuchimba shimo, wima | 27 mm |
| Halijoto ya kawaida (mkusanyiko) | -25 °C ... 50 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 125 °C (including heating up of contacts) |
| Umbali wa kuchimba shimo, mlalo | 77.5 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
Maelezo ya Bidhaa
Contact insert, number of poles: 16+PE, size: B16, Male, QUICKON connection, 500 V, 16 A, 0.34 mm² ... 2.5 mm²
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
