Kipatikana Bidhaa Maarufu
HBG-160-36A

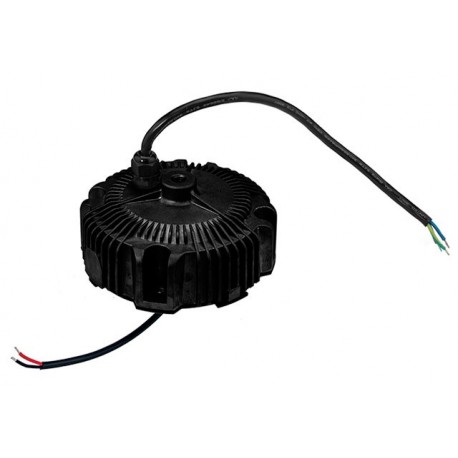

HBG-160-36A MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 36VDC / 4.4A, IP65, for in- and..
$0.00USD
3497 kwenye hisa
Vipimo Muhimu
Jina:HBG-160-36A
Jimbo:Recommended Model
Muundo:Box
Mfululizo:HBG-160-A
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | HBG-160-36A |
| Jimbo | Recommended Model |
| Muundo | Box |
| Mfululizo | HBG-160-A |
| Idhini | CCC, CE, ENEC, UL |
| Nguvu (W) | 158,40 |
| Fomu ndogo | IP65 |
| Upana (mm) | 151.68 |
| Urefu (mm) | 66.50 |
| Kiwango cha juu cha kuingiza AC | 305,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Lighting |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | LED Driver |
| Kutengwa (V) | 3.750,00 |
| Nguvu ya Kilele (W) | 158.4 |
| Kiunganishi cha kuingiza data | Cable |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 151.68 |
| Maelezo Marefu | LED driver.Specially designed for powering LEDs directly in a steady stream.Format circular plastic patentedIP65.Input range90-305Vca47-63Hz.Output in constant current4,4 A.Adjustable by external potentiometer (2,6-4.4 A).Range of output voltage with current mode constant21.6 to 36Vccaccording to demand load.Power:158,4 W.Efficiency typical:92%.Potentiometer:This model incorporates external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Diameter x Height):151,68 x 66,5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With cover, round, plastic IP65. The series HBG is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. Input class I with grounding. Approved HL Class I Division 2 for ex-zones in the US. |
| Kiunganishi cha kutoa | Cable |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 5,00 |
| Nchi ya Asili | China |
| Mkondo wa kutoa mA | 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000, 4500 |
| Kiwango cha Chini cha Pato (mA) | 2.600,00 |
| Kiwango cha Upeo wa Pato (mA) | 4.400,00 |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
LED driver.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
