GST90A15-P1M

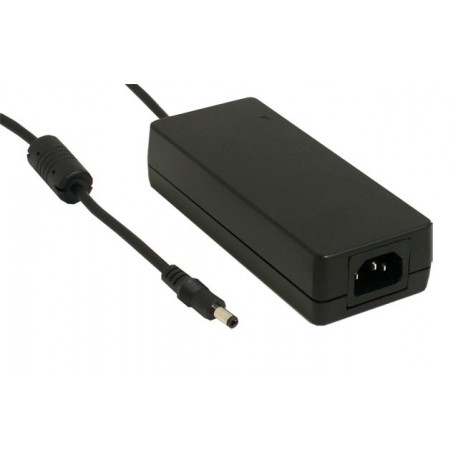

GST90A15-P1M MEANWELL AC-DC Industrial desktop adaptor with PFC, Input 3 pin IEC320-C14 socket, Output 15VDC..
$0.00USD
4599 kwenye hisa
Vipimo Muhimu
Jina:GST90A15-P1M
Jimbo:Recommended Model
Hisa:Yes
Muundo:Desktop
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | GST90A15-P1M |
| Jimbo | Recommended Model |
| Hisa | Yes |
| Muundo | Desktop |
| Mfululizo | GST90 |
| Idhini | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
| Nguvu (W) | 90,00 |
| Fomu ndogo | Encapsulated |
| Upana (mm) | 60.00 |
| Urefu (mm) | 32.00 |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Industrial, Telecommunications |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 3.000,00 |
| Volti ya kutoa | 15,00 |
| Nguvu ya Kilele (W) | Ninety |
| Kiunganishi cha kuingiza data | IEC 320-C14 |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 145.00 |
| Maelezo Marefu | Adapter type desktop with PFC function.Format plastic box.Range of universal input90-264vac47-63Hz.Output voltage15vdc.Output intensity6A. Range of output current 0-6A according to the demand load.Power:90W.Efficiency typical:89.5 per cent.Factor corrector of a power >of 0.91 to 230vac at full load.Class l non-grounded.Consumption without load<0,15 W.Led indicator of operation.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:145 x 60 x 32.3 years of warranty.Manufacturer: MEAN WELLThe GST series-these sources are switched in format desktop with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.5 x 11 mm (outer diameter, inner and length), and center positive.The series GST90 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency (Level Vl).Network Cable not included. |
| Kiunganishi cha kutoa | P1M P1J Tunnig Fork 5.5 x 2.5 x 11. C+ |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Adapter type desktop with PFC function.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
