GST120A12-R7B

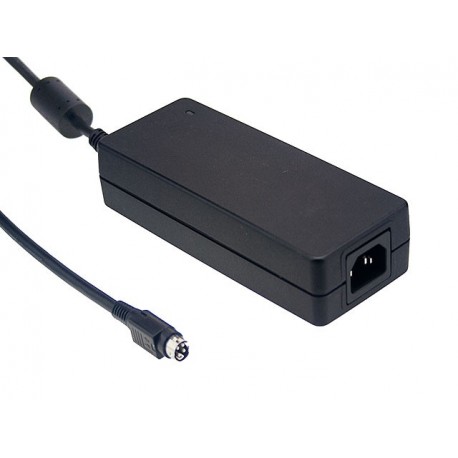

GST120A12-R7B MEANWELL AC-DC Industrial desktop adaptor with PFC, Output 12VDC / 8.5A, 3 pole AC inlet IEC32..
$0.00USD
3687 kwenye hisa
Vipimo Muhimu
Jina:GST120A12-R7B
Jimbo:Recommended Model
Hisa:Yes
Muundo:Desktop
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | GST120A12-R7B |
| Jimbo | Recommended Model |
| Hisa | Yes |
| Muundo | Desktop |
| Mfululizo | GST120 |
| Idhini | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
| Nguvu (W) | 102,00 |
| Upana (mm) | 67.00 |
| Urefu (mm) | 35.00 |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 85,00 |
| Maombi | Industrial, Telecommunications |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 3.000,00 |
| Volti ya kutoa | 12,00 |
| Nguvu ya Kilele (W) | One hundred two |
| Kiunganishi cha kuingiza data | IEC 320-C14 |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 167.00 |
| Maelezo Marefu | Source Switched type desktop adapter.Range of Universal Input85-264vac47-63Hz.Output voltage12vdc.Output intensity8.5. Current range of output 0-8,5 according To the demand load.Power:102W.Power input connectorIEC320-C14.Output connector typeDIN 4-pin(other connectors available with minimum quantities).Active PFC >of 0.91 to 230vac >0.95 at 115vac.Temperature range: From -30ºC to +70ºC (refer to the load levels according to the ambient temperature in the technical data sheet)Protections: short circuits, overloads, and overvoltage output and temperature.LED Indicator of correct operation.Class I Insulation with earth.Dimensions (Length x Width x Height) [mm]:167 x 67 x 35.3 years of warranty.Manufacturer: MEAN WELL.The series GST120 these sources are switched in the format of a desktop of high reliability, high efficiency and low consumption without load (<0.15 W).These feeders desktop complies with the latest requirements of energy efficiency and ecological design as are EISA 2007/us DoE to the united States, NR CAN Canada, the MEPS for Australia and New Zealand and the code of conduct (CoC) Version 5 for Europe.Are certified CE (Europe), UL (for united States and Canada), BSMI (for Taiwan), CCC (China), PSE (for Japan), RCM (Australia and New Zealand), KCC (Korea), BIS (India), EAC (Russia, Belarus, Armenia andKazakhstan), SIRIM (Malaysia) and holds certification CB, and TUV. This, coupled with their high efficiency and minimum consumption, no-load make them perfect for all types of applications.Network Cable not included. |
| Kiunganishi cha kutoa | R7B DIN 4p |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Source Switched type desktop adapter.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
