G-INSEC-M63-L68N-NCRS-S

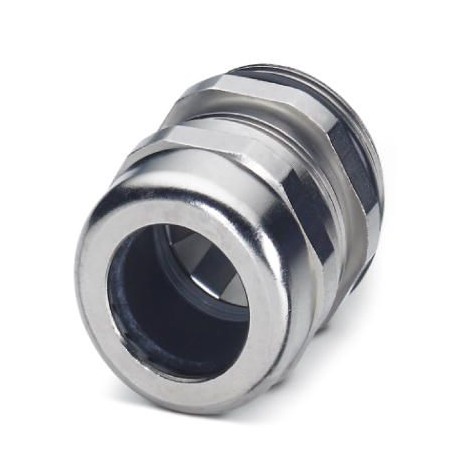

G-INSEC-M63-L68N-NCRS-S 1411194 PHOENIX CONTACT Cable gland
$0.00USD
4630 kwenye hisa
Vipimo Muhimu
GTIN:4046356923255
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:1411194
Ukurasa wa katalogi:Page 698 (C-2-2017)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356923255 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 1411194 |
| Ukurasa wa katalogi | Page 698 (C-2-2017) |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | DE (Germany) |
| Nambari ya ushuru maalum | 74199990 |
| (Hali ya mazingira) | 13.5 Nm (Support: EN 62444) |
| Haina Halojeni (Jumla) | no |
| Rangi (Hali ya mazingira) | silver |
| Torque (Hali ya mazingira) | 13.5 Nm (Union nut: EN 62444) |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Urefu (Data Muhimu ya Kibiashara) | 52 mm |
| Imefunikwa (Hali ya mazingira) | yes |
| Muunganisho (Hali za mazingira) | Method 1Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring.Method 2Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. |
| Kategoria ya athari (Hali za mazingira) | 7 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 379.300 g |
| Nyenzo, kiingilio (Hali ya mazingira) | Polyamide 6 |
| Nyenzo ya kuziba (Hali ya mazingira) | Perbunan (O-ring) |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Kiwango cha ulinzi (IP) (Vipimo) | IP68 (5 bar, 30 minutes) |
| Idadi ya kondakta (Hali ya mazingira) | 1 |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Nyenzo ya kuziba kebo (Hali ya mazingira) | CR / NBR |
| Nyenzo ya tezi ya kebo (Hali ya mazingira) | Nickel-plated brass |
| Muunganisho katika acc. na kiwango (Jumla) | CUL |
| Ukubwa wa bisibisi, usaidizi (Data Muhimu ya Kibiashara) | 65 mm |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 100 °C (static) |
| Ukubwa wa bisibisi, nati ya muungano (Takwimu Muhimu za Kibiashara) | 65 mm |
| Kipenyo cha kebo ya nje (Data Muhimu ya Biashara) | 32 mm ... 42 mm |
| Kipimo cha pembe ya hexagon (Data Muhimu ya Kibiashara) | 70 mm |
| Kipenyo cha shimo linalopita (Data Muhimu ya Biashara) | 63.1 mm ... 63.3 mm |
| Upande wa muunganisho wa aina ya uzi (Hali ya mazingira) | M63 x 1.5 |
| Utekelezaji wa unafuu wa mkazo (Hali za mazingira) | A |
| Aina ya uzi upande wa muunganisho (Hali ya mazingira) | M63 |
| Urefu wa uzi unaounganisha (Data Muhimu ya Kibiashara) | 10 mm |
Maelezo ya Bidhaa
Cable gland, screwed connection material: Brass, nickel-plated, cable outer diameter 32 mm ... 42 mm, shielding: yes, connection thread: M63 x 1.5, colour: silver, with O-ring
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
