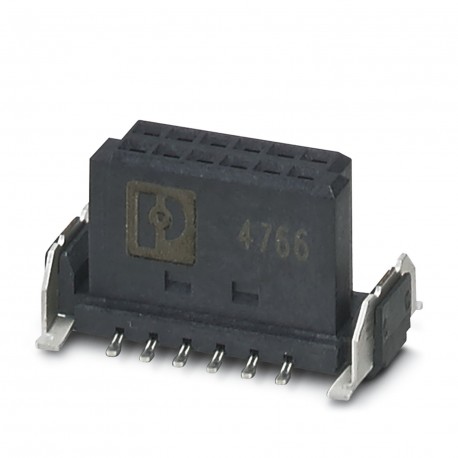

FP 1,27/ 68-FV 6,25
FP 1,27/ 68-FV 6,25 1714899 PHOENIX CONTACT Plug, SMD, rated Current to 20A °C: 1.4 A, test Voltage: 500 V A..
$0.00USD
4845 kwenye hisa
Vipimo Muhimu
:9.5 mm Tolerance: +1.5 mm (in combination with Article Family:FP 1.27/...-MV 3.25)
Hatua:1.27 mm
noti:Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Matokeo:Test passed
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 9.5 mm Tolerance: +1.5 mm (in combination with Article Family:FP 1.27/...-MV 3.25) | |
| Hatua | 1.27 mm |
| noti | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Matokeo | Test passed |
| Mchakato | Reflow soldering |
| Upeo | 1.5 mm (10 Hz ... 60.1 Hz) |
| Kiwango cha ESD | (D) Anti-static |
| Masafa | 10 - 2000 - 10 Hz |
| Ufungashaji | Tape width 72 mm |
| Upana [w] | 48.27 mm |
| Urefu [h] | 6.95 mm |
| Urefu [l] | 7.2 mm |
| Mpangilio wa Pin | Linear Pad Geometry |
| Fomu ya Mshtuko | Semi-sinusoidal |
| Kasi ya Kufagia | 1 octave/min |
| Kuongeza kasi | 20g (60.1 Hz ... 2000 Hz) |
| Rangi (Kisanduku) | Black (9005) |
| Jiometri ya Pedi | 0.8 x 1.1 mm |
| Aina ya Bidhaa | SMD Socket |
| Volti ya majaribio | 500 V AC IEC 60512-4-1:2003 |
| Aina ya kupachika | SMD Soldering |
| Article review | 00 |
| Upana wa mkanda [W] | 72 mm |
| Idadi ya safu mlalo | 2 |
| Familia ya Bidhaa | FR 1.27/...-FV 6.25 |
| Shank Distance | 1.27 mm |
| Muda wa Mshtuko | 11 ms |
| Urefu Uliopangwa kwa Mrundikano | 8 mm Tolerance: +1.5 mm (in combination with Family Item:FP 1.27/...-MV 1.75) |
| Kumaliza Uso | Selective Coating |
| Idadi ya nguzo | 68 |
| Maelekezo ya Mtihani | X, Y, and Z axis |
| Ufikiaji wa Mawasiliano | 0.9 mm |
| Nyenzo ya Mawasiliano | Cu Alloy |
| Volti ya AC isiyobadilika | 500 V AC |
| Upinzani wa Misa | 25 mΩ |
| Idadi ya mizunguko | 500 |
| Imekadiriwa Sasa IN | 1.4 A IEC 60512-5-2:2002-02 (at 20 °C at 50 poles) |
| Uvumilivu wa Angular | ± 4° in longitudinal axis |
| Kipenyo cha koili [A] | 330 mm |
| Urefu wa Muunganisho | 1.5 mm |
| Aina ya kifungashio | Transparent bag |
| Mizunguko ya ujanja | 500 |
| Dokezo la Uendeshaji | The permissible voltage during operation is deduced according to the application by considering creepage and creepage distances within the scope of the insulation requirements according to IEC 60664-1. |
| Vipimo vya Mtihani | IEC 60068-2-70:1995-12 |
| Mchoro wa Vipimo | |
| Urefu wa Ufungaji | 6.25 mm |
| Nyenzo ya insulation | LCP |
| Upinzani wa Misa R1 | 25 mΩ |
| Upinzani wa Misa R2 | 25 mΩ |
| Kuhamisha msingi wa gurudumu | ± 0.7 mm in longitudinal and transverse axis |
| Idadi ya uwezo | 68 |
| Idadi ya nguzo zilizojaribiwa | 50 |
| Muda wa jaribio kwa kila ekseli | 2.5 h |
| Ukubwa wa nje wa koili [W2] | 78.4 mm |
| Mkazo unaosababishwa na kutu | Method 1, 10 days |
| Kiwango cha Unyevu Kinachoathiriwa na Unyevu | MSL 1 |
| Kikundi cha Nyenzo za Insulation | IIIb |
| CTI kulingana na IEC 60112 | 175 |
| Uainishaji wa Joto Tc | 260 °C |
| Halijoto ya kawaida (kuweka) | -5 °C ... 100 °C |
| Nguvu ya mvutano kwa kila nguzo takriban. | 0.5 N |
| Halijoto ya mazingira (inayofanya kazi) | -55 °C ... 125 °C |
| Nguvu ya kuingiza kwa kila nguzo takriban. | 0.5 N |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Darasa la mwako kulingana na UL 94 | V0 |
| Mvutano wa msukumo wima juu ya usawa wa bahari | 0.8 kV |
| Eneo la mguso wa uso wa chuma (safu ya kati) | Nickel (Ni) Palladium-nickel, (PdNi) |
| Unyevu wa jamaa (usafiri na uhifadhi) | 30 % ... 70 % |
| Eneo la Kuchomea Chuma Uso (Safu ya Uso) | Pond (Sn) |
| Eneo la mguso wa uso wa chuma (safu ya uso) | Gold (Au) |
| Thamani ya chini kabisa ya umbali wa hewa na uso | 0.4 mm |
| Upinzani wa Insulation Kati ya Nguzo Zilizoungana | ≥ 10 GΩ |
Maelezo ya Bidhaa
SMD plug pin, rated current: 1.4 A, Test voltage: 500 V AC, number of poles: 68, pitch: 1.27 mm, color: black, contact surface: Gold, contact type: Female connection, mounting: SMD welding
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
