FLK 20/2FLK14/EZ-DR/500/KONFEK

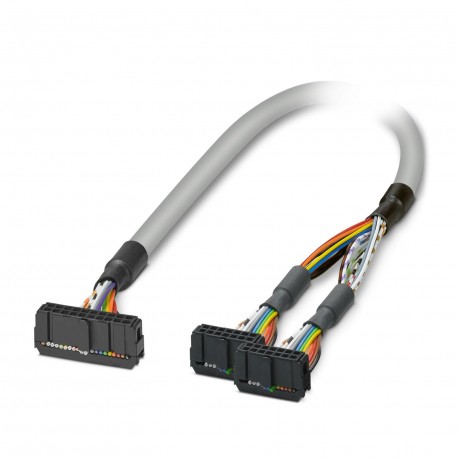

FLK 20/2FLK14/EZ-DR/500/KONFEK 2902707 PHOENIX CONTACT Cable
$0.00USD
4764 kwenye hisa
Vipimo Muhimu
:-10 °C ... 70 °C (flexible installation)
nyekundu:IDC/FLK20 (3) = IDC/FLK14-1 (3)
bluu:IDC/FLK20 (7) = IDC/FLK14-1 (7)
kijivu:IDC/FLK20 (9) = IDC/FLK14-2 (1)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -10 °C ... 70 °C (flexible installation) | |
| nyekundu | IDC/FLK20 (3) = IDC/FLK14-1 (3) |
| bluu | IDC/FLK20 (7) = IDC/FLK14-1 (7) |
| kijivu | IDC/FLK20 (9) = IDC/FLK14-2 (1) |
| Lami | 2.54 mm |
| nyeusi | IDC/FLK20 (1) = IDC/FLK14-1 (1) |
| kahawia | IDC/FLK20 (2) = IDC/FLK14-1 (2) |
| kijani | IDC/FLK20 (6) = IDC/FLK14-1 (6) |
| nyeupe | IDC/FLK20 (10) = IDC/FLK14-2 (2) |
| chungwa | IDC/FLK20 (4) = IDC/FLK14-1 (4) |
| zambarau | IDC/FLK20 (8) = IDC/FLK14-1 (8) |
| njano | IDC/FLK20 (5) = IDC/FLK14-1 (5) |
| Urefu | ≤ 2000 m |
| Imehifadhiwa | no |
| nyeupe-nyekundu | IDC/FLK20 (13) = IDC/FLK14-2 (5) |
| Aina ya kebo | 20X0.14 [PVC] |
| nyeupe-bluu | IDC/FLK20 (17) = IDC/FLK14-2 (9) |
| nyeupe-kijivu | IDC/FLK20 (19) = IDC/FLK14-1 (9) |
| kahawia-nyeusi | IDC/FLK20 (20) = IDC/FLK14-1 (10) |
| nyeupe-nyeusi | IDC/FLK20 (11) = IDC/FLK14-2 (3) |
| nyeupe-kahawia | IDC/FLK20 (12) = IDC/FLK14-2 (4) |
| nyeupe-kijani | IDC/FLK20 (16) = IDC/FLK14-2 (8) |
| Urefu wa kebo | 5 m |
| Haina halojeni | no |
| Aina ya bidhaa | System cable |
| Mtindo wa UL AWM | 2464/1061 |
| nyeupe-machungwa | IDC/FLK20 (14) = IDC/FLK14-2 (6) |
| nyeupe-zambarau | IDC/FLK20 (18) = IDC/FLK14-2 (10) |
| nyeupe-njano | IDC/FLK20 (15) = IDC/FLK14-2 (7) |
| Aina ya kondakta | Round cable set |
| Mstari wa ishara wa AWG | 26 |
| Marekebisho ya makala | 03 |
| Upinzani wa kebo | ≤ 145 Ω/km (20 °C) |
| Upinzani wa moto | IEC 60332-1-2 (raw cable) |
| Mbinu ya muunganisho | IDC/FLK socket strip |
| Upinzani dhidi ya mafuta | can withstand occasional splashes (raw cable) |
| Kadi ya I/O inayofaa | VE4001S2T2B5 |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Maelezo kuhusu uendeshaji | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Kitengo cha msingi kinachofaa | 6ES7193-6BP00-0BA0 |
| Idadi ya nafasi | 20 |
| Moduli inayofaa ya I/O | 6ES7131-6BH01-0BA0 (Base Units A0/A1) |
| Kiwango cha ulinzi | IP00 |
| Upinzani wa insulation | ≥ 20 MΩ*km (20 °C) |
| Idadi ya miunganisho | 1 |
| Ala ya nje, rangi | gray |
| Hali ya uendeshaji ya nominella | 100% operating factor |
| Volti ya uendeshaji (AC) | ≤ 30 V AC |
| Volti ya uendeshaji (DC) | ≤ 60 V DC |
| Ala ya nje, nyenzo | Semi-rigid PVC |
| Sehemu ya msalaba ya kondakta | 20x 0.14 mm² |
| Kipenyo cha kebo ya nje | 7.60 mm ±0.4 mm |
| Mkondo (Kwa kila njia, 50°C) | ≤ 1 A (Uncoiled, see derating) |
| Mkondo (Kwa kila njia, 70°C) | ≤ 0.6 A (Uncoiled, see derating) |
| Mizunguko ya kuingiza/kutoa | > 50 |
| Kipenyo cha waya ikijumuisha insulation | 1 mm ±0.03 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C (fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.16 mm |
| Uwezo wa mzigo unaobadilika (kuinama) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
| Muunganisho katika acc. na kiwango cha kawaida | based on IEC 60603-13 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 80 °C |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 64 mm |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 (Installation location) |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 120 mm |
Maelezo ya Bidhaa
Ready-made round cable; Connection 1: Female IDC/FLK connection (1x 20-poles); Connection 2: Female IDC/FLK connection (2x 14-pole); Cable length: 5 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
