FLK 16/24/DV-AI/EZ-DR/200/S

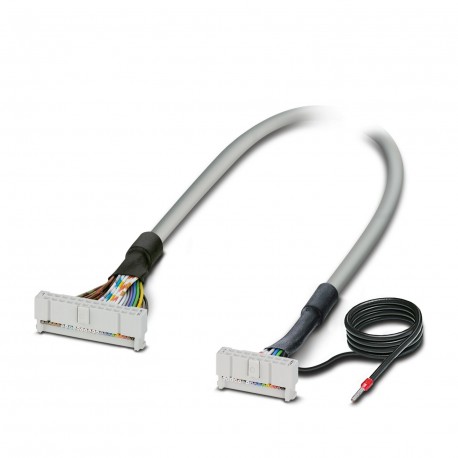

FLK 16/24/DV-AI/EZ-DR/200/S 2304571 PHOENIX CONTACT Cable
$0.00USD
4564 kwenye hisa
Vipimo Muhimu
:-10 °C ... 70 °C (flexible installation)
Lami:2.54 mm
Urefu:≤ 2000 m
Imehifadhiwa:yes
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -10 °C ... 70 °C (flexible installation) | |
| Lami | 2.54 mm |
| Urefu | ≤ 2000 m |
| Imehifadhiwa | yes |
| Aina ya kebo | 16X0.14 [PVC] |
| Insulation | Functional insulation |
| Urefu wa kebo | 2 m |
| Haina halojeni | no |
| Aina ya bidhaa | System cable |
| Aina ya kondakta | Assembled shielded round cable |
| Mstari wa ishara wa AWG | 26 |
| Upinzani wa kebo | ≤ 145 Ω/km (20 °C) |
| Upinzani wa moto | IEC 60332-1-2 (raw cable) |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Mbinu ya muunganisho | IDC/FLK socket strip |
| Upinzani dhidi ya mafuta | can withstand occasional splashes (raw cable) |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Maelezo kuhusu uendeshaji | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Idadi ya nafasi | 16 |
| Volti ya kuongezeka iliyokadiriwa | 0.6 kV |
| Kiwango cha ulinzi | IP00 |
| Kategoria ya volteji nyingi | II |
| Upinzani wa insulation | ≥ 20 MΩ*km (20 °C) |
| Idadi ya miunganisho | 1 |
| Viwango/kanuni | DIN EN 50178 |
| Ala ya nje, rangi | gray |
| Hali ya uendeshaji ya nominella | 100% operating factor |
| Volti ya uendeshaji (AC) | ≤ 25 V AC |
| Volti ya uendeshaji (DC) | ≤ 60 V DC |
| Ala ya nje, nyenzo | Semi-rigid PVC |
| Sehemu ya msalaba ya kondakta | 16x 0.14 mm² |
| Kipenyo cha kebo ya nje | 7.00 mm ±0.4 mm |
| Volti ya insulation iliyokadiriwa | 63 V |
| Mkondo (Kwa kila njia, 50°C) | ≤ 1 A |
| Mkondo (Kwa kila njia, 70°C) | ≤ 0.6 A |
| Mizunguko ya kuingiza/kutoa | > 50 |
| Kipenyo cha waya ikijumuisha insulation | 1 mm ±0.03 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C (fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.16 mm |
| Uwezo wa mzigo unaobadilika (kuinama) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
| Muunganisho katika acc. na kiwango cha kawaida | IEC 60603-13 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 80 °C |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 74 mm |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 (Installation location) |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 133 mm |
Maelezo ya Bidhaa
Shielded ready-made round cable; control: Emerson Delta V; Connection 1: Female IDC/FLK connection (1x 24-poles); Connection 2: Female IDC/FLK connection (1x 16-pole); Cable length: 2 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
