FK-MPT 0,5/ 5-3,5

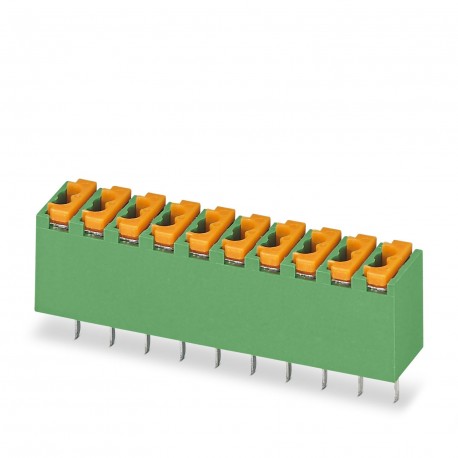

FK-MPT 0,5/ 5-3,5 1891098 PHOENIX CONTACT PCB terminal block
$0.00USD
4036 kwenye hisa
Vipimo Muhimu
:0.5 mm² / solid / > 30 N
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Aina:PC termination block
Lami:3.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 0.5 mm² / solid / > 30 N | |
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Aina | PC termination block |
| Lami | 3.5 mm |
| Matokeo | Test passed |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 18 mm |
| Urefu [h] | 13 mm |
| Urefu [l] | 7 mm |
| Mpangilio wa pini | Linear pinning |
| Kasi ya kufagia | 1 octave/min |
| Kuongeza kasi | 5g (60.1 Hz ... 150 Hz) |
| Mstari wa bidhaa | COMBICON Terminals XS |
| Aina ya bidhaa | Printed circuit board terminal |
| Kipenyo cha shimo | 1 mm |
| Aina ya kupachika | Wave soldering |
| Vipimo | IEC 60999-1:1990-05 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 0.35 x 0.9 mm |
| Familia ya bidhaa | FK-MPT 0,5/..-V |
| Rangi (Nyumba) | green (6021) |
| Flange ya kupachika | without |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 02 |
| Nyenzo ya mawasiliano | Steel/copper |
| Urefu uliowekwa | 9.5 mm |
| Urefu wa kukatwa | 6.5 mm |
| Mbinu ya muunganisho | Push-in spring connection |
| Aina ya kifungashio | packed in cardboard |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 250 V |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PBT |
| Idadi ya nafasi | 5 |
| Idadi ya uwezo | 5 |
| Volti iliyokadiriwa (II/2) | 250 V |
| Idadi ya miunganisho | 10 |
| Volti iliyokadiriwa (III/2) | 250 V |
| Volti iliyokadiriwa (III/3) | 160 V |
| Urefu wa pini ya solder [P] | 3.5 mm |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | Tin-plated |
| Rangi (Kipengele kinachoamilisha) | orange (2003) |
| Kikundi cha nyenzo za kuhami joto | IIIa |
| Pini za solder kwa kila uwezo | 1 |
| CTI kulingana na IEC 60112 | 225 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 2.5 kV |
| Sehemu ya msalaba ya kondakta AWG | 26 ... 20 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 2.5 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 2.5 kV |
| Sehemu ngumu ya kondakta | 0.12 mm² ... 0.5 mm² |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 250 V |
| Volti ya insulation iliyokadiriwa (III/2) | 250 V |
| Volti ya insulation iliyokadiriwa (III/3) | 160 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 2.5 mm |
| Jaribio la kupanda kwa joto linalohitajika | Increase in temperature ≤ 45 K |
| umbali wa chini kabisa (III/2) | 2.5 mm |
| umbali wa chini kabisa (III/3) | 2.5 mm |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 225 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Tin (5 - 7 µm Sn) |
| Sehemu ya mwisho ya uso wa chuma (safu ya juu) | Tin (5 - 7 µm Sn) |
| Eneo la kusugulia uso wa chuma (safu ya kati) | Copper (2 - 3 µm Cu) |
| Sehemu ya mwisho ya uso wa chuma (safu ya kati) | Copper (2 - 3 µm Cu) |
| Upinzani wa insulation, nafasi za jirani | 1012Ω |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 1.5 mm |
| Sehemu mtambuka ya kondakta/aina ya kondakta/sehemu ya nguvu ya mvuto/thamani halisi | 0.14 mm² / solid / > 10 N |
Maelezo ya Bidhaa
Terminal block for printed circuit board, nominal current: 4 A, nominal voltage (III/2): 250 V, nominal section: 0.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
