EV-TDG3JK-1AC16A-5,0M2,5ESBK01

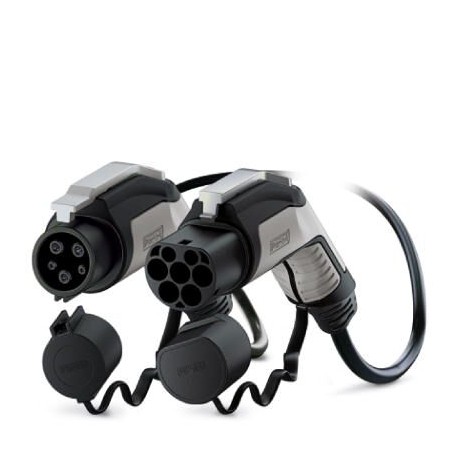

EV-TDG3JK-1AC16A-5,0M2,5ESBK01 1627756 PHOENIX CONTACT AC charging cable, Mobile AC charging cable with Vehi..
$0.00USD
4838 kwenye hisa
Vipimo Muhimu
GTIN:4055626352237
Ufunguo wa kuagiza:1627756
(Kufunga):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
(Michoro):GB/T
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626352237 |
| Ufunguo wa kuagiza | 1627756 |
| (Kufunga) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| (Michoro) | GB/T |
| Ukurasa wa katalogi | Page 33 (C-7-2019) |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | IP54 (Protective cap) |
| Type (Drawings) | C-Line black / gray |
| UNSPSC 11 (ETIM) | 39121522 |
| ETIM 3.0 (eCl@ss) | EC002061 |
| ETIM 4.0 (eCl@ss) | EC002061 |
| ETIM 5.0 (eCl@ss) | EC002839 |
| ETIM 6.0 (eCl@ss) | EC002897 |
| ETIM 7.0 (eCl@ss) | EC002897 |
| UNSPSC 13.2 (ETIM) | 39121522 |
| UNSPSC 18.0 (ETIM) | 39121522 |
| UNSPSC 19.0 (ETIM) | 39121522 |
| UNSPSC 20.0 (ETIM) | 39121522 |
| UNSPSC 21.0 (ETIM) | 39121522 |
| UNSPSC 6.01 (ETIM) | 30211923 |
| UNSPSC 12.01 (ETIM) | 39121522 |
| RoHS ya Uchina (Kufunga) | Environmentally Friendly Use Period = 10; |
| Nambari ya ushuru maalum | 85444290 |
| Aina ya kufunga (Kebo) | Locking option for actuating lever with 4 mm U-lock |
| REACh SVHC (Locking) | |
| UNSPSC 7.0901 (ETIM) | 39121522 |
| (Hali ya mazingira) | 680 Ω (Lever not actuated) |
| Aina ya bidhaa (Michoro) | Mobile AC charging cable with Vehicle Connector and Infrastructure Plug, with locking option for U-lock, with protective caps |
| Darasa la waya (Nyenzo) | Class 5 |
| Charging mode (Drawings) | Mode 3, Case B |
| Nyenzo za makazi (Ubunifu) | Plastic |
| Muundo wa kebo (Nyenzo) | 3 x 2.5 mm² + 1 x 0.5 mm² |
| Urefu wa juu zaidi (Vipimo) | 5000 m (above sea level) |
| Cable resistance (Material) | ≤ 0.00798 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Charging standard (Drawings) | Type 1 |
| Ukadiriaji wa kuwaka (Ubunifu) | V0 |
| Aina ya kondakta (Nyenzo) | straight |
| eCl@ss 4.0 (Uainishaji) | 27140800 |
| eCl@ss 4.1 (Uainishaji) | 27140800 |
| eCl@ss 5.0 (Uainishaji) | 27143400 |
| eCl@ss 5.1 (Uainishaji) | 27143400 |
| eCl@ss 6.0 (Uainishaji) | 27143400 |
| eCl@ss 7.0 (Uainishaji) | 27449001 |
| eCl@ss 8.0 (Uainishaji) | 27449001 |
| eCl@ss 9.0 (Uainishaji) | 27144705 |
| Eneo la kushughulikia nyenzo (Ubunifu) | Soft plastic |
| Uso wa kuoanisha nyenzo (Ubunifu) | Plastic |
| Kifuniko cha kinga cha nyenzo (Muundo) | Soft plastic |
| Viwango/kanuni (Michoro) | GB/T 20234.2-2015 |
| Vyeti vya waya (Nyenzo) | VDE |
| Nyenzo ya lever inayoendesha (Ubunifu) | Metal |
| Kiwango cha ulinzi (Vipimo) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Ala ya nje, rangi (Nyenzo) | black |
| Kipenyo cha chini kabisa cha kupinda (Nyenzo) | 153 mm (15 x diameter) |
| Ala ya nje, nyenzo (Nyenzo) | TPE-U |
| Kipenyo cha kebo ya nje (Nyenzo) | 10.2 mm ±0,3 mm |
| Mstari wa muundo (Sifa za mitambo) | C-Line |
| Msimbo wa kipingamizi (Hali za mazingira) | 680 Ω + 2.7 kΩ (Lever actuated) |
| Urefu wa kondakta (Ufafanuzi wa Bidhaa) | 5 m |
| Rangi ya nyumba (Sifa za mitambo) | black |
| Uso wa nyenzo wa mguso (Ubunifu) | Ag |
| Idadi ya awamu (Hali za mazingira) | 1 |
| Urefu wa kukatwa (Ufafanuzi wa Bidhaa) | 60 mm ±15 mm |
| Nguvu ya kuingiza (Sifa za umeme) | < 75 N |
| Viwango/kanuni za waya (Nyenzo) | prEN 50620 / DIN EN 50620 |
| Nguvu ya uondoaji (Sifa za umeme) | < 75 N |
| Eneo la mpini wa rangi (Sifa za mitambo) | gray |
| Rangi ya uso wa kujamiiana (Sifa za kiufundi) | black |
| Tofauti za wateja (Sifa za mitambo) | On request |
| Nguvu ya juu zaidi ya kuchaji (Hali ya mazingira) | 4 kW |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -30 °C ... 50 °C |
| Kifuniko cha kinga ya rangi (Sifa za mitambo) | black |
| Kina cha kiunganishi cha gari (Ufafanuzi wa bidhaa) | 236.10 mm |
| Upana wa kiunganishi cha gari (Ufafanuzi wa bidhaa) | 58.00 mm |
| Idadi ya migusano ya umeme (Hali ya mazingira) | 3 (L, N, PE) |
| Urefu wa kiunganishi cha gari (Ufafanuzi wa bidhaa) | 151.10 mm |
| Kina cha kuziba miundombinu (Ufafanuzi wa bidhaa) | 249.20 mm |
| Upana wa plagi ya miundombinu (Ufafanuzi wa bidhaa) | 58.00 mm |
| Idadi ya mawasiliano ya mawimbi (Hali za mazingira) | 2 (CP, CC) |
| Rangi ya kipengele kinachoendesha (Sifa za mitambo) | silver |
| Dimensional drawingVehicle connector (Drawings) | |
| Urefu wa plagi ya miundombinu (Ufafanuzi wa bidhaa) | 151.30 mm |
| Aina ya uwasilishaji wa mawimbi (Hali za mazingira) | Pulse width modulation |
| Dokezo kuhusu njia ya muunganisho (Hali za mazingira) | Crimp connection, cannot be disconnected |
| Mizunguko ya kuingiza/kutoa (Sifa za umeme) | > 10000 |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 80 °C |
| Mkondo wa umeme uliokadiriwa (Hali za mazingira) | 16 A |
| Volti iliyokadiriwa kwa mawasiliano ya nguvu (Hali za mazingira) | 250 V |
| Mkondo uliokadiriwa kwa mawasiliano ya mawimbi (Hali za mazingira) | 2 A |
| Volti iliyokadiriwa kwa mawasiliano ya mawimbi (Hali za mazingira) | 30 V AC |
| Connection diagramPin assignment of the Vehicle Connector (Drawings) |
Maelezo ya Bidhaa
CHARX connect, Mobile AC charging cable with charging connectors for vehicles and infrastructures, with caps, Black-grey housing colour, with lock option for padlock, for alternating current (AC) char
