EV-T2G3C-1AC32A-8,0M6,0ESBK01

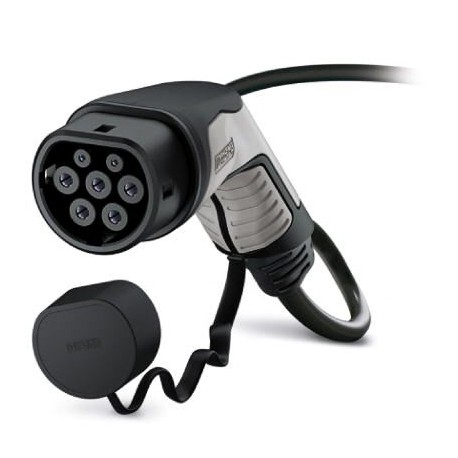

EV-T2G3C-1AC32A-8,0M6,0ESBK01 1053099 PHOENIX CONTACT AC charging cable, AC charging cable with Vehicle Conn..
$0.00USD
3169 kwenye hisa
Vipimo Muhimu
GTIN:4055626677880
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1053099
(Michoro):Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1).
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626677880 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1053099 |
| (Michoro) | Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | IP54 (Protective cap) |
| Dokezo (Michoro) | NOTE: Cable management may be required. |
| Type (Drawings) | C-Line black / gray |
| ETIM 6.0 (eCl@ss) | EC002897 |
| ETIM 7.0 (eCl@ss) | EC002897 |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 10; |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| Aina ya bidhaa (Michoro) | AC charging cable with Vehicle Connector, open cable end, with protective cap |
| Darasa la waya (Nyenzo) | Class 5 |
| Charging mode (Drawings) | Mode 3, Case C |
| Nyenzo za makazi (Ubunifu) | Plastic |
| Muundo wa kebo (Nyenzo) | 3 x 6.0 mm² + 1 x 0.5 mm² |
| Urefu wa juu zaidi (Vipimo) | 5000 m (above sea level) |
| Cable resistance (Material) | ≤ 0.00798 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Charging standard (Drawings) | Type 2 |
| Ukadiriaji wa kuwaka (Ubunifu) | V0 |
| Aina ya kondakta (Nyenzo) | straight |
| eCl@ss 9.0 (Uainishaji) | 27144705 |
| Eneo la kushughulikia nyenzo (Ubunifu) | Soft plastic |
| Uso wa kuoanisha nyenzo (Ubunifu) | Plastic |
| Kifuniko cha kinga cha nyenzo (Muundo) | Soft plastic |
| Viwango/kanuni (Michoro) | IEC 62196-2 |
| Vyeti vya waya (Nyenzo) | VDE |
| Kiwango cha ulinzi (Vipimo) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Ala ya nje, rangi (Nyenzo) | black |
| Kipenyo cha chini kabisa cha kupinda (Nyenzo) | 192 mm (15 x diameter) |
| Ala ya nje, nyenzo (Nyenzo) | TPE-U |
| Kipenyo cha kebo ya nje (Nyenzo) | 12.8 mm ±0.4 mm |
| Mstari wa muundo (Sifa za mitambo) | C-Line |
| Msimbo wa kipingamizi (Hali za mazingira) | 220 Ω (between PE and PP) |
| Urefu wa kondakta (Ufafanuzi wa Bidhaa) | 8 m |
| Rangi ya nyumba (Sifa za mitambo) | black |
| Uso wa nyenzo wa mguso (Ubunifu) | Ag |
| Idadi ya awamu (Hali za mazingira) | 1 |
| Nguvu ya kuingiza (Sifa za umeme) | < 100 N |
| Viwango/kanuni za waya (Nyenzo) | prEN 50620 / DIN EN 50620 |
| Nguvu ya uondoaji (Sifa za umeme) | < 100 N |
| Eneo la mpini wa rangi (Sifa za mitambo) | gray |
| Rangi ya uso wa kujamiiana (Sifa za kiufundi) | black |
| Tofauti za wateja (Sifa za mitambo) | On request |
| Nguvu ya juu zaidi ya kuchaji (Hali ya mazingira) | 8 kW |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -30 °C ... 50 °C |
| Kifuniko cha kinga ya rangi (Sifa za mitambo) | black |
| Kina cha kiunganishi cha gari (Ufafanuzi wa bidhaa) | 215.90 mm |
| Upana wa kiunganishi cha gari (Ufafanuzi wa bidhaa) | 70.00 mm |
| Idadi ya migusano ya umeme (Hali ya mazingira) | 3 (L1, N, PE) |
| Urefu wa kiunganishi cha gari (Ufafanuzi wa bidhaa) | 137.00 mm |
| Idadi ya mawasiliano ya mawimbi (Hali za mazingira) | 2 (CP, PP) |
| Aina ya uwasilishaji wa mawimbi (Hali za mazingira) | Pulse width modulation |
| Dokezo kuhusu njia ya muunganisho (Hali za mazingira) | Crimp connection, cannot be disconnected |
| Mizunguko ya kuingiza/kutoa (Sifa za umeme) | > 10000 |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 80 °C |
| Mkondo wa umeme uliokadiriwa (Hali za mazingira) | 32 A |
| Volti iliyokadiriwa kwa mawasiliano ya nguvu (Hali za mazingira) | 250 V AC |
| Mkondo uliokadiriwa kwa mawasiliano ya mawimbi (Hali za mazingira) | 2 A |
| Volti iliyokadiriwa kwa mawasiliano ya mawimbi (Hali za mazingira) | 30 V AC |
| Schematic diagramPin assignment of the Vehicle Connector (Drawings) | |
| Dimensional drawingEnsure that the vehicle connector is placed in an appropriate resting position that ensures a minimum protection rating of IP24 in accordance with IEC 61851-1 for the entire time between charging. Use the dimensions of the vehicle connector to create this type of resting position. Detailed specifications can also be found in the download area. (Drawings) |
Maelezo ya Bidhaa
CHARX connect, AC charging cable, with vehicle charging connector and open cable end, For alternating current (AC) charging electric vehicles (EV) with type 2 vehicle charging inputs, With cap, Type 2
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingEnsure that the vehicle connector is placed in an appropriate resting position that ensures a minimum protection rating of IP24 in accordance with IEC 61851-1 for the entire time between charging. Use the dimensions of the vehicle connector to create this type of resting position. Detailed specifications can also be found in the download area.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
