EMD-BL-PTC

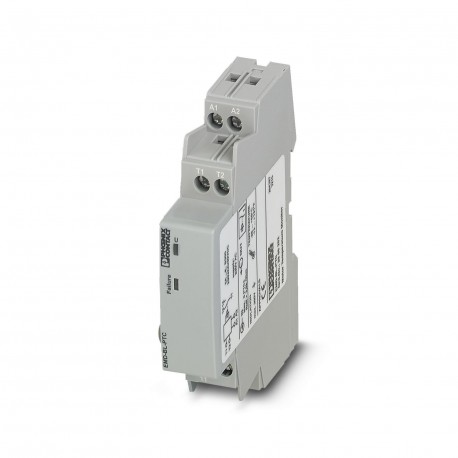

EMD-BL-PTC 2906252 PHOENIX CONTACT Monitoring relay
$0.00USD
4256 kwenye hisa
Vipimo Muhimu
Rangi:gray (RAL 7042)
Kina:65.5 mm
Weka upya:Autoreset
Upana:17.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Rangi | gray (RAL 7042) |
| Kina | 65.5 mm |
| Weka upya | Autoreset |
| Upana | 17.5 mm |
| Urefu | 89.5 mm |
| Kazi | Winding temperature monitoring |
| Jina la kuingiza | Measuring input |
| Cheti | CE-compliant |
| Fuse ya kutoa | 5 A (fast-blow) |
| Aina ya bidhaa | Temperature monitoring relay |
| Dokezo la mkutano | on standard DIN rail NS 35 in accordance with EN 60715 |
| Aina ya kupachika | DIN rail mounting |
| Muda wa kupona | > 300 ms |
| Thamani ya kutolewa | ≤ 1.6 kΩ (Relay picks up) |
| Usahihi wa msingi | ± 10 % (of scale end value) |
| Utoaji wa kelele | EN 61000-6-3 |
| Kinga ya kelele | EN 61000-6-2 |
| Hali ya uendeshaji | 100% operating factor |
| Kuchelewa kwa majibu | < 100 ms |
| Thamani ya majibu | ≥ 3.6 kΩ (Relay drops out) |
| Volti ya usambazaji | 230 V AC (-15 % ... +10 %) |
| Masafa ya masafa | 50 Hz ... 60 Hz |
| Kuchelewa kuwasha | < 450 ms |
| Marekebisho ya makala | 00 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | any |
| Nambari (kihisi cha PTC) | 6 (1 x 6 PTCs) |
| Volti ya kuongezeka iliyokadiriwa | 4 kV |
| Kategoria ya volteji nyingi | III |
| Kiwango cha voltage ya usambazaji | 195.5 V AC ... 253 V AC |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Volti ya juu zaidi ya kuingiza | 4 V DC (connection terminal blocks: T1 and T2) |
| Viwango/kanuni | IEC 60947-5-1 |
| Upinzani kamili wa baridi | ≤ 1.5 kΩ |
| Aina ya ubadilishaji wa mguso | 1 floating changeover contact |
| Maisha ya huduma ya mitambo | 15x 106cycles |
| Muda wa huduma ya umeme | 1x 105cycles |
| Ugunduzi wa mzunguko mfupi | < 20 Ω |
| Volti ya juu zaidi ya kubadili | 250 V AC (in acc. with IEC 60947-5-1) |
| Matumizi ya nguvu ya kawaida | 3.5 VA (0.5 W) |
| Sehemu ya msalaba ya kondakta AWG | 20 ... 14 |
| Nyenzo ya kuhami joto ya nyumba | Polyamide PA 6.6, self-extinguishing |
| Sehemu ngumu ya kondakta | 0.5 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Kiwango cha ulinzi (Makazi) | IP40 (Housing) |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 55 °C |
| Kiwango cha juu cha mgawo wa joto | < 0.05 %/K |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.5 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 15 % ... 85 % |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 1250 VA (5 A / 250 V AC) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -25 °C ... 70 °C |
| Kiwango cha ulinzi (Vizuizi vya terminal ya muunganisho) | IP20 (Connection terminal blocks) |
Maelezo ya Bidhaa
Motor winding temperature monitoring (maximum 6 PTC) for temperature sensor according to DIN 44081 and DIN 44082 with short-circuit monitoring of the thermistor circuit, with screw connection.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
