EM2696AV53HO3XXPFA

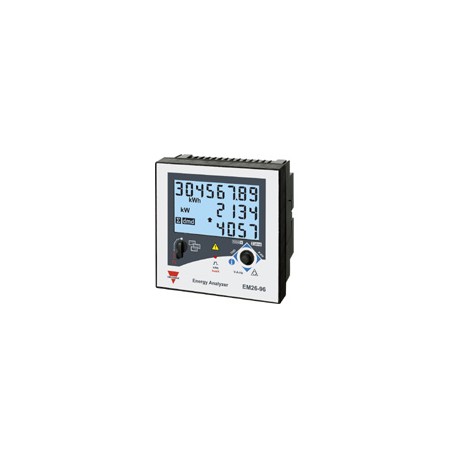

Energy Management Energy Analyzer Type EM26 96● M-bus communication by means of VMU-B adapter● Application adaptable display and programming procedure (Easyprog function)● Easy connections management● Certified according to MID Directive (option PF only):see “how to order” below● Other versions available (not certified, option XX):see “how to order” on the next pageProduct Description● Class 1 (kWh) according to EN62053-21● Class B (kWh) according to EN50470-3● Class 2 (kvarh) according to EN62053-23● Accuracy ±0.5% RDG (current/voltage)● Dual colour backlight: no backlight, blue or white (selectable)● Energy analyzer● Instantaneous variables readout: 4 DGT● Energies/gas/water readout: 8 DGT● System variables: VLL, VLN, Admd, VA, VAdmd, VAdmd max, W, Wdmd, Wdmd max, var, PF, Hz, Phase-sequence.● Single phase variables: VLL, VLN, A, VA, W, var, PF● Energy measurements: total and partial kWh and kvarh or based on 4 different tariffs single phase measurements● Gas, cold water, hot water, kWh remote heating measurements● Hour counter (6+2 DGT)● Harmonic analysis (FFT) up to 15th harmonic (current/voltage)● TRMS measurements of distorted sine waves (voltages/currents)● Universal power supply: 90 to 260AC/VDC● 3 digital inputs for tariff selection, DMD synch or gas/water (hot- cold) and remote heating metering (on request)● 3 digital outputs for pulses or for alarms or as a mix of them(on request)● Front dimensions: 96x96mm● Protection degree (front): IP50● RS485 serial output (on request) (MODBUS-RTU), iFIX SCADAcompatibilityThree-phase energy analyzer with built-in configuration joy- stickand LCD data displaying particularly indicated for active andreactiveenergymeteringand for cost allocation. Housing for panel mounting with IP50 (front) protection degree. Exter- nal Current and potential trans- formersconnection.Moreoverthe meter can be provided with digital outputs that can be used: for pulses proportional to the active and reactive energy being measured or for alarm outputs,or for remote control. RS485 communication port and 3 digi- talinputsare available asan option.MIDCertifiedaccordingtoMIDDirective,Annex "B" + Annex "D" for legal metrology relevant to active electrical energy meters (see Annex MI-003ofMID).Canbeusedforfiscal(legal)How to order EM26 96 AV5 3 H O3 S1 PF AModel Range code Systemmetrology.Only thetotalpositiveenergy meter is certifiedaccording to MID.Type SelectionPower supply Input/Output Communication Options MeasurementRange codesAV5: 230 VLN/400VLL1/5(10)AVLN : 160 V to 480 VLNVLL : 277 V to 830 VLLAV6: 120 VLN/208VLL1/5(10)AVLN : 40 V to 144 VLNVLL : 70 V to 250 VLLSystem3:3-phase, 4-wirePower supplyH: 90 to 260VAC/DC (48 to 62Hz)CommunicationXX:noneS1: RS485 portInput/OutputO1:single open collector type(pulse or alarm)O3:3 open collector type (mixed combination of pulse, alarm and/or remote output)R2:dual relay type (functions as per “O3”)I3:3 digital inputs for tariff selection or Gas/water/ energy/remote heating meteringOptionsPF: Certified according to MID Directive, Annex "B" + Annex "D" for legal metrology relevant to active electrical energy meters (see Annex MI-003 of MID). Can be used for fiscal (legal) metrology.MeasurementA:The power is always integrated (both in case of positive and negative power) and the total energy meter is certified according to MID.AV53AV6H O1XX O3S1R2I3 S1A PFBNOTE: please check the availability of the needed code on the verification path diagram on left before order.B:Only the total positive energy meter is certified according to MID. The negative energy meter is not certified according to MID.Specifications are subject to change without noticeEM2696 DS ENG 0610141
