ELR H3-I-SC-230AC/500AC-2

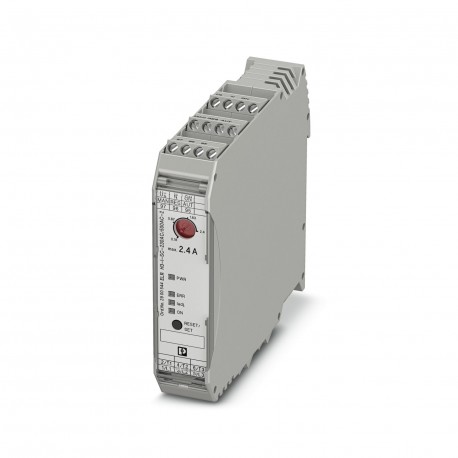

ELR H3-I-SC-230AC/500AC-2 2900544 PHOENIX CONTACT Hybrid motor starter
$0.00USD
4694 kwenye hisa
Vipimo Muhimu
:Safe isolation (EN 50178) at operating voltage ≤ 300 V AC
FLA:2.4 A (500 V AC)
Dokezo:Confirmation: floating change-over contact, signal contact
SCCR:100 kA (500 V AC (fuse: 30 A class CC/30 A class J (high fault)))
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Safe isolation (EN 50178) at operating voltage ≤ 300 V AC | |
| FLA | 2.4 A (500 V AC) |
| Dokezo | Confirmation: floating change-over contact, signal contact |
| SCCR | 100 kA (500 V AC (fuse: 30 A class CC/30 A class J (high fault))) |
| Kina | 114 mm |
| Upana | 22.5 mm |
| Urefu | ≤ 2000 m |
| Jina la kuingiza | Control input |
| Cheti | NLDX.E228652 |
| Muda wa kupoa | 20 min. (for auto reset) |
| Aina ya bidhaa | Hybrid motor starters |
| Uzi wa skrubu | M3 |
| Dokezo la mkutano | alignable, for spacing see derating |
| Msimbo wa kategoria | NLDX / NRNT |
| Aina ya kupachika | DIN rail mounting |
| Hali ya uendeshaji | 100% operating factor |
| Familia ya bidhaa | CONTACTRON |
| Onyesho la hali | LED (yellow) |
| Mkondo wa kuvuja | 0 mA |
| Masafa ya mtandao mkuu | 50/60 Hz |
| Marekebisho ya makala | 09 |
| Dalili ya hitilafu | Red LED |
| Idadi ya awamu | 3 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Aina ya uratibu | 1 |
| Nafasi ya kupachika | vertical (horizontal DIN rail, motor output below) |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Usakinishaji wa kikundi | 20 A (class RK5, SCCR 5kA, #24 - 14 AWG max. solid and stranded) |
| Pakia masafa ya sasa | 180 mA ... 2.4 A (see to derating) |
| Aina ya kianzishaji cha injini | Direct starter |
| Mzunguko wa kinga | Surge protection |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Volti ya kuongezeka iliyokadiriwa | 4 kV |
| Masafa ya kubadili | ≤ 2 Hz (Load-dependent) |
| Kizingiti cha kubadili | 44 V AC (“0” signal) |
| Kiwango cha ulinzi | IP20 |
| Kategoria ya volteji nyingi | III |
| Viwango/kanuni | IEC 60947-1 |
| Muda wa kawaida wa kuzima | < 70 ms |
| Aina ya ubadilishaji wa mguso | 1 changeover contact |
| Kiwango cha volteji ya uendeshaji | 42 V AC ... 550 V AC |
| Volti ya insulation iliyokadiriwa | 500 V |
| Kiwango cha volteji kinachosababisha | 85 V AC ... 253 V AC |
| Usambazaji wa nguvu wa kiwango cha juu | 4.7 W |
| Usambazaji mdogo wa nguvu | 2.6 W |
| Onyesho la volteji ya uendeshaji | Green LED |
| IC ya mkondo inayoendesha iliyokadiriwa | 7 mA (Input type 1) |
| UC ya volteji inayoamilisha iliyokadiriwa | 230 V AC |
| Imekadiriwa mkondo wa uendeshaji Ie | 2.4 A (AC-51) |
| Volti ya uendeshaji iliyokadiriwa Ue | 500 V AC |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 14 |
| Udhibiti wa voltage ya usambazaji | 85 V AC ... 253 V AC |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 70 °C (observe derating) |
| Udhibiti wa sasa wa usambazaji wa udhibiti uliokadiriwa IS | 4 mA |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 (Housing) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 80 °C |
| Volti ya usambazaji wa mzunguko wa udhibiti iliyokadiriwa Marekani | 230 V AC |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 2.2 W |
| Kipengele cha kichocheo katika acc. na IEC 60947-4-2 | Class 10A |
| Uwezo wa kubadili kulingana na IEC 60947-5-1 | 3 A (230 V, AC15) |
| Sifa za kutengwa kati ya ingizo la udhibiti na volteji ya usambazaji wa udhibiti hadi saketi saidizi | Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC |
| Sifa za insulation kati ya ingizo la udhibiti na volteji ya usambazaji wa udhibiti, na saketi saidizi kwa saketi kuu | Safe isolation (IEC 60947-1) at operating voltage ≤ 300 V AC |
Maelezo ya Bidhaa
Hybrid start controller for starting motors from 3~ AC up to 550 V AC, with 230 V DC input, 2.4 A output current and adjustable overload disconnection.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
