Kipatikana Bidhaa Maarufu
ELG-75-24

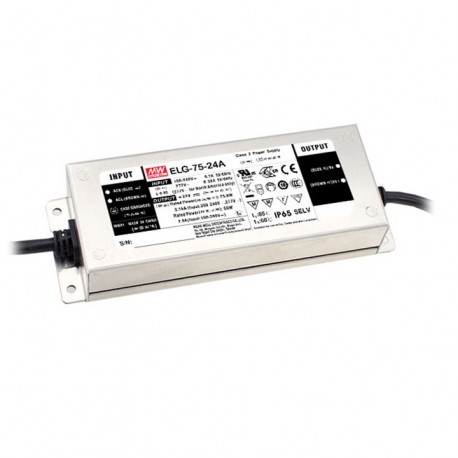

ELG-75-24 MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 24VDC / 3...
$0.00USD
3369 kwenye hisa
Vipimo Muhimu
Jina:ELG-75-24
Jimbo:Do not Use for New Designs
Muundo:Box
Mfululizo:ELG-75-V
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | ELG-75-24 |
| Jimbo | Do not Use for New Designs |
| Muundo | Box |
| Mfululizo | ELG-75-V |
| Idhini | CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| Nguvu (W) | 75,60 |
| Fomu ndogo | IP67 |
| Upana (mm) | 63.00 |
| Urefu (mm) | 35.50 |
| Kiwango cha juu cha kuingiza AC | 305,00 |
| Kiwango cha chini cha kuingiza AC | 100,00 |
| Maombi | Lighting |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | LED Driver |
| Kutengwa (V) | 3.750,00 |
| Volti ya kutoa | 24,00 |
| Nguvu ya Kilele (W) | 75.6 |
| Kiunganishi cha kuingiza data | Cable |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 180.00 |
| Maelezo Marefu | LED driver.Specially designed to feed LED strips.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output voltage24vdc.Output intensity3.15 A.Range of output current 0-3,15 according To the demand load.Power:75,6 W.Efficiency typical:88%.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):180 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.The series ELG are Led drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-75-24-3Y.This source can operate in either constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. |
| Kiunganishi cha kutoa | Cable |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 5,00 |
| Nchi ya Asili | China |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
LED driver.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
