EKDS16124-4X

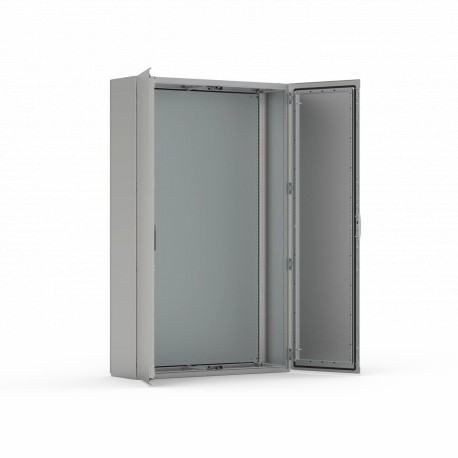

EKDS16124-4X ELDON Self-supporting, 1600x1200x400, compact, 2-door, with MP, stainless 304, IP66
$0.00USD
4870 kwenye hisa
Vipimo Muhimu
Jina la Kipengele:Feature Value
Kina (EF000049):400.00 mm
Upana (EF000008):1.20 mm
Rangi (EF000007):Stainless steel
Taarifa za Msambazaji
ELDON
Bidhaa: 4827
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina la Kipengele | Feature Value |
| Kina (EF000049) | 400.00 mm |
| Upana (EF000008) | 1.20 mm |
| Rangi (EF000007) | Stainless steel |
| Urefu (EF000040) | 1.60 mm |
| Faida: (Vipengele) | The space required immediately in front of the enclosure is reduced due to the width of each enclosure door being half that of the enclosure. This also results in the door's loading capacity being higher, as it is split over two doors. The installed components inside the enclosure will be safe and secure due to the high protection degree. |
| Maoni: (Vipengele) | Stainless steel 304 double door compact floor standing enclosures, with a high IP 66, TYPE 4X, protection degree, are also available. |
| Kipengele: (Vipengele) | Stainless steel 304 and 316(L) double door compact floor standing enclosures, with a IP 55 protection degree. |
| Nyenzo (EF002169) | Stainless steel |
| Inaweza Kuunganishwa (EF001229) | |
| Nambari ya RAL (EF000116) | |
| Mwili: (Data ya kiufundi) | One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth. |
| Mlango: (Data ya kiufundi) | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| Toleo la EMC (EF001062) | false |
| Kufuli: (Data ya kiufundi) | Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories. |
| Mfano wa kona (EF020814) | |
| Hudumu kwa uhuru (EF020363) | |
| Paa lililowekwa lami (EF009278) | false |
| Maliza: (Data ya kiufundi) | 400 pre-grained stainless steel. |
| Kufunga nguzo (EF009582) | false |
| Na mlango wa nyuma (EF007381) | false |
| Uwasilishaji: (Data ya kiufundi) | One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable. |
| Uchimbaji wa Ardhi: (Data ya kiufundi) | Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF. |
| Nguvu ya athari (EF004293) | IK10 |
| Nyenzo: (Data ya kiufundi) | AISI 304L pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm. |
| Idadi ya milango (EF000122) | 2.00 |
| Idadi ya kufuli (EF000123) | 1.00 |
| Ubora wa nyenzo (EF001257) | Stainless steel 304 (V2A) |
| Na mlango wenye glasi (EF001089) | false |
| Ulinzi: (Data ya kiufundi) | Double door version, complies with IP 55 TYPE 12, 13 IK 10. Individual doors with welded vertical divider, complies with IP 66 TYPE 4X, 12 and 13 IK 10. |
| Paneli ya nyuma: (Data ya kiufundi) | Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures. |
| Kumaliza uso (EF006569) | Untreated |
| Na bamba la kupachika (EF000118) | true |
| Sahani za chini: (Data ya kiufundi) | One piece bottom plate with injected polyurethane gasket to ensure maximum sealing. |
| Ufungaji wa kati (EF022994) | |
| Bamba la kupachika: (Data ya kiufundi) | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is supplied, attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included. |
| Na mlango wa uingizaji hewa (EF006279) | false |
| Kiwango cha ulinzi (IP) (EF005474) | IP66 |
| Mfano wa ukuta uliosimama sakafuni (EF015208) | |
| Inafaa kwa ajili ya kujengwa ndani ya ukuta (EF007536) | |
| Inafaa kwa ajili ya kupachika ukutani (EF000664) | |
| Kiwango cha ulinzi (NEMA) (EF011959) | 4X |
| Inafaa kwa ajili ya kupachika kwa kipimo (EF005823) | |
| Kina cha bamba la kupachika kinachoweza kurekebishwa (EF006054) | true |
| Mzigo wa juu unaoruhusiwa wa mlango (milango) kulingana na IEC 62208 (EF014988) | None N |
| Kiwango cha juu zaidi kinachoruhusiwa cha mzigo uliofungwa kulingana na IEC 62208 (EF014987) | None N |
| Usambazaji wa joto (Delta T = 20 K) kulingana na IEC/TR 60890 (EF014986) | None W |
| Kiwango cha juu zaidi kinachoruhusiwa cha bamba la kupachika kulingana na IEC 62208 (EF014989) | None N |
Maelezo ya Bidhaa
The stainless steel double door compact floor standing enclosure range, EKDS, with a IP 55 protection degree is ideal for installation in confined spaces where a single door. when opened, would take u
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Material:
