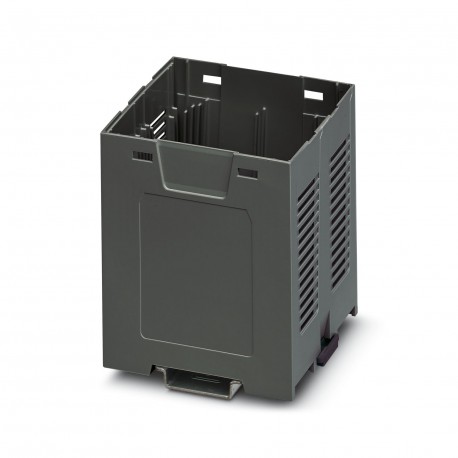

EH 67,5-B/ABS-PC BK9005
EH 67,5-B/ABS-PC BK9005 1069885 PHOENIX CONTACT DIN rail housing, Lower housing part with base latch, tall d..
$0.00USD
3457 kwenye hisa
Vipimo Muhimu
GTIN:4055626747651
Ufunguo wa kuagiza:1069885
(Michoro):
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626747651 |
| Ufunguo wa kuagiza | 1069885 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| Nguvu (Mshtuko) | 20 N |
| Type (Drawings) | Lower housing part with base latch, tall design |
| UNSPSC 11 (ETIM) | 31261501 |
| ETIM 3.0 (eCl@ss) | EC001031 |
| ETIM 4.0 (eCl@ss) | EC001031 |
| ETIM 5.0 (eCl@ss) | EC001031 |
| ETIM 6.0 (eCl@ss) | EC001031 |
| ETIM 7.0 (eCl@ss) | EC001031 |
| UNSPSC 13.2 (ETIM) | 31261501 |
| UNSPSC 18.0 (ETIM) | 31261501 |
| UNSPSC 19.0 (ETIM) | 31261501 |
| UNSPSC 20.0 (ETIM) | 31261501 |
| UNSPSC 21.0 (ETIM) | 31261501 |
| UNSPSC 6.01 (ETIM) | 31261501 |
| Halijoto (Mshtuko) | 80 °C |
| UNSPSC 12.01 (ETIM) | 31261501 |
| Nambari ya ushuru maalum | 85389099 |
| Order No. (Drawings) | 1069885 |
| UNSPSC 7.0901 (ETIM) | 31261501 |
| Vipimo (Mshtuko) | IEC 60695-10-2:2014-02 |
| Muda wa jaribio (Mshtuko) | 1 h |
| Housing type (Drawings) | DIN rail housing |
| Rangi (RAL) (Vipimo) | black (9005) |
| Aina ya kupachika (Michoro) | DIN rail mounting/wall mounting (with optional base latch) |
| Vipimo (data ya PCB) | IEC 60998-1:2002-12 |
| Urefu wa kuanguka (data ya PCB) | 50 cm |
| Housing series (Drawings) | EH |
| Umbo la mapigo (Jaribio la mtetemo) | Half-sine |
| eCl@ss 4.0 (Uainishaji) | 27180401 |
| eCl@ss 4.1 (Uainishaji) | 27180401 |
| eCl@ss 5.0 (Uainishaji) | 27180506 |
| eCl@ss 5.1 (Uainishaji) | 27180500 |
| eCl@ss 6.0 (Uainishaji) | 27180800 |
| eCl@ss 7.0 (Uainishaji) | 27182702 |
| eCl@ss 8.0 (Uainishaji) | 27182702 |
| eCl@ss 9.0 (Uainishaji) | 27182702 |
| Kuongeza kasi (Jaribio la mtetemo) | 15g |
| Kina [d] (Sifa za bidhaa) | 87.3 mm |
| Nyenzo za makazi (Vipimo) | ABS-PC |
| Upana [w] (Sifa za bidhaa) | 67.6 mm |
| Urefu [ h ] (Sifa za bidhaa) | 75 mm |
| Vipimo (Jaribio la mtetemo) | IEC 60068-2-27:2008-02 |
| Muda wa mshtuko (Jaribio la mtetemo) | 11 ms |
| Idadi ya mizunguko ya kushuka (data ya PCB) | 10 |
| Maelekezo ya jaribio (Jaribio la mtetemo) | X-, Y- and Z-axis (pos. and neg.) |
| Max. IP code to attain (Drawings) | IP20 |
| Unene wa PCB (Hali ya mazingira) | 1.4 mm ... 1.8 mm |
| Maelezo mafupi ya makala (Michoro) | Mounting base housing |
| Mchoro wa vipimo (Sifa za bidhaa) | |
| Nafasi ya kupachika (Hali ya mazingira) | Vertical (horizontal DIN rail) |
| Aina ya kupachika PCB (Hali ya mazingira) | Latching |
| Ventilation openings present (Drawings) | yes |
| Vipande kwa kila kifurushi (Maelezo ya jumla) | 10 |
| Idadi ya vishikiliaji vya PCB (Hali ya mazingira) | 7 |
| Halijoto ya mazingira (mkusanyiko) (Data ya nyenzo) | -5 °C ... 80 °C |
| Halijoto ya mazingira (uendeshaji) (Data ya nyenzo) | -40 °C ... 80 °C (depending on power dissipation) |
| Amplitude (Nguvu ya mekanika/pipa linaloanguka) | 0.15 mm (10 - 58.1 Hz) |
| Masafa (Nguvu ya mitambo/pipa linaloanguka) | 10 - 150 - 10 Hz |
| Idadi ya mishtuko kwa kila mwelekeo (Jaribio la mtetemo) | 3 |
| Vitengo vya kufungashia vya madhehebu (Taarifa ya jumla) | Pcs. |
| Halijoto (Uwezo wa Kupima Joto (Jaribio la Msukumo wa Mpira)) | 850 °C |
| Kasi ya kufagia (Nguvu ya kiufundi/pipa linaloanguka) | 1 octave/min |
| Kuongeza kasi (Nguvu ya mitambo/pipa linaloanguka) | 2g (58.1 - 150 Hz) |
| Vipimo (Uwezo wa Kupima Joto (Jaribio la Kusukuma Mpira)) | IEC 60695-2-11:2014-02 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Vipimo) | V0 |
| Vipimo (Nguvu ya mitambo/pipa linaloanguka) | IEC 60068-2-6:2007-12 |
| Maelekezo ya majaribio (Nguvu ya mitambo/pipa linaloanguka) | X-, Y- and Z-axis |
| Muda wa Kuathiriwa (Uwezo wa Kupima Joto (Kipimo cha Kusukuma Mpira)) | 30 s |
| Halijoto ya mazingira (uhifadhi/usafiri) (Data ya nyenzo) | -40 °C ... 55 °C |
| Kumbuka (Viwango vya ulinzi vinavyotolewa na makazi (msimbo wa IP)) | Refer to the data sheet for the range in the download area. |
| Muda wa jaribio kwa kila mhimili (Nguvu ya fundi/pipa linaloanguka) | 2.5 h |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Taarifa za Ufungashaji) | V0 |
| Vipimo (Jaribio la kutathmini hatari ya moto (waya ya mwanga)) | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Aina ya noti (Viwango vya ulinzi vinavyotolewa na makazi (msimbo wa IP)) | Assembly instruction: |
| Depth from top edge of DIN rail to support point on upper part [ d ] (Item properties) | 83 mm |
| Matokeo, kiwango cha ulinzi, msimbo wa IP (Jaribio la kutathmini hatari ya moto (waya ya mwanga)) | IP20 |
Maelezo ya Bidhaa
Rail box, Bottom of housing with base anchorage, high design, with ventilation slits, width: 67.6 mm, height: 75 mm, depth: 87.3 mm, color: black (9005)
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawing
