E69-C08B

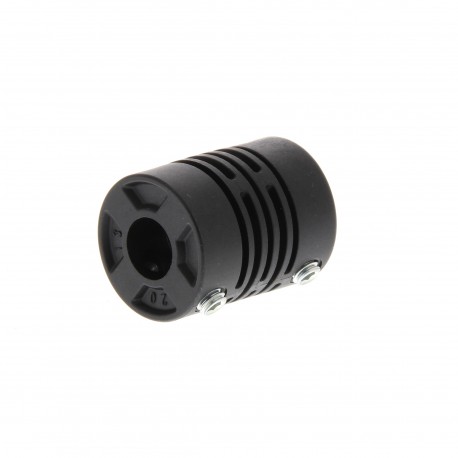

E69-C08B E69 1023C 150821 OMRON Encoder coupling D8mm
$0.00USD
4333 kwenye hisa
Vipimo Muhimu
Mita 2 (Kiweka kamera kidogo na rahisi kutumia):E6C3-AG5C-C 256 2M
360 (Kiweka kamera kidogo na rahisi kutumia):E6F-AG5C-C 360 2M
720 (Kiweka kamera kidogo na rahisi kutumia):E6F-AG5C-C 720 2M
Jina (Kiweka kamera kidogo na rahisi kutumia):Specification
Taarifa za Msambazaji
OMRON
Bidhaa: 41472
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Mita 2 (Kiweka kamera kidogo na rahisi kutumia) | E6C3-AG5C-C 256 2M |
| 360 (Kiweka kamera kidogo na rahisi kutumia) | E6F-AG5C-C 360 2M |
| 720 (Kiweka kamera kidogo na rahisi kutumia) | E6F-AG5C-C 720 2M |
| Jina (Kiweka kamera kidogo na rahisi kutumia) | Specification |
| Aina (Kiweka kamera kidogo na rahisi kutumia) | Resolution |
| Imara (Kiweka kamera chenye umbo dogo na rahisi kutumia) | 256 |
| Ingizo (Kiweka kamera kidogo na rahisi kutumia) | Encoder input |
| Uchumi (Kiweka kamera chenye umbo dogo na rahisi kutumia) | 256 |
| Kiwango (Kidhibiti cha kamera kidogo na rahisi kutumia) | 256 |
| Matokeo 8 (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Flush-mounting |
| Kebo ya USB (Kiweka kamera kidogo na rahisi kutumia) | A miniB, 2 m |
| Matokeo 16 (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Flush-mounting |
| Matokeo 32 (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Flush-mounting |
| Rangi ya kipochi (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Light grey (Munsell 5Y7/1) |
| Aina ya kuingiza (Kiweka kamera kidogo na rahisi kutumia) | No voltage inputs: ON impedance: 1 kΩ max. (leakage current: Approx. 2 mA at 0 Ω)ON residual voltage: 2 V max., OFF impedance: 100 kΩ min., applied voltage: 30 VDC max.Minimum input signal width: 20 ms |
| Njia ya kuonyesha (Kiweka kamera chenye umbo dogo na rahisi kutumia) | 7-segment, negative transmissive LCD (main display: 11 mm (red), sub-display: 5.5 mm (green)) |
| Kebo ya ugani (Kiweka kamera kidogo na rahisi kutumia) | 5 m (same for E6CP, E6C3, and E6F) |
| Ingizo za nje (Kiweka kamera kidogo na rahisi kutumia) | Input signals |
| Idadi ya benki (Kiweka kamera chenye umbo dogo na rahisi kutumia) | 8 banks (for 16-/32-output models only) |
| Unyevu wa mazingira (Kidhibiti cha kamera chenye umbo dogo na rahisi kutumia) | 25 to 85% |
| Kifuniko cha kinga (Kidhibiti cha kamera kidogo na rahisi kutumia) | Y92A-96B |
| Kifuniko kisichopitisha maji (Kidhibiti cha kamera kidogo na rahisi kutumia) | Y92A-96N |
| Idadi ya matokeo (Kiweka kamera kidogo na rahisi kutumia) | Mounting method |
| Halijoto ya kuhifadhi (Kidhibiti cha kamera kidogo na rahisi kutumia) | −25 to 65°C (with no icing or condensation) |
| Kiwango cha ulinzi (Kidhibiti cha kamera kidogo na rahisi kutumia) | Panel surface: IP40, rear case: IP20 |
| Njia ya kuhifadhi nakala ya kumbukumbu (Kiweka nafasi cha kamera kidogo na rahisi kutumia) | EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min. |
| Volti ya usambazaji iliyokadiriwa (Kiwekaji cha kamera kidogo na rahisi kutumia) | 24 VDC |
| Toweo la transista ya PNP (Kiwekaji cha kamera kidogo na rahisi kutumia) | H8PS-32BFP |
| Msingi wa kupachika reli ya DIN (Kiweka kamera kidogo na rahisi kutumia) | Y92F-91 |
| Adapta ya kuingiza data sambamba (Kiweka nafasi cha kamera kidogo na rahisi kutumia) | Two units can operate in parallel |
| Kebo ya kutoa sauti ya waya tupu (Kiweka kamera kidogo na rahisi kutumia) | 2 m |
| Kiunganishi cha shimoni kwa E6F (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Axis: 10 mm dia. |
| Kebo ya kutoa sauti ya aina ya kiunganishi (Kiweka kamera kidogo na rahisi kutumia) | 2 m |
| Kiunganishi cha shimoni kwa E6C3 (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Axis: 8 mm dia. |
| Kiunganishi cha shimoni kwa E6CP (Kiweka kamera chenye umbo dogo na rahisi kutumia) | Axis: 6 mm dia. |
| Halijoto ya uendeshaji iliyoko (Kidhibiti cha kamera chenye ufupi na rahisi kutumia) | −10 to 55°C (with no icing or condensation) |
| Upachikaji wa mbele/upachikaji wa reli ya DIN (Kiweka kamera kidogo na rahisi kutumia) | NPN transistor output |
Maelezo ya Bidhaa
Accessory encoder, shaft coupling for E6C3-Aencoder
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
The H8PS provides high-speed operation at 1,600 r/min and high-precision settings to 0.5° ensuring widespread application. H8PS features a highly visible display with back-lit negative transmissive LCD. Advance angle compensation function compensates for output delays.
