DFLK-D15 SUB/S

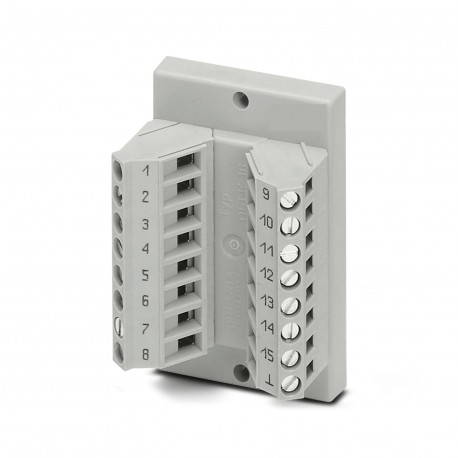

DFLK-D15 SUB/S 2280297 PHOENIX CONTACT Interface module
$0.00USD
4810 kwenye hisa
Vipimo Muhimu
:0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
Rangi:gray (RAL 7042)
Kina:33.07 mm
Lami:2.74 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve) | |
| Rangi | gray (RAL 7042) |
| Kina | 33.07 mm |
| Lami | 2.74 mm |
| Upana | 39.88 mm |
| Urefu | ≤ 2000 m |
| Insulation | Functional insulation |
| Cheti | UKCA-compliant |
| Aina ya bidhaa | Interface module |
| Uzi wa skrubu | UNC 4-40 |
| Aina ya kupachika | Rear mounting |
| Familia ya bidhaa | VARIOFACE |
| Marekebisho ya makala | 12 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | D-SUB pin strip |
| Nafasi ya kupachika | any |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Maelezo kuhusu uendeshaji | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Idadi ya nafasi | 15 |
| Volti ya kuongezeka iliyokadiriwa | 1.2 kV (1.2/50 μs) |
| Mkondo (kwa kila tawi) | ≤ 2.5 A |
| Kategoria ya volteji nyingi | II |
| Idadi ya miunganisho | 1 |
| Viwango/kanuni | EN IEC 60664-1 |
| Volti ya uendeshaji (AC) | ≤ 30 V AC |
| Volti ya uendeshaji (DC) | ≤ 60 V DC |
| Onyesho la hali linapatikana | No |
| Mkondo (Jumla ya mkondo) | ≤ 37.5 A (50 °C) |
| Volti ya insulation iliyokadiriwa | 125 V |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 12 |
| Nyenzo ya kuhami joto ya nyumba | Polyamide PA non-reinforced |
| Mizunguko ya kuingiza/kutoa | > 500 |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 4 mm² |
| Kiwango cha ulinzi (Moduli) | IP20 |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 50 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Muunganisho katika acc. na kiwango cha kawaida | IEC 60807-2 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -20 °C ... 70 °C |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 |
| Sehemu ngumu ya kondakta (kondakta 2 zenye sehemu sawa) | 0.2 mm² ... 1.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kondakta 2 zenye sehemu sawa ya msalaba) | 0.2 mm² ... 1.5 mm² |
Maelezo ya Bidhaa
The VARIOFACE feed-through module makes a 1:1 connection between screw connection terminals and a subminiature D-plug (no. 15 poles). A separate mass shunt is available.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
