DEK-OV-24DC/ 24DC/ 3/AKT

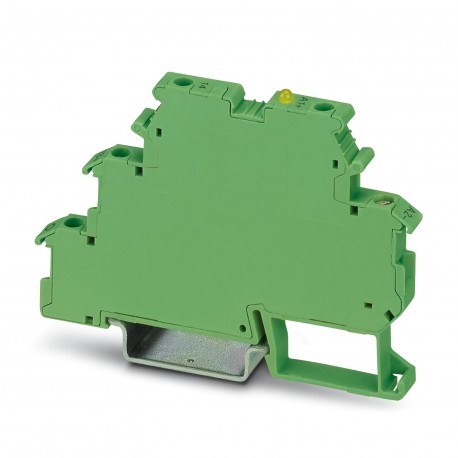

DEK-OV- 24DC/ 24DC/ 3/AKT 2964296 PHOENIX CONTACT Solid-state relay terminal block
$0.00USD
3589 kwenye hisa
Vipimo Muhimu
:Surge protection
Rangi:green (RAL 6021)
Kina:56 mm
Upana:6.2 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Surge protection | |
| Rangi | green (RAL 6021) |
| Kina | 56 mm |
| Upana | 6.2 mm |
| Urefu | 80 mm |
| Insulation | Basic insulation |
| Maombi | Output function |
| Aina ya bidhaa | Solid-state relay module |
| Uzi wa skrubu | M3 |
| Dokezo la mkutano | in rows with zero spacing |
| Aina ya kupachika | DIN rail mounting |
| Hali ya uendeshaji | 100% operating factor |
| Saketi ya kutoa | 2-conductor, floating |
| Familia ya bidhaa | DEK |
| Marekebisho ya makala | 12 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | any |
| Kukaza torque | 0.5 Nm |
| Mzunguko wa kinga | Reverse polarity protection |
| Kiwango cha volteji ya kuingiza | 19.2 V DC ... 28.8 V DC |
| Dokezo kwenye programu | Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
| Kiwango cha voltage ya kutoa | 3 V DC ... 30 V DC |
| Kategoria ya volteji nyingi | III |
| Viwango/kanuni | IEC 60947-5-1 |
| Muda wa kawaida wa majibu | 40 µs |
| Muda wa kawaida wa kuzima | 200 µs |
| Aina ya ubadilishaji wa mguso | 1 N/O contact |
| Masafa ya upitishaji | 300 Hz |
| Ubunifu wa matokeo ya kidijitali | electronic |
| Volti ya pembejeo ya kawaida ya UN | 24 V DC |
| Onyesho la volteji ya uendeshaji | Yellow LED |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 14 |
| Kupunguza mkondo unaoendelea | 3 A (see derating curve) |
| Volti ya majaribio (Ingizo/matokeo) | 2.5 kV AC (Input/output) |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 7 mA |
| Tarehe ya mwisho ya usimamizi wa data | 03.05.2024 |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 60 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Kiwango cha volteji ya kuingiza data kwa kurejelea UN | 0.8 ... 1.2 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -20 °C ... 70 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.17 W |
| Kushuka kwa volteji kwa kiwango cha juu zaidi kinachopunguza mkondo unaoendelea | ≤ 0.2 V |
| Ishara ya kubadili kizingiti "0" ikirejelea Umoja wa Mataifa | ≤ 0.4 |
| Ishara ya kubadili kizingiti "1" ikirejelea Umoja wa Mataifa | ≥ 0.8 |
Maelezo ya Bidhaa
Solid state power relay terminal for actuators, input: 24 V DC, output: 3-30 V DC/3 A, terminal width 6.2 mm
