CES-B10-SFFS-PLBK

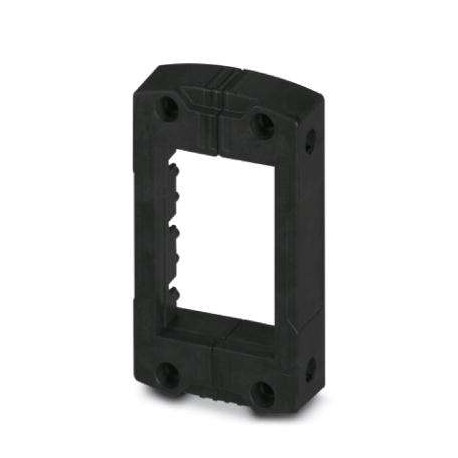

CES-B10-SFFS-PLBK 0801660 PHOENIX CONTACT Sealing frame
$0.00USD
4060 kwenye hisa
Vipimo Muhimu
GTIN:4046356674126
Ufunguo wa kuagiza:0801660
Ukurasa wa katalogi:Page 685 (C-2-2017)
Kitengo cha kufungasha:1 pc
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356674126 |
| Ufunguo wa kuagiza | 0801660 |
| Ukurasa wa katalogi | Page 685 (C-2-2017) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | IP65 |
| Nchi ya asili | PL (Poland) |
| Nambari ya ushuru maalum | 85472000 |
| (Hali ya mazingira) | The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: when using the CES-SRC-BK / CES-LRC-BK cone sleeve, for vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel, and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
| Kumbuka (Hali ya mazingira) | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
| Rangi (Hali ya mazingira) | black |
| Torque (Hali ya mazingira) | 2 Nm ... 4 Nm (Locking screw) |
| Upana (Data Muhimu ya Biashara) | 58 mm |
| (Viwango na Kanuni) | No hazardous substances above threshold values |
| Urefu (Data Muhimu ya Kibiashara) | 99.2 mm |
| Nyenzo (Hali ya mazingira) | PA (halogen-free) |
| Aina ya fremu (Hali za mazingira) | Sealing frame |
| Kiwango cha ulinzi (Vipimo) | IP54 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 130.300 g |
| RoHS ya China (Viwango na Kanuni) | Environmentally friendly use period: unlimited = EFUP-e |
| Muunganisho katika acc. na kiwango (Jumla) | CUL |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 120 °C (static) |
| Maagizo ya usakinishaji (Hali ya mazingira) | M4 locking screw with 3 mm Allen screw head, 3 ... 4 Nm torque, 1 large sleeve requires the space of 4 small sleeves, mounting screw: M4 (ISO 4762/DIN 912), 1.8 Nm torque |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Hali ya mazingira) | V0 |
Maelezo ya Bidhaa
Shutter frames, with screw lock, construction: B10, Number of cable pass-through joints (small): 6, material: PA (halogen-free), color: black, length: 99.2 mm, width: 58 mm, height: 20 mm
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
