CCA 2,5/10-G-5,08 RNP26THR

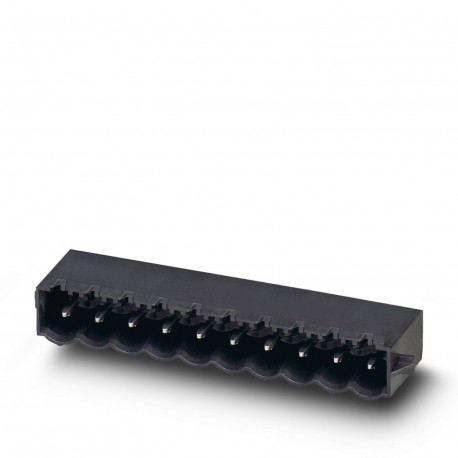

CCA 2,5/10-G-5,08 RNP26THR 1955248 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4637 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Aina:Component suitable for through hole reflow
Lami:5.08 mm
Matokeo:Test passed
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Aina | Component suitable for through hole reflow |
| Lami | 5.08 mm |
| Matokeo | Test passed |
| Mchakato | Reflow/wave soldering |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 56.62 mm |
| Urefu [h] | 11.17 mm |
| Urefu [l] | 12 mm |
| Mpangilio wa pini | Linear pinning |
| Kasi ya kufagia | 1 octave/min |
| Kuongeza kasi | 5g (60.1 Hz ... 150 Hz) |
| Mstari wa bidhaa | COMBICON Connectors M |
| Aina ya bidhaa | PCB headers |
| Kipenyo cha shimo | 1.6 mm |
| Aina ya kupachika | THR soldering / wave soldering |
| Idadi ya mizunguko | 25 |
| Vipimo | IEC 60512-1-1:2002-02 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 1 x 1 mm |
| Familia ya bidhaa | CCA 2,5/..-G-RN |
| Mkazo wa joto | 100 °C/168 h |
| Rangi (Nyumba) | black (9005) |
| Flange ya kupachika | Engagement nose |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 04 |
| Nyenzo ya mawasiliano | Cu alloy |
| Mkazo unaosababisha kutu | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Urefu uliowekwa | 8.57 mm |
| Aina ya kifungashio | packed in cardboard |
| Upinzani wa mguso | 1 mΩ |
| Mkondo wa nominella IN | 12 A |
| Volti ya kawaida ya Umoja wa Mataifa | 320 V |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | LCP |
| Idadi ya nafasi | 10 |
| Idadi ya uwezo | 10 |
| Volti iliyokadiriwa (II/2) | 400 V |
| Upinzani wa mguso R1 | 1 mΩ |
| Upinzani wa mguso R2 | 1.1 mΩ |
| Idadi ya miunganisho | 10 |
| Volti iliyokadiriwa (III/2) | 320 V |
| Volti iliyokadiriwa (III/3) | 250 V |
| Urefu wa pini ya solder [P] | 2.6 mm |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | Tin-plated |
| Kiwango cha Unyevu Kinachoathiriwa na Unyevu | MSL 1 |
| Kikundi cha nyenzo za kuhami joto | IIIa |
| Pini za solder kwa kila uwezo | 1 |
| CTI kulingana na IEC 60112 | 175 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 4 kV |
| Idadi ya nafasi zilizojaribiwa | 12 |
| Mizunguko ya kuingiza/kutoa | 25 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 4 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 4 kV |
| Mizunguko ya solder katika mtiririko mpya | 3 |
| Uainishaji wa halijoto Tc | 260 °C |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (dependent on the derating curve) |
| Maelezo ya michakato ya kutengenezea | Processing using reflow processes in compliance with IEC 60068-2-58 or DIN EN 61760-1 (latest version)Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C |
| Volti ya insulation iliyokadiriwa (II/2) | 400 V |
| Volti ya insulation iliyokadiriwa (III/2) | 320 V |
| Volti ya insulation iliyokadiriwa (III/3) | 250 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 4 mm |
| Volti inayostahimili masafa ya nguvu | 2.21 kV |
| umbali wa chini kabisa (III/2) | 3.2 mm |
| umbali wa chini kabisa (III/3) | 4 mm |
| Punguza nguvu kwa kila pos. takriban. | 6 N |
| Nguvu ya kuingiza kwa kila nafasi ni takriban. | 8 N |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Msukumo hustahimili volteji katika usawa wa bahari | 4.8 kV |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Tin (3 - 5 µm Sn) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 175 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Tin (3 - 5 µm Sn) |
| Eneo la mguso wa uso wa chuma (safu ya kati) | Nickel (1.3 - 3 µm Ni) |
| Kishikilia mguso katika kiingilio Mahitaji >20 N | Test passed |
| Eneo la kusugulia uso wa chuma (safu ya kati) | Nickel (1.3 - 3 µm Ni) |
| Upinzani wa insulation, nafasi za jirani | > 5 MΩ |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 3 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 3 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 3 mm |
