CBMC E4 24DC/1-10A S-R

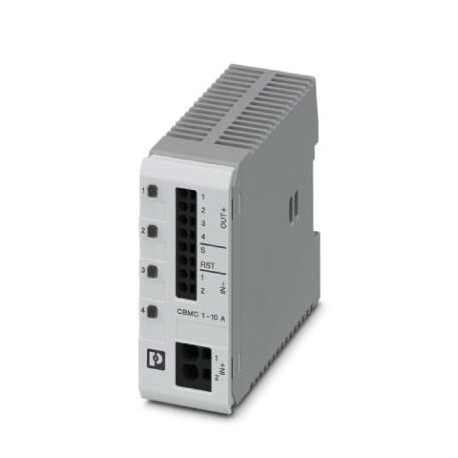

CBMC E4 24DC/1-10A S-R 1065729 PHOENIX CONTACT Multi-channel electronic circuit breaker for protecting four ..
$0.00USD
3001 kwenye hisa
Vipimo Muhimu
GTIN:4055626728810
Ufunguo wa kuagiza:1065729
(Jumla):> 8 V DC (High state)
(Michoro):
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626728810 |
| Ufunguo wa kuagiza | 1065729 |
| (Jumla) | > 8 V DC (High state) |
| (Michoro) | |
| Ukurasa wa katalogi | Page 375 (C-4-2019) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | 57.6 Hz … 150 Hz (Acceleration 5g; in accordance with IEC 60068-2-6, Test Fc) |
| Kina (Michoro) | 98 mm (incl. DIN rail 7.5 mm) |
| Upana (Michoro) | 36 mm |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC000899 |
| ETIM 6.0 (eCl@ss) | EC000899 |
| ETIM 7.0 (eCl@ss) | EC000899 |
| Urefu (Michoro) | 90 mm |
| (Data ya muunganisho) | EN 50178 |
| (Data ya umeme) | two flashes (Channel switched off, device total current limit 40 A exceeded) |
| UNSPSC 13.2 (ETIM) | 39121410 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| Aina ya fuse (Jumla) | electronic |
| Nambari ya ushuru maalum | 85363030 |
| Ufanisi (Jumla) | > 99 % |
| Urefu (Vipimo) | ≤ 3000 m up to 52 °C (amsl (above mean sea level)) |
| Volti iliyokadiriwa (Jumla) | 24 V DC |
| Mbinu ya kujikwaa (Jumla) | E (electronic) |
| Aina (Hali za mazingira) | DIN rail module, one-piece |
| Rangi (Hali ya mazingira) | light grey RAL 7035 |
| Kipimo cha unyevunyevu (Vipimo) | 96 h, 95 % RH, 40 °C |
| Imekadiriwa IN ya sasa (Jumla) | max. 40 A DC (IN+) |
| Urefu wa kukatwa (Jumla) | 10 mm |
| Jina la muunganisho (Ishara) | Main circuit OUT+ |
| Kipengele kisicho na hitilafu (Jumla) | 15 A DC (per output channel) |
| Volti ya uendeshaji (Jumla) | 18 V DC ... 30 V DC |
| Usambazaji wa Nguvu (Jumla) | typ. 0.8 W (No-load operation) |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Urefu wa kukatwa (Ishara) | 10 mm |
| eCl@ss 4.0 (Uainishaji) | 27141100 |
| eCl@ss 4.1 (Uainishaji) | 27141100 |
| eCl@ss 5.0 (Uainishaji) | 27141100 |
| eCl@ss 5.1 (Uainishaji) | 27141100 |
| eCl@ss 6.0 (Uainishaji) | 27141100 |
| eCl@ss 7.0 (Uainishaji) | 27141116 |
| eCl@ss 8.0 (Uainishaji) | 27141116 |
| eCl@ss 9.0 (Uainishaji) | 27141116 |
| Mbinu ya muunganisho (Uashiriaji) | Push-in connection |
| Nguvu ya dielektri (Jumla) | max. 35 V DC (Load circuit) |
| Upinzani wa maoni (Jumla) | max. 35 V DC |
| Volti ya kuongezeka iliyokadiriwa (Jumla) | 0.5 kV |
| Voltage reset input (General) | < 5 V DC (Low state) |
| Mchoro wa vipimo (Michoro) | |
| Fuse ya chelezo inayohitajika (Jumla) | not required, integrated failsafe element |
| Mshtuko (uendeshaji) (Vipimo) | 30g (IEC 60068-2-27, Test Ea) |
| Kupungua kwa halijoto (Jumla) | 24 A DC (at 60 °C) |
| Kupima uvumilivu I (Jumla) | ± 15 % |
| eCl@ss 10.0.1 (Uainishaji) | 27140401 |
| Channel LED off (Electrical data) | off (Channel switched off) |
| Channel LED red (Electrical data) | lit (Channel switched off, over- or undervoltage active) |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Aina ya kupachika (Hali ya mazingira) | DIN rail: 35 mm |
| Pulse length reset input (General) | ≥ 50 ms (High) |
| Mtetemo (uendeshaji) (Vipimo) | 10 Hz ... 57.6 Hz (Amplitude ±0.35 mm; in accordance with IEC 60068-2-6, Test Fc) |
| Channel LED green (Electrical data) | lit (Channel switched on) |
| Mkondo wa mzunguko uliofungwa I0 (Jumla) | typ. 33 mA |
| Ingizo la kuweka upya volteji ya kuingiza (Jumla) | 7 V DC ... 30 V DC (Reset with falling edge) |
| Channel LED yellow (Electrical data) | lit (Channel switched on, channel load > 80% ) |
| MTBF (IEC 61709, SN 29500) (Jumla) | 8403361 h (at 25°C with 21% load) |
| Muda wa kuanzisha moduli (Jumla) | 1.6 s |
| Mzunguko wa mzigo wa muda wa kuzima (Jumla) | ≤ 10 ms (for short circuit > 2.0 x IN) |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 140.000 g |
| Sehemu ya msalaba ya kondakta AWG (Jumla) | 24 ... 12 |
| Darasa la ulinzi (Hali za mazingira) | III |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Matokeo ya hali ya sasa ya matokeo (Jumla) | max. 0.04 A (Short-circuit-proof) |
| Hali ya volteji ya kutoa matokeo (Jumla) | 24 V DC |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Sehemu ya msalaba ya kondakta AWG (Ishara) | 24 ... 12 |
| Sehemu ngumu ya kondakta (Jumla) | 0.2 mm² ... 2.5 mm² |
| Idadi ya nafasi (Hali ya mazingira) | 1 |
| Sehemu ngumu ya kondakta (Ishara) | 0.2 mm² ... 2.5 mm² |
| Ingizo la kuweka upya matumizi ya sasa (Jumla) | typ. 0.4 mA (at 24 V DC) |
| Viwango/vipimo (Data ya muunganisho) | EN 61000-6-2 |
| Saketi ya juu zaidi ya mzigo wa uwezo (Jumla) | 45000 µF (Depending on the current setting and the short-circuit current available) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 60 °C |
| Mzunguko wa mzigo wa kuzima kwa voltage isiyo na voltage (Jumla) | ≤ 17.8 V DC (active) |
| Mzunguko wa mzigo wa kuzima kwa voltage ya kuongezeka (Jumla) | ≥ 30.5 V DC (active) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 70 °C |
| Muda wa kusubiri baada ya kuzima chaneli (Jumla) | 5 s (at overload / short circuit) |
| DiagramTrigger characteristic in the DC range (Drawings) | |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Hali ya mazingira) | V-0 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (General) | 0.25 mm² ... 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (General) | 0.25 mm² ... 2.5 mm² |
| Sehemu ya msalaba ya kondakta, inayonyumbulika, yenye kipete, na kifuniko cha plastiki (Ishara) | 0.25 mm² ... 1.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika, yenye kipete bila kifuniko cha plastiki (Ishara) | 0.25 mm² ... 2.5 mm² |
Maelezo ya Bidhaa
Multi-channel electronic equipment protection switch to protect four consumers in 24 V DC in case of overload and short circuit. With status output, reset input and electronic locking of the set rated
