CBMC E4 24DC/1-10A NO

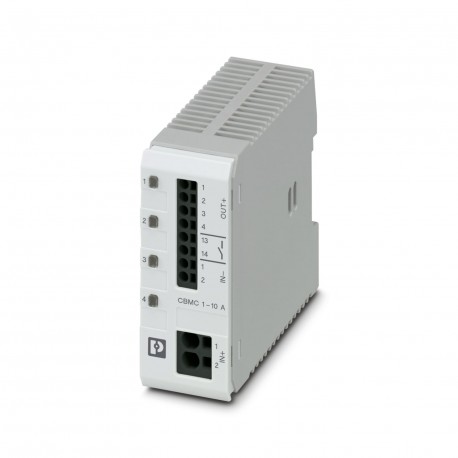

CBMC E4 24DC/1-10A NO 2906032 PHOENIX CONTACT Electronic device circuit breaker
$0.00USD
4336 kwenye hisa
Vipimo Muhimu
:max. 40 A DC (per terminal position when bridging additional devices via IN+)
Fuse:electronic
Dokezo:Repeated hard short circuits can reduce the melting integral of the integrated backup fuse.
Aina:DIN rail module, one-piece
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| max. 40 A DC (per terminal position when bridging additional devices via IN+) | |
| Fuse | electronic |
| Dokezo | Repeated hard short circuits can reduce the melting integral of the integrated backup fuse. |
| Aina | DIN rail module, one-piece |
| Rangi | light gray (RAL 7035) |
| Kina | 98 mm (incl. DIN rail 7.5 mm) |
| Upana | 36 mm |
| Urefu | ≤ 3000 m up to 52 °C (amsl) |
| Nyenzo | PC |
| Ufanisi | > 99 % |
| Aina ya bidhaa | Device circuit breakers |
| Kipimo cha unyevunyevu | 96 h, 95 % RH, 40 °C |
| Aina ya kupachika | DIN rail: 35 mm |
| Volti iliyokadiriwa | 24 V DC |
| Muda wa kuzima | ≤ 10 ms (for short circuit > 2.0 x IN) |
| Utambulisho | UL/C-UL Listed UL 508 |
| Familia ya bidhaa | CBMC |
| LED ya kituo imezimwa | off (Channel switched off) |
| Nyekundu ya LED ya chaneli | lit (Channel switched off, over- or undervoltage active) |
| Jina la muunganisho | Remote indication circuit |
| Idadi ya njia | 4 |
| Kuchelewa kuwasha | 0.1 s (per output channel) |
| Mbinu ya kujikwaa | E (electronic) |
| Marekebisho ya makala | 12 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Darasa la ulinzi | III |
| Imekadiriwa IN ya sasa | max. 40 A DC (IN+) |
| Urefu wa kukatwa | 15 mm |
| Kijani cha LED cha kituo | lit (Channel switched on) |
| Mbinu ya muunganisho | Push-in connection |
| Kipengele kisicho na tatizo | 15 A DC (per output channel) |
| Mkondo wa uendeshaji | 100 mA DC |
| Volti ya uendeshaji | 18 V DC ... 30 V DC |
| Usambazaji wa nguvu | typ. 0.6 W (No-load operation) |
| Mshtuko (upasuaji) | 30g (IEC 60068-2-27, Test Ea) |
| Njano ya LED ya chaneli | lit (Channel switched on, channel load > 80% ) |
| Kitendakazi cha kubadilisha | N/O contact |
| Nguvu ya dielektri | max. 35 V DC (Load circuit) |
| Mchoro wa vipimo | |
| Upinzani wa maoni | max. 35 V DC |
| Idadi ya nafasi | 1 |
| Volti ya kuongezeka iliyokadiriwa | 0.5 kV |
| Kiwango cha ulinzi | IP20 |
| Mzigo wa juu zaidi wa uwezo | 45000 µF (Depending on the current setting and the short-circuit current available) |
| Fuse ya chelezo inayohitajika | Only required if Imaxof the power supply > the short-circuit switching capacity. Integrated failsafe element. |
| Kupungua kwa halijoto | 24 A DC (at 60 °C) |
| Kupima uvumilivu I | ± 15 % |
| Mtetemo (uendeshaji) | 10 Hz ... 57.6 Hz (Amplitude ±0.35 mm; in accordance with IEC 60068-2-6, Test Fc) |
| Zima volteji nyingi kupita kiasi | ≥ 30.5 V DC (active) |
| Zima ya undervoltage | ≤ 17.8 V DC (active) |
| Viwango/vipimo | EN 61000-6-2 |
| Mkondo wa mzunguko uliofungwa I0 | typ. 25 mA |
| MTBF (IEC 61709, SN 29500) | 8403361 h (at 25 °C with 21 % load) |
| Muda wa kuanzisha moduli | 1.6 s |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 8 |
| Mkondo uliokadiriwa (uliorekebishwa awali) | 4 A |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 10 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 60 °C |
| Uwezo wa kubadili mzunguko mfupi | 300 A |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V-0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Muda wa kusubiri baada ya kuzima kituo | 5 s (at overload / short circuit) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika, yenye kipete, na kifuniko cha plastiki | 0.25 mm² ... 4 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika, yenye kipete bila kifuniko cha plastiki | 0.25 mm² ... 6 mm² |
Maelezo ya Bidhaa
Multi-channel electronic equipment protection switch to protect four consumers in 24 V DC in case of overload and short circuit. With electronic locking of the set rated currents. For installation on
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
