CABLE-FLK50/OE/0,14/ 400
CABLE-FLK50/OE/0,14/ 400 2305884 PHOENIX CONTACT Cable
$0.00USD
3891 kwenye hisa
Vipimo Muhimu
:-10 °C ... 70 °C (flexible installation)
nyekundu:IDC/FLK50 (3) = ()
Dokezo:The wires are marked and fitted with ferrules
bluu:IDC/FLK50 (7) = ()
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| -10 °C ... 70 °C (flexible installation) | |
| nyekundu | IDC/FLK50 (3) = () |
| Dokezo | The wires are marked and fitted with ferrules |
| bluu | IDC/FLK50 (7) = () |
| kijivu | IDC/FLK50 (9) = () |
| Lami | 2.54 mm |
| nyeusi | IDC/FLK50 (1) = () |
| kahawia | IDC/FLK50 (2) = () |
| kijani | IDC/FLK50 (6) = () |
| nyeupe | IDC/FLK50 (10) = () |
| chungwa | IDC/FLK50 (4) = () |
| zambarau | IDC/FLK50 (8) = () |
| njano | IDC/FLK50 (5) = () |
| Urefu | ≤ 2000 m |
| Imehifadhiwa | no |
| kijivu-nyekundu | IDC/FLK50 (47) = () |
| kahawia-nyekundu | IDC/FLK50 (21) = () |
| kijani-nyekundu | IDC/FLK50 (31) = () |
| nyeupe-nyekundu | IDC/FLK50 (13) = () |
| Aina ya kebo | 50X0.14 [PVC] |
| kahawia-bluu | IDC/FLK50 (25) = () |
| kahawia-kijivu | IDC/FLK50 (27) = () |
| kijivu-nyeusi | IDC/FLK50 (45) = () |
| kijivu-kahawia | IDC/FLK50 (46) = () |
| kijivu-kijani | IDC/FLK50 (50) = () |
| kijani-bluu | IDC/FLK50 (33) = () |
| kijani-kijivu | IDC/FLK50 (35) = () |
| nyeupe-bluu | IDC/FLK50 (17) = () |
| nyeupe-kijivu | IDC/FLK50 (19) = () |
| njano-nyekundu | IDC/FLK50 (39) = () |
| kahawia-nyeusi | IDC/FLK50 (20) = () |
| kahawia-kijani | IDC/FLK50 (24) = () |
| kahawia-nyeupe | IDC/FLK50 (28) = () |
| kijivu-chungwa | IDC/FLK50 (48) = () |
| kijivu-njano | IDC/FLK50 (49) = () |
| kijani-nyeusi | IDC/FLK50 (29) = () |
| kijani-kahawia | IDC/FLK50 (30) = () |
| kijani-nyeupe | IDC/FLK50 (36) = () |
| nyeupe-nyeusi | IDC/FLK50 (11) = () |
| nyeupe-kahawia | IDC/FLK50 (12) = () |
| nyeupe-kijani | IDC/FLK50 (16) = () |
| njano-bluu | IDC/FLK50 (41) = () |
| njano-kijivu | IDC/FLK50 (43) = () |
| Urefu wa kebo | 4 m |
| Haina halojeni | no |
| Aina ya bidhaa | System cable |
| Mtindo wa UL AWM | 2464/1061 |
| kahawia-chungwa | IDC/FLK50 (22) = () |
| kahawia-zambarau | IDC/FLK50 (26) = () |
| kahawia-njano | IDC/FLK50 (38) = () |
| kijani-chungwa | IDC/FLK50 (32) = () |
| kijani-zambarau | IDC/FLK50 (34) = () |
| nyeupe-machungwa | IDC/FLK50 (14) = () |
| nyeupe-zambarau | IDC/FLK50 (18) = () |
| nyeupe-njano | IDC/FLK50 (15) = () |
| njano-nyeusi | IDC/FLK50 (37) = () |
| njano-nyeupe | IDC/FLK50 (44) = () |
| njano-chungwa | IDC/FLK50 (40) = () |
| njano-zambarau | IDC/FLK50 (42) = () |
| Aina ya kondakta | Round cable set |
| Mstari wa ishara wa AWG | 26 |
| Marekebisho ya makala | 06 |
| Upinzani wa kebo | ≤ 145 Ω/km (20 °C) |
| Upinzani wa moto | IEC 60332-1-2 (raw cable) |
| Mbinu ya muunganisho | Single wires |
| Upinzani dhidi ya mafuta | can withstand occasional splashes (raw cable) |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Maelezo kuhusu uendeshaji | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Idadi ya nafasi | 50 |
| Kiwango cha ulinzi | IP00 |
| Upinzani wa insulation | ≥ 20 MΩ*km (20 °C) |
| Idadi ya miunganisho | 1 |
| Ala ya nje, rangi | gray |
| Hali ya uendeshaji ya nominella | 100% operating factor |
| Volti ya uendeshaji (AC) | ≤ 30 V AC |
| Volti ya uendeshaji (DC) | ≤ 60 V DC |
| Ala ya nje, nyenzo | Semi-rigid PVC |
| Sehemu ya msalaba ya kondakta | 50x 0.14 mm² |
| Kipenyo cha kebo ya nje | 10.30 mm ±0.4 mm |
| Mkondo (Kwa kila njia, 50°C) | ≤ 1 A (Uncoiled, see derating) |
| Mkondo (Kwa kila njia, 70°C) | ≤ 0.6 A (Uncoiled, see derating) |
| Urefu wa kung'oa (Ala) | 150 mm |
| Mizunguko ya kuingiza/kutoa | > 50 |
| Kipenyo cha waya ikijumuisha insulation | 1 mm ±0.03 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C (fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.16 mm |
| Uwezo wa mzigo unaobadilika (kuinama) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
| Muunganisho katika acc. na kiwango cha kawaida | based on IEC 60603-13 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 80 °C |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 86 mm |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 (Installation location) |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 161 mm |
Maelezo ya Bidhaa

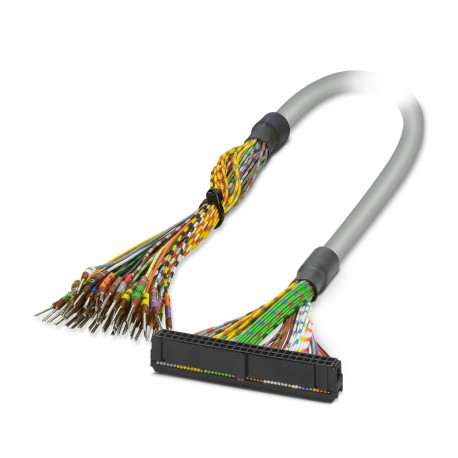

Ready-made round cable; connection 1: Single conductors (50-poles) (Conductors are labeled and equipped with ferrules); Connection 2: Female IDC/FLK connection (1x 50-poles); Cable length: 4 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
