CA2T1

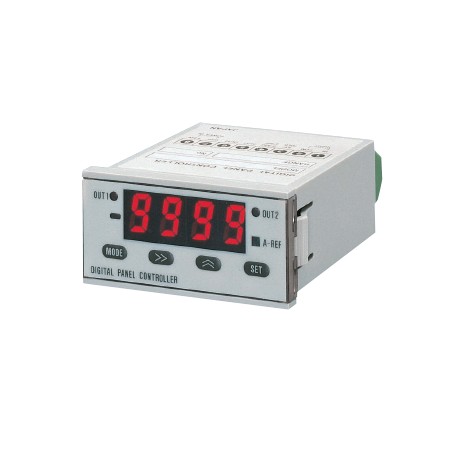

CA2T1 CA2-T1 PANASONIC Digital panel meter, signal input 4 to 20mA, 4 digit LED, NPN
$0.00USD
4352 kwenye hisa
Vipimo Muhimu
Bidhaa:Ultra-compact Digital Panel Controller
Onyesho:4 digit 7-segment red LED display(letter height: 8 mm0.315 in)
Nyenzo:Enclosure: Polycarbonate
Kazi:Auto-reference function, zero-adjust function, scale setting function, threshold value setting function, hysteresis setting function, comparative output timer function, start / hold function, memory clear function, power supply ON-delay function etc.
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Ultra-compact Digital Panel Controller |
| Onyesho | 4 digit 7-segment red LED display(letter height: 8 mm0.315 in) |
| Nyenzo | Enclosure: Polycarbonate |
| Kazi | Auto-reference function, zero-adjust function, scale setting function, threshold value setting function, hysteresis setting function, comparative output timer function, start / hold function, memory clear function, power supply ON-delay function etc. |
| Uzito halisi | Net weight: 55 g approx. |
| Nambari ya Sehemu | CA2-T1 |
| Jina la bidhaa | Ultra-compact Digital Panel Controller CA2 |
| Kumbukumbu ya nakala rudufu | Non-volatile memory (EEPROM), Guaranteed write operations: 1,000,000 or less |
| Nambari ya Bidhaa | CA2-T1 |
| Volti ya usambazaji | 24 V DC ± 10 % Ripple P-P 10 % or less |
| Mbinu ya kuunganisha | Terminal block connection |
| Matumizi ya nguvu | 2.8 W or less |
| Mpangilio wa ubora | 1 digit |
| Anza / shikilia ingizo | High level (supply voltage, or open): Start, Low level (1.5 V or less): Hold |
| Onyesho: Onyesho la masafa | Selectable span of 4,000 Nos. between -9999 to +9999 is displayed. ("+" is not displayed) |
| Onyesho: Usahihi wa onyesho | ±(0.1 % F.S. + 1 digit) at 23 ± 5 ℃73.4 ± 41 ℉, 35 to 85 % RH |
| Ingizo za analogi: Kiwango cha ingizo | 4 to 20 mA |
| Viashiria: Operesheni ya OUT2 | Orange LED(Measurement mode: Lights up when OUT 2 is ON. Blinks when display is changed to OUT 2 threshold value display.Setting mode: Blinks when OUT 2 threshold value and comparison conditions are set or when full scale of scale setting function is set.) |
| Ingizo za analogi: Mbinu ya ingizo | Single end input |
| Viashiria: Operesheni ya OUT 1 | Orange LED(Measurement mode: Lights up when OUT 1 is ON. Blinks when display is changed to OUT 1 threshold value display.Setting mode: Blinks when OUT 1 threshold value and comparison conditions are set or when zero scale of scale setting function is set.) |
| Ingizo za analogi: Idadi ya ingizo | 1 No. |
| Ingizo za analogi: Kiwango cha sampuli | Selectable from 200 times/sec., 20 times/sec., 10 times/sec. or 5 times/sec. |
| Mpangilio wa thamani ya kizingiti | -9999 to +9999 |
| Onyesho: Kiwango cha kuonyesha upya | Selectable from 20 times/sec., 10 times/sec., 5 times/sec., 2.5 times/sec., 1 time/sec. or 0.5 time/sec. |
| Ingizo za analogi: Impedans ya Ingizo | 20 Ω |
| Viashiria: Kiashiria cha polari | Red LED(lights up when the displayed value or the threshold value is negative) |
| Matokeo ya kulinganisha (NJE 1, NJE 2) | NPN open-collector transistor・ Maximum sink current: 100 mA・ Applied voltage: 35 V DC or less (between comparative output and GND)・ Residual voltage:1.3 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Ingizo za analogi: Mbinu ya ubadilishaji wa A/D | Successive approximation method |
| Onyesho: Sifa za halijoto | ±0.5 % F.S. over 0 to +50 ℃+32 to +122 ℉ |
| Viashiria: Uendeshaji wa marejeleo otomatiki | Green LED(lights up when auto-reference function is used) |
| Upinzani wa mazingira: Unyevu wa mazingira | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Upinzani wa mazingira: Upinzani wa mshtuko | 294 m/s2(30 G) acceleration in X, Y and Z directions three times each |
| Matokeo ya kulinganisha (NJE 1, NJE 2): Hysteresis | Variable from 1 to 3,999 digits |
| Upinzani wa mazingira: Joto la kawaida | 0 to +55 ℃+32 to +131 ℉(No dew condensation), Storage: -20 to +70 ℃-4 to +158 ℉ |
| Upinzani wa mazingira: Upinzani wa mtetemo | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Upinzani wa mazingira: Upinzani wa insulation | 100 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Matokeo ya kulinganisha (NJE 1, NJE 2): Muda wa majibu | 5 ms or less(when start / hold input is used at a sampling rate of 200 times/sec.) |
| Upinzani wa kimazingira: Ustahimilivu wa volteji | 1,500 V AC for one min. between all supply terminals connected together and enclosure |
| Ingizo la kurekebisha sifuri (0-ADJ.) / Ingizo la marejeleo otomatiki (A-REF.) | Input condition: Non-voltage contact or NPN open-collector transistor inputSignal condition: Negative logic, Input time duration 10 ms or moreSignal level: ON ... 1.5 V or less (output current: 10 mA or less), OFF ... Supply voltage or openGuaranteed No. of zero-adjust input usage: 10 million times or less (for zero-adjust back-up setting) |
