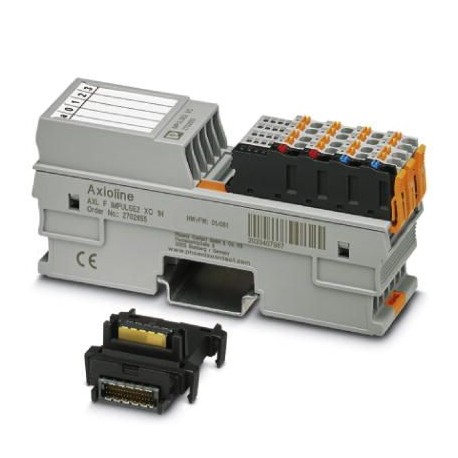

AXL F IMPULSE2 XC 1H
AXL F IMPULSE2 XC 1H 2702655 PHOENIX CONTACT Special function module
$0.00USD
3444 kwenye hisa
Vipimo Muhimu
GTIN:4055626269511
Dokezo:Made to Order (non-returnable)
Ufunguo wa kuagiza:2702655
Ukurasa wa katalogi:Page 123 (C-6-2017)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626269511 |
| Dokezo | Made to Order (non-returnable) |
| Ufunguo wa kuagiza | 2702655 |
| Ukurasa wa katalogi | Page 123 (C-6-2017) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) |
| (Violesura) | Transient protection |
| (Ingizo za kidijitali) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Nchi ya asili | DE (Germany) |
| Nambari ya ushuru maalum | 85389091 |
| Uteuzi (Jumla) | Axioline F local bus |
| (Uwezo wa Axioline) | Transient protection |
| Uteuzi (Violesura) | Supply voltage input UI |
| Jina la kuingiza (Data ya msimbaji) | Digital inputs |
| Idadi ya njia (Jumla) | 2 |
| Mbinu ya muunganisho (Jumla) | Bus base module |
| Kina (Data Muhimu ya Biashara) | 54 mm |
| Volti ya usambazaji (Violesura) | 24 V DC |
| Upana (Data Muhimu ya Biashara) | 35 mm |
| (Viwango na Kanuni) | No hazardous substances above threshold values |
| Urefu (Data Muhimu ya Kibiashara) | 126.1 mm |
| Kasi ya upitishaji (Jumla) | 100 Mbps |
| Matumizi ya nguvu (Violesura) | max. 0.72 W (Supply of pulse interface, without encoder supply) |
| Uzito halisi (Hali ya mazingira) | 134 g |
| Idadi ya ingizo (Data ya msimbaji) | 4 |
| Aina ya ulinzi (Violesura) | Surge protection of the supply voltage |
| Mbinu ya muunganisho (Data ya msimbaji) | Push-in connection |
| Matumizi ya sasa (Violesura) | max. 30 mA (Supply of pulse interface, without encoder supply) |
| Muda wa kichujio cha kuingiza (Data ya msimbaji) | 250 µs |
| Kiwango cha ulinzi (Vipimo) | IP20 (per manufacturer's declaration) |
| Vipimo vya mitambo (Pembejeo za kidijitali) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Darasa la ulinzi (Pembejeo za kidijitali) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Kiwango cha volteji ya usambazaji (Violesura) | 19.2 V DC ... 30 V DC including all tolerances, including ripple |
| Aina ya ulinzi (Data ya msimbaji) | Polarity reversal protection of the inputs |
| Aina ya kupachika (Hali ya mazingira) | DIN rail |
| Kiwango cha volteji (Uwezo wa Axioline) | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Teknolojia ya muunganisho (Data ya msimbaji) | 1-wire |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 134.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| RoHS ya China (Viwango na Kanuni) | Environmentally friendly use period: unlimited = EFUP-e |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Maelezo ya ingizo (Data ya msimbaji) | EN 61131-2 types 1 and 3 |
| Maelezo kuhusu vipimo (Data Muhimu za Kibiashara) | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
| Aina ya ulinzi (Uwezo wa Axioline) | Surge protection |
| Mchoro wa vipimo (Data Muhimu ya Biashara) | |
| Mkondo wa pembejeo wa nominella katika UIN (data ya msimbaji) | 2.4 mA |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 60 °C (Standard) |
| Volti ya pato la nominella (Uwezo wa Axioline) | 24 V DC (UI- 0.5 V) |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ishara ya kiwango cha volteji ya kuingiza "0" (Data ya msimbaji) | -3 V DC ... 5 V DC |
| Ishara ya kiwango cha volteji ya kuingiza "1" (Data ya msimbaji) | 11 V DC ... 30 V DC |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 95 % (non-condensing) |
| Uwezo wa kubeba wa sasa (Axioline potentials) | typ. 500 mA |
| Dokezo kuhusu vipimo vya uzito (Hali ya mazingira) | with connectors and bus base module |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Idadi ya vifaa 24 vya kusimba V (Axioline potentials) | 2 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 5 % ... 95 % (non-condensing) |
Maelezo ya Bidhaa
AxiolineFXC, function module, 2 digital pulse interfaces for evaluating magnetostrictive displacement transducers with start/stop interface, local bus transmission rate 100MBit/s, IP20 rating, includi
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
