AXL F DOR4/2 AC/220DC 1F

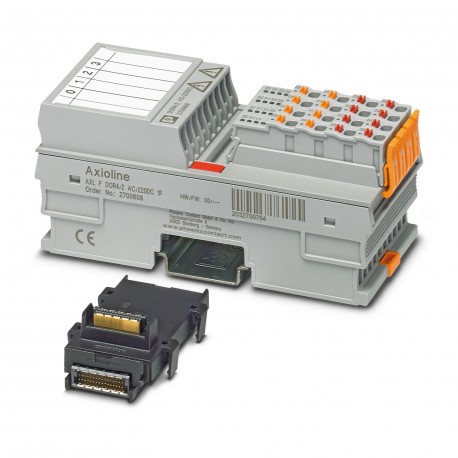

AXL F DOR4/2 AC/220DC 1F 2700608 PHOENIX CONTACT I/O module
$0.00USD
4692 kwenye hisa
Vipimo Muhimu
:For DC see load limit curve, e.g., the following values:
Aina:block modular
Kina:54 mm
Upana:53.6 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| For DC see load limit curve, e.g., the following values: | |
| Aina | block modular |
| Kina | 54 mm |
| Upana | 53.6 mm |
| Urefu | 126.1 mm |
| Droo ya sasa | max. 280 mA (all relays pick up) |
| Aina ya bidhaa | I/O component |
| Aina ya kupachika | DIN rail mounting |
| Familia ya bidhaa | Axioline F |
| Volti ya usambazaji | 5 V DC (via bus base module) |
| Jina la muunganisho | Axioline F connector |
| Marekebisho ya makala | 02 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Bus base module |
| Nafasi ya kupachika | any (observe temperature and current derating) |
| Idadi ya matokeo | 4 (floating) |
| Wigo wa utoaji | including bus base module and Axioline F connectors |
| Kubadilisha mkondo | max. 8 A AC (cos phi = 1) |
| Eneo la anwani ya kuingiza | 0 Byte |
| Dokezo kuhusu vipimo | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Uwezo wa kubadili | max. 2000 VA |
| Kasi ya upitishaji | 100 Mbps |
| Mchoro wa vipimo | |
| Dokezo kwenye programu | Only for industrial use |
| Eneo la anwani ya kutoa | 1 Byte |
| Masafa ya kubadili | max. 6 (per minute) |
| Kiwango cha ulinzi | IP20 |
| Idadi ya violesura | 2 |
| Kategoria ya volteji nyingi | III (EN 61010-2-201/UL 61010-2-201), up to 2000 m above sea levelII (EN 61010-2-201/UL 61010-2-201), up to 3000 m above sea level |
| Uteuzi wa kawaida | Ambient conditions |
| Teknolojia ya muunganisho | 2-conductor |
| Aina ya ubadilishaji wa mguso | N/O contact |
| Maisha ya huduma ya mitambo | 10x 106cycles |
| Data ya vigezo inayohitajika | 1 Byte |
| Shinikizo la hewa (uendeshaji) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Viwango/vipimo | IEC 61850-3 |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 16 |
| Data ya usanidi inayohitajika | 6 Byte |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 1.5 mm² |
| Kumbuka kuhusu njia ya muunganisho | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.When selecting the cables, please note that in the case of a small conductor cross section and high current, the terminal point temperature may be up to 30 K above the ambient temperature. |
| Sehemu ya msalaba ya kondakta, ngumu | 0.2 mm² ... 1.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 60 °C (max. 6 A/channel for wall mounting on horizontal DIN rail; max. 4 A/channel for any mounting position) |
| Shinikizo la hewa (uhifadhi/usafiri) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 1.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 5 % ... 95 % (non-condensing) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika | 0.2 mm² ... 1.5 mm² |
| Volti ya majaribio: Mguso wa relay / mantiki | 4 kV |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 5 % ... 95 % (non-condensing) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 1.4 W |
| Volti ya majaribio: Mguso wa relay / ardhi inayofanya kazi | 4 kV |
| Uwezo wa kubadili kulingana na IEC 60947-5-1 | 6 A (120 V (AC15)) |
| Volti ya majaribio: Mgusano wa relay/relay (mgusano wazi) | 1 kV, 50 Hz, 1 min. |
| Volti ya majaribio: Mgusano wa relay/relay (viunganishi vya kiume vilivyo karibu) | 2.5 kV |
Maelezo ya Bidhaa
AxiolineF, Relay module, Relay outputs:4 (potential-free), Open contact, 220 VDC, 230 VAC, local bus transmission rate:100 MBit/s, protection index: IP20, including bus socket module and AxiolineF con
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
