AXL F BK S3

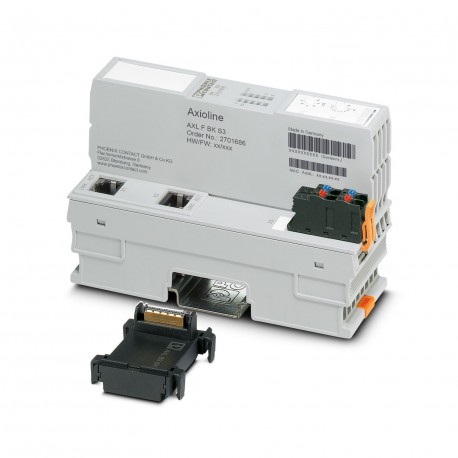

AXL F BK S3 2701686 PHOENIX CONTACT Bus coupler
$0.00USD
4504 kwenye hisa
Vipimo Muhimu
:Micro USB type B (up to HW 04)
Aina:block modular
Kina:74 mm
Upana:45 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Micro USB type B (up to HW 04) | |
| Aina | block modular |
| Kina | 74 mm |
| Upana | 45 mm |
| Urefu | 126.1 mm |
| Droo ya sasa | max. 570 mA (2.0 A at UBus, UL= 24 V, up to HW 04) |
| Aina ya bidhaa | I/O component |
| Aina ya kupachika | DIN rail mounting |
| Vipimo | Sercos specification 1.31 |
| Aina ya vifaa | Sercos slave |
| Familia ya bidhaa | Axioline F |
| Volti ya usambazaji | 24 V DC |
| Jina la muunganisho | Axioline F connector |
| Marekebisho ya makala | 17 |
| Kiwango cha uchafuzi wa mazingira | 2 (IEC 60664-1, EN 60664-1) |
| Darasa la ulinzi | III (IEC 61140, EN 61140, VDE 0140-1) |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | RJ45 jack |
| Nafasi ya kupachika | any (observe temperature derating) |
| Kitengo cha usambazaji wa umeme | max. 2 A (up to HW 04) |
| Wigo wa utoaji | including bus base module and Axioline F connector |
| Dokezo kuhusu vipimo | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Mzunguko wa kinga | Surge protection; electronic |
| Kasi ya upitishaji | 100 Mbps (full duplex) |
| Mchoro wa vipimo | |
| Dokezo kwenye programu | Only for industrial use |
| Kiwango cha ulinzi | IP20 |
| Idadi ya violesura | 2 |
| Kategoria ya volteji nyingi | II (IEC 60664-1, EN 60664-1) |
| Kiwango cha voltage ya usambazaji | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Fizikia ya uhamishaji | Ethernet in RJ45 twisted pair |
| Shinikizo la hewa (uendeshaji) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Itifaki mahususi za mfumo | Sercos protocols Sercos |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 16 |
| Idadi ya vifaa vinavyotumika | max. 63 (per station) |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 1.5 mm² |
| Kumbuka kuhusu njia ya muunganisho | Auto negotiation and autocrossing |
| Sehemu ya msalaba ya kondakta, ngumu | 0.2 mm² ... 1.5 mm² |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail) |
| Shinikizo la hewa (uhifadhi/usafiri) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 1.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 5 % ... 95 % (non-condensing) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika | 0.2 mm² ... 1.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 5 % ... 95 % (non-condensing) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 3.7 W |
| Idadi ya vifaa vya basi vya ndani vinavyoweza kuunganishwa | max. 63 |
| Volti ya majaribio: Kiolesura cha Ethernet 1 / ardhi inayofanya kazi | 1500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Kiolesura cha Ethernet 2 / ardhi inayofanya kazi | 1500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Kiolesura cha Ethernet 1 / Kiolesura cha Ethernet 2 | 1500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Volti ya mawasiliano ya 24 V (UL) ya kulisha/kuweka ardhini inayofanya kazi | 500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Kiolesura cha Ethernet volti ya mawasiliano ya 1/24 V (UL) | 1500 V AC, 50 Hz, 1 min. |
| Volti ya majaribio: Kiolesura cha Ethernet volteji ya mawasiliano ya 2/24 V (UL) | 1500 V AC, 50 Hz, 1 min. |
Maelezo ya Bidhaa
AxiolineF, Bus coupler, Sercos, RJ45 female, local bus transmission rate:100 MBit/s, protection rating: IP20, including bus base module and AxiolineF connector
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
