AXL E EIP DI16 M12 6P

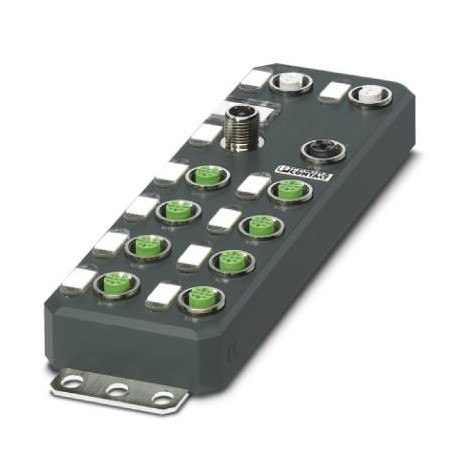

AXL E EIP DI16 M12 6P 2701493 PHOENIX CONTACT Distributed I/O device
$0.00USD
4439 kwenye hisa
Vipimo Muhimu
GTIN:4046356763479
Ufunguo wa kuagiza:2701493
Ukurasa wa katalogi:Page 194 (C-6-2017)
Kina (Dokezo):30.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356763479 |
| Ufunguo wa kuagiza | 2701493 |
| Ukurasa wa katalogi | Page 194 (C-6-2017) |
| Kina (Dokezo) | 30.5 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 60 mm |
| (Violesura) | DHCP |
| Urefu (Dokezo) | 185 mm |
| (Ingizo za kidijitali) | 24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min. |
| Nchi ya asili | DE (Germany) |
| Jina la kuingiza (Ugavi) | Digital inputs |
| Nambari ya ushuru maalum | 85176200 |
| Uteuzi (Jumla) | EtherNet/IP™ |
| (Kutengwa kwa umeme) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Uteuzi (Violesura) | EtherNet/IP™ |
| Nafasi ya kuchimba mashimo (Kumbuka) | 198.5 mm |
| Idadi ya njia (Jumla) | 2 |
| Maelezo kuhusu vipimo (Maelezo) | The height is 212 mm including fixing clips. |
| Idadi ya pembejeo (Ugavi) | 16 |
| Mbinu ya muunganisho (Ugavi) | M12 connector, double occupancy |
| Mchoro wa vipimo (Dokezo) | |
| Muda wa kichujio cha kuingiza (Ugavi) | < 1000 µs |
| Vipimo (Violesura) | CIP Edition 3.11EIP adaptation of CIP 1.12 |
| Mbinu ya muunganisho (Jumla) | M12 fast connection technology |
| Aina ya vifaa (Violesura) | EtherNet/IP™ slave |
| Aina ya ulinzi (Ugavi) | Overload protection, short-circuit protection of sensor supply |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Kasi ya upitishaji (Jumla) | 10/100 Mbps (with auto negotiation) |
| Idadi ya nafasi (Jumla) | 4 |
| Sehemu ya majaribio (Ingizo za kidijitali) | 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. |
| Teknolojia ya muunganisho (Ugavi) | 4-wire |
| Uzito halisi (Hali ya mazingira) | 547 g |
| Itifaki zinazoungwa mkono (Violesura) | SNMP v1 |
| Kiwango cha ulinzi (Vipimo) | IP65/IP67 |
| Maelezo ya pembejeo (Ugavi) | EN 61131-2 types 1 and 3 |
| Aina ya kupachika (Hali ya mazingira) | Wall mounting |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 547.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Nyenzo za makazi (Hali ya mazingira) | Pocan® |
| Mkondo wa pembejeo wa nominella katika UIN (Ugavi) | typ. 3 mA |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 25; |
| Sehemu ya muunganisho wa uteuzi (Jumla) | Copper cable |
| Itifaki mahususi za mfumo (Violesura) | EtherNet/IP™ protocols ACD |
| Ishara ya kiwango cha volteji ya kuingiza "0" (Ugavi) | 0 V ... 5 V DC |
| Ishara ya kiwango cha volteji ya kuingiza "1" (Ugavi) | 11 V DC ... 30 V DC |
| Vipimo vya mitambo (Utenganishaji wa umeme) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Dokezo kuhusu njia ya muunganisho (Jumla) | D-coded |
| Darasa la ulinzi (Utenganishaji wa umeme) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 60 °C |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 95 % |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Uteuzi (Mipaka ya mfumo wa kiunganishi cha basi) | Actuators (UA) for additional devices |
| Volti ya usambazaji (Mipaka ya mfumo wa kiunganishi cha basi) | 24 V DC |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 85 °C |
| Njia ya muunganisho (Mipaka ya mfumo wa kiunganishi cha basi) | M12 connector (T-coded) |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 5 % ... 95 % |
| Matumizi ya sasa (Mipaka ya mfumo wa kiunganishi cha basi) | typ. 3 mA ±15 % (at 24 V DC) |
| Idadi ya nafasi (Mipaka ya mfumo wa kiunganishi cha basi) | 4 |
| Kiwango cha volteji cha usambazaji wa kawaida (Mipaka ya mfumo wa kiunganishi cha basi) | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Maelezo ya Bidhaa
AxiolineE, Digital input equipment, EtherNet/IP™, M12 quick connection technology, Digital inputs: 16, 24 VDC, connection technology: 4 conductors, Plastic housing, protection index: IP65/IP67
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
