AXL E EC DIO16 M12 6P

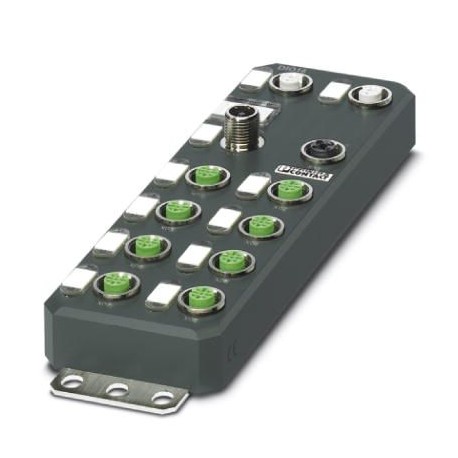

AXL E EC DIO16 M12 6P 2701522 PHOENIX CONTACT Distributed I/O device
$0.00USD
3369 kwenye hisa
Vipimo Muhimu
GTIN:4046356763721
Ufunguo wa kuagiza:2701522
Ukurasa wa katalogi:Page 192 (C-6-2017)
Kina (Dokezo):30.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356763721 |
| Ufunguo wa kuagiza | 2701522 |
| Ukurasa wa katalogi | Page 192 (C-6-2017) |
| Kina (Dokezo) | 30.5 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 60 mm |
| (Violesura) | Logical addressing |
| Urefu (Dokezo) | 185 mm |
| Nchi ya asili | DE (Germany) |
| (Matokeo ya kidijitali) | 24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min. |
| Jina la kuingiza (Ugavi) | Digital inputs |
| Nambari ya ushuru maalum | 85176200 |
| Uteuzi (Jumla) | EtherCAT® |
| (Kutengwa kwa umeme) | Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g |
| Uteuzi (Violesura) | EtherCAT® |
| Nafasi ya kuchimba mashimo (Kumbuka) | 198.5 mm |
| Idadi ya njia (Jumla) | 2 |
| Maelezo kuhusu vipimo (Maelezo) | The height is 212 mm including fixing clips. |
| Idadi ya pembejeo (Ugavi) | 16 |
| Mbinu ya muunganisho (Ugavi) | M12 connector, double occupancy |
| Mchoro wa vipimo (Dokezo) | |
| Muda wa kichujio cha kuingiza (Ugavi) | < 1000 µs |
| Vipimo (Violesura) | ETG.1000 V1.02 |
| Mbinu ya muunganisho (Jumla) | M12 fast connection technology |
| Aina ya vifaa (Violesura) | EtherCAT®slave |
| Aina ya ulinzi (Ugavi) | Overload protection, short-circuit protection of sensor supply |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Jina la matokeo (Ingizo za kidijitali) | Digital outputs |
| Kasi ya upitishaji (Jumla) | 100 Mbps (with auto negotiation) |
| Idadi ya nafasi (Jumla) | 4 |
| Teknolojia ya muunganisho (Ugavi) | 4-wire |
| Sehemu ya majaribio (matokeo ya kidijitali) | 24 V supply (communications power/sensor supply, digital inputs/outputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. |
| Uzito halisi (Hali ya mazingira) | 541.3 g |
| Volti ya kutoa (Pembejeo za dijitali) | 24 V DC |
| Aina ya anwani (Violesura) | Auto-increment addressing |
| Kiwango cha ulinzi (Vipimo) | IP65/IP67 |
| Maelezo ya pembejeo (Ugavi) | EN 61131-2 types 1 and 3 |
| Mbinu ya muunganisho (Ingizo za kidijitali) | M12 connector, double occupancy |
| Aina ya kupachika (Hali ya mazingira) | Wall mounting |
| Idadi ya matokeo (Pembejeo za kidijitali) | 16 |
| Aina ya ulinzi (Pembejeo za kidijitali) | Overload protection, short-circuit protection of outputs |
| Mzigo wa nominella, ohmic (Ingizo za dijitali) | 12 W (48 Ω, with nominal voltage) |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 541.300 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Nyenzo za makazi (Hali ya mazingira) | Pocan® |
| Mkondo wa pembejeo wa nominella katika UIN (Ugavi) | typ. 3 mA |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 25; |
| Teknolojia ya muunganisho (Ingizo za kidijitali) | 3-wire |
| Sehemu ya muunganisho wa uteuzi (Jumla) | Copper cable |
| Itifaki mahususi za mfumo (Violesura) | Mailbox protocols CANopen®over EtherCAT® |
| Ishara ya kiwango cha volteji ya kuingiza "0" (Ugavi) | 0 V ... 5 V DC |
| Ishara ya kiwango cha volteji ya kuingiza "1" (Ugavi) | 11 V DC ... 30 V DC |
| Vipimo vya mitambo (Utenganishaji wa umeme) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
| Volti ya pato la kawaida (Pembejeo za dijitali) | 24 V DC (from voltage US) |
| Dokezo kuhusu njia ya muunganisho (Jumla) | D-coded |
| Darasa la ulinzi (Utenganishaji wa umeme) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Mzigo wa kawaida, wa kufata (Ingizo za kidijitali) | 12 VA (1.2 H, 48 Ω, with nominal voltage) |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 60 °C |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 95 % |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | 1 |
| Uteuzi (Mipaka ya mfumo wa kiunganishi cha basi) | Actuators (UA) for additional devices |
| Volti ya usambazaji (Mipaka ya mfumo wa kiunganishi cha basi) | 24 V DC |
| Kiwango cha juu cha mkondo wa kutoa kwa kila chaneli (Pembejeo za dijitali) | 500 mA |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 85 °C |
| Njia ya muunganisho (Mipaka ya mfumo wa kiunganishi cha basi) | M12 connector (T-coded) |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 5 % ... 95 % |
| Matumizi ya sasa (Mipaka ya mfumo wa kiunganishi cha basi) | typ. 3 mA ±15 % (at 24 V DC) |
| Idadi ya nafasi (Mipaka ya mfumo wa kiunganishi cha basi) | 4 |
| Kiwango cha volteji cha usambazaji wa kawaida (Mipaka ya mfumo wa kiunganishi cha basi) | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Maelezo ya Bidhaa
AxiolineE, Digital input/output equipment, EtherCAT®, M12 quick connection technology, Digital inputs: 16, 24 VDC, connection technology: 4 conductors, Digital outputs:16, 24 VDC, connection technolog
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
