AXC 3050

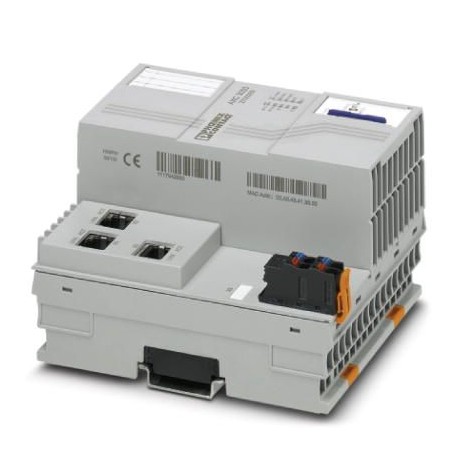

AXC 3050 2700989 PHOENIX CONTACT Controller
$0.00USD
4644 kwenye hisa
Vipimo Muhimu
GTIN:4046356731201
Ufunguo wa kuagiza:2700989
Ukurasa wa katalogi:Page 77 (C-6-2017)
Kina (Dokezo):74 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356731201 |
| Ufunguo wa kuagiza | 2700989 |
| Ukurasa wa katalogi | Page 77 (C-6-2017) |
| Kina (Dokezo) | 74 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 100 mm |
| Urefu (Dokezo) | 125.9 mm |
| Nchi ya asili | DE (Germany) |
| Mshtuko (Vipimo) | 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27 |
| Nambari ya ushuru maalum | 85371091 |
| Mshtuko (Data ya jumla) | 30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27 |
| Jina la kuingiza (PROFINET) | Counter input for 24 V signals |
| Uzito (Usambazaji wa umeme) | 444 g |
| Masafa ya kuingiza (PROFINET) | max. 100 kHz (with AXL F DI16/1 HS 1H module) |
| Nambari (Kitendakazi cha Fieldbus) | 1 |
| (Mfumo wa muda wa utekelezaji wa IEC 61131) | max. 8192 Bit (internal Modbus /TCP client) |
| Idadi ya pembejeo (PROFINET) | max. 2 (via any digital inputs of the Axioline F modules) |
| (Viwango na Kanuni) | No hazardous substances above threshold values |
| Volti ya usambazaji (I/Os ya moja kwa moja) | 24 V DC |
| Kinga dhidi ya EF (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m |
| Kiolesura (Kitendakazi cha Fieldbus) | Service |
| Hifadhi ya wingi (Mfumo wa kudhibiti) | 8 Mbyte |
| Kichakataji (Ubunifu wa mitambo) | Intel®Atom™ E660 1x 1.3 GHz |
| Mawimbi ya mabaki (I/Os ya moja kwa moja) | ± 5 % |
| Kiwango cha sasisho (Violesura vya data) | max. of 256 devices |
| Kinga dhidi ya ESD (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Kipengele cha usalama (Ugavi wa umeme) | No |
| Usambazaji wa Nguvu (I/Os ya Moja kwa Moja) | max. 9.8 W |
| Kumbukumbu ya programu (Mfumo wa Udhibiti) | 4 Mbyte |
| Saa ya muda halisi (Mfumo wa Udhibiti) | Yes |
| Vipimo (Violesura vya data) | Version 2.3 |
| Kinga ya kupasuka (Takwimu ya jumla) | Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV |
| Kinga dhidi ya kuongezeka (Takwimu za jumla) | Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV |
| Mshtuko (uendeshaji) (Data ya jumla) | 10g (Bump endurance test according to DIN EN 60068-2-27) |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Kitendakazi cha kifaa (Violesura vya data) | PROFINET controller, PROFINET device |
| Zana ya uhandisi (Mfumo wa Udhibiti) | PC WORX |
| Onyesho la uchunguzi (Usambazaji wa umeme) | No |
| Kiwango cha volteji ya usambazaji (I/Os ya moja kwa moja) | 19.2 V DC ... 30 V DC |
| Mtetemo (uendeshaji) (Vipimo) | 5g |
| Upungufu wa kidhibiti (Usambazaji wa umeme) | No |
| Utoaji wa kuingiliwa (Data ya jumla) | Noise emission test according to EN 61000-6-3 Radio interference properties EN 55022 Class A |
| Mtetemo (uendeshaji) (Data ya jumla) | 5g |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 444.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mbinu ya muunganisho (Kitendakazi cha Fieldbus) | USB type A, socket |
| Zana ya utambuzi (Hali za mazingira) | DIAG+ |
| Zana ya uhandisi (Hali ya mazingira) | PC WORX |
| RoHS ya China (Viwango na Kanuni) | Environmentally friendly use period: unlimited = EFUP-e |
| Kiwango cha juu cha matumizi ya sasa (I/Os ya moja kwa moja) | max. 976 mA (with 2 A at UBusfor the I/Os and UL= 24 V) |
| Kasi ya upitishaji (kazi ya basi la Fieldbus) | max. 115.2 kbps |
| Zana ya usanidi (Hali za mazingira) | Config+ Version 1.01 or later |
| Hifadhi ya wingi iliyohifadhiwa (Mfumo wa udhibiti) | 128 kByte |
| Idadi ya kazi za udhibiti (Mfumo wa udhibiti) | 16 |
| Matumizi ya kawaida ya sasa (I/Os ya Moja kwa Moja) | typ. 408 mA (without I/Os and UL= 24 V) |
| Halijoto ya kawaida (mkusanyiko) (Vipimo) | -5 °C ... 60 °C |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 60 °C (up to 2000 m above sea level) |
| Utangamano wa sumaku-umeme (Data ya jumla) | Conformance with EMC Directive 2014/30/EU |
| Mtetemo (uhifadhi/usafiri) (Takwimu ya jumla) | 5g |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Kiasi cha data ya mchakato (mfumo wa muda wa IEC 61131) | max. 4096 Bit (Axioline F local bus (input)) |
| Kinga dhidi ya kuingiliwa kunakofanywa (Takwimu za jumla) | Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Lugha za programu zinazotumika (Hali za mazingira) | Programming in acc. with IEC 61131-3 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Idadi ya vifaa vinavyotumika (mfumo wa muda wa IEC 61131) | max. 63 (per station) |
| Idadi ya vifaa vya basi vya ndani vinavyoweza kuunganishwa (mfumo wa muda wa IEC 61131) | max. 63 (observe current consumption) |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
