AF45-40-00RT

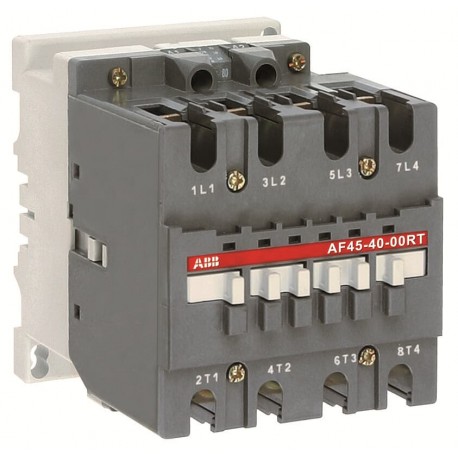

AF45-40-00RT 1SBL337210R7000 ABB AF45-40-00RT 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor
$0.00USD
4806 kwenye hisa
Vipimo Muhimu
:Main Circuit 50 / 60 Hz
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Taarifa za Msambazaji
ABB
Bidhaa: 44170
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| Darasa la mtandaoni | V11.0 : 27371003 |
| Viwango | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| Hali ya RoHS | Following EU Directive 2011/65/EU |
| Aina ya Kituo | Ring-Tongue Terminals |
| Jamii ya WEEE | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Cheti cha CCC | CCC_2018010304134049 |
| Cheti cha CQC | CQC2018010304134049 |
| Cheti cha Jumuiya ya Afrika Mashariki | EAC_RU C-FR ME77 B01010 |
| Cheti cha GOST | GOST_POCCFRME77B07175 |
| Taarifa za RoHS | 2CMT2021-006277 |
| Upana Halisi wa Bidhaa | 92 mm |
| Tamko la REACH | 2CMT2021-006202 |
| Urefu Halisi wa Bidhaa | 110 mm |
| Uzito Halisi wa Bidhaa | 1.42 kg |
| Kifurushi cha Kiwango cha 1 EAN | 3471522245403 |
| Masafa Yaliyokadiriwa (f) | Control Circuit 50 / 60 Hz |
| Kiwango cha Ulinzi | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 |
| Kuweka kwenye Reli ya DIN | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Nambari ya Ushuru wa Forodha | 85364900 |
| Vitengo vya Kiwango cha 1 cha Kifurushi | 1 piece |
| Upana wa Kiwango cha 1 cha Kifurushi | 142 mm |
| Vitengo vya Kiwango cha 2 cha Kifurushi | box 8 piece |
| Upana wa Kiwango cha 2 cha Kifurushi | 503 mm |
| Vitengo vya Kiwango cha 3 cha Kifurushi | 84 piece |
| Kiasi cha Chini cha Agizo | 1 piece |
| Urefu wa Kifurushi cha Ngazi ya 1 | 136 mm |
| Urefu wa Kifurushi cha Ngazi ya 2 | 307 mm |
| Halijoto ya Hewa ya Mazingira | Close to Contactor for Storage -60 ... +80 °C |
| Mchoro wa Vipimo vya CAD | 2CDC001079B0201 |
| Maelekezo na Miongozo | FPTC407767P0002 |
| Ukadiriaji wa Matumizi ya Jumla UL/CSA | (600 V AC) 80 A |
| Uwezo wa Kuvunja Upeo | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 900 A |
| Volti ya Uendeshaji Iliyokadiriwa | Main Circuit 690 V |
| Idadi ya Mawasiliano Kuu NC | 0 |
| Idadi ya Mawasiliano Kuu HAPANA | 4 |
| Msimbo wa Uainishaji wa Vitu | Q |
| Kina Halisi cha Bidhaa / Urefu | 119.5 mm |
| Uzito wa Jumla wa Kiwango cha 1 cha Kifurushi | 1.42 kg |
| Uzito wa Jumla wa Kiwango cha 2 cha Kifurushi | 11.36 kg |
| Volti ya Insulation Iliyokadiriwa (Ui) | acc. to IEC 60947-4-1 1000 V |
| Azimio la Uzingatiaji - CE | 1SBD250803U1000 |
| Kina / Urefu wa Kiwango cha 1 cha Kifurushi | 190 mm |
| Kina / Urefu wa Kiwango cha 2 cha Kifurushi | 153 mm |
| Azimio la Uzingatiaji - CCC | 2020980304001624 |
| Idadi ya Mawasiliano Saidizi NC | 0 |
| Idadi ya Mawasiliano Saidizi HAPANA | 0 |
| Azimio la Uzingatiaji - UKCA | 1SBD250820U1000 |
| Kiwango cha Juu cha Volti ya Uendeshaji UL/CSA | Main Circuit 600 V |
| Karatasi ya Data, Taarifa za Kiufundi | 1SNC001003C0202 |
| Kuweka kwa Skurubu (hazijatolewa) | 2 x M6 screws placed diagonally |
| Nguvu ya Uendeshaji Iliyokadiriwa AC-3 (Pe) | (415 V) 25 kW |
| Volti ya Mzunguko wa Udhibiti Iliyokadiriwa (Uc) | 50 Hz 100 ... 250 V |
| Uendeshaji wa Sasa Uliokadiriwa AC-1 (Yaani) | (690 V) 40 °C 70 A |
| Mkondo wa Uendeshaji Uliokadiriwa AC-3 (Yaani) | (415 V) 55 °C 37 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-1 (Yaani) | (110 V) 2 Poles in Series, 40 °C 70 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-3 (Yaani) | (110 V) 2 Poles in Series, 40 °C 70 A |
| Uendeshaji wa Sasa Uliokadiriwa DC-5 (Yaani) | (110 V) 2 Poles in Series, 40 °C 70 A |
| Urefu wa Juu wa Uendeshaji Unaruhusiwa | Without Derating 3000 m |
| Volti ya Kuhimili Msukumo Iliyokadiriwa (Uimp) | 8 kV |
| Kiolezo cha Kuripoti Migongano ya Madini (CMRT) | 9AKK108467A5658 |
| Mshtuko na Mtetemo Hustahimili IEC 61373 | Category 1, Class B |
| Imekadiriwa Kuhimili Volti ya Chini ya Mkondo kwa Muda Mfupi (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
