7999-40821-0330150

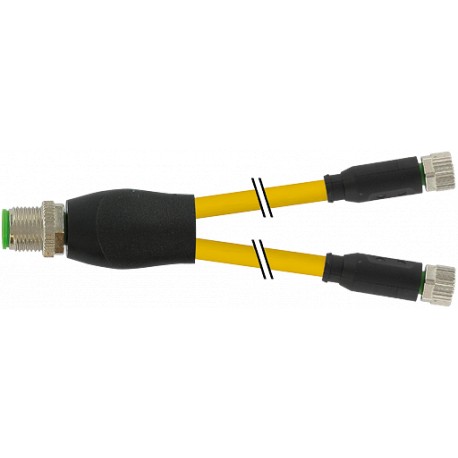

7999-40821-0330150 MURRELEKTRONIK M12 Y-distributor / M8 female 0° PUR 3X0.34 yellow UL/CSA, drag chain 1.5m
$0.00USD
3496 kwenye hisa
Vipimo Muhimu
AWG:similar to AWG 22
EAN:4048879306393
Fomu:40821
Usimbaji:M12, A-coded
Taarifa za Msambazaji
MURRELEKTRONIK
Bidhaa: 57918
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879306393 |
| Fomu | 40821 |
| Usimbaji | M12, A-coded |
| Ngao | no |
| Darasa la mtandaoni | 27279218 |
| Nambari ya Sanaa: | 7999-40821-0330150 |
| Nyenzo | PUR |
| Ø ya Nje | 4.1 mm ±5% |
| Viwango | DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8) |
| Aina ya Kebo | 3 (PUR) |
| Ulinzi | IP67 inserted and tightened (EN 60529) |
| Onyesho la LED | no |
| Rangi ya Jaketi | yellow |
| Idadi ya nguzo | M12, 4-pole – M8, 3-pole |
| Volti ya majaribio | 2 500 V AC |
| Kasi ya msokoto | 35 cycles/min |
| Rangi (koti) | yellow |
| Kundi la nyenzo | IEC 60664-1, category I |
| Kitengo cha ufungashaji | 1 |
| Mkazo wa torsion | ±180°/m |
| Kutengwa kwa waya | PP (br, bl, bk) |
| Kipenyo (kiini) | 3 × 0.34 mm² |
| Nyenzo (waya) | Cu wire, bare |
| Mbinu ya kupachika | inserted, tightened |
| Volti ya kawaida | 300 V AC |
| Kipingamizi (kiini) | max. 57 Ω/km (20 °C) |
| Idhini (kebo) | cRUus (AWM-Style 20549/10493); CE conform |
| Nyenzo ya kufunga | Zinc die casting, matte nickel plated |
| Kufunga milango | Screw thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securing |
| Shahada ya Uchafuzi | 3 |
| Tezi ya kubana | M8 (SW9), M12 (SW13) |
| Nyenzo (gasket) | FKM |
| Nyenzo (koti) | PUR (UL/CSA) |
| Volti ya uendeshaji | max. 60 V AC/DC |
| Nje-Ø (koti) | 4.1 mm ±5% |
| Kiwango cha halijoto | -25...+85 °C, depending on cable quality |
| nchi ya asili | DE |
| Sifa za C-track | 10 Mio. |
| Uzito wa kebo [g/m] | 29,70 |
| Nyenzo (mgusano) | Copper alloy |
| upinzani wa joto | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Radius ya kupinda (imerekebishwa) | 5 × outer Ø |
| Ujenzi (kiini) | 42 × 0.1 mm (multi-strand wire class 6) |
| Volti ya kuongezeka iliyokadiriwa | 1.5 kV |
| upinzani wa kemikali | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bidhaa mbadala: | Product ComparisonY connectorMale straight – females straightM12, 4-pole – M8, 3-poleM12, A-codedArt-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on requestPlastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.FormForm40821CablesNo./diameter of wires3 × 0.34 mm²Wire isolationPP (br, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA)Outer Ø4.1 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification033Cable Type3 (PUR)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]29,70Material (wire)Cu wire, bareResistor (core)max. 57 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)42 × 0.1 mm (multi-strand wire class 6)Diameter (core)3 × 0.34 mm²AWGsimilar to AWG 22Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)70 ±5 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, blStranding combination3 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistantShore hardness (jacket)90 ±5 AOuter-Ø (jacket)4.1 mm ±5%Color (jacket)yellowchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2Nominal voltage300 V ACTest voltage2 500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3 m/sAcceleration (C-track)max. 10 m/s²Torsion stress±180°/mNo. of torsion cyclesmax. 2 Mio. (25 °C)Torsion speed35 cycles/minJacket ColoryellowTechnical DataOperating voltagemax. 60 V AC/DCRated surge voltage1.5 kVOperating current per contactmax. 4 ANo. of polesM12, 4-pole – M8, 3-poleMaterial groupIEC 60664-1, category ICodingM12, A-codedLED displaynoLocking of portsScrew thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securingCompression glandM8 (SW9), M12 (SW13)ProtectionIP67 inserted and tightened (EN 60529)MaterialPURLocking materialZinc die casting, matte nickel platedsuitable for corrugated tube (internal Ø)6.5 mmGeneral dataStandardsDIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8)Mounting methodinserted, tightenedMaterial (contact)Copper alloyMaterial (contact surface)AuMaterial (gasket)FKMPollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879306393eClass27279218Packaging unit1 |
| Pinda radius (inayosogea) | 10 × outer Ø |
| Utambulisho wa kebo | 033 |
| Uwezo wa sasa wa mzigo | to DIN VDE 0298-4 |
| Idadi ya mizunguko ya msokoto | max. 2 Mio. (25 °C) |
| Idadi/kipenyo cha waya | 3 × 0.34 mm² |
| Waya moja Ø (kiini) | 0.1 mm |
| Mchanganyiko wa kukwama | 3 wires twisted |
| nambari ya ushuru wa forodha | 85444290 |
| Kuongeza kasi (C-track) | max. 10 m/s² |
| Kasi ya usafiri (C-track) | max. 3 m/s |
| Ugumu wa pwani (koti) | 90 ±5 A |
| Waya-Ø ikijumuisha kutengwa | 1.25 mm ±5% |
| Rangi/nambari za waya | br, bk, bl |
| Nyenzo (kutengwa kwa waya) | PP |
| Kiwango cha halijoto (kisichobadilika) | -40...+80 °C |
| Nyenzo (uso wa mguso) | Au |
| Sifa ya nyenzo (koti) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Kiwango cha halijoto (kinachoweza kuhamishika) | -25...+80 °C |
| Mkondo wa uendeshaji kwa kila mguso | max. 4 A |
| Umbali wa kuvuka (C-track) | max. 5 m (horizontal) |
| Idadi ya mizunguko ya kupinda (C-track) | max. 10 Mio. (25 °C) |
| Ugumu wa ufuo (kutengwa kwa waya) | 70 ±5 D |
| Sifa ya nyenzo (kutengwa kwa waya) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Inafaa kwa bomba la bati (Ø ya ndani) | 6.5 mm |
Maelezo ya Bidhaa
Y-Distributor M12 male / M8 female 0° A-cod.PUR 3x0.34 ye UL/CSA+drag ch. 1.5m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
